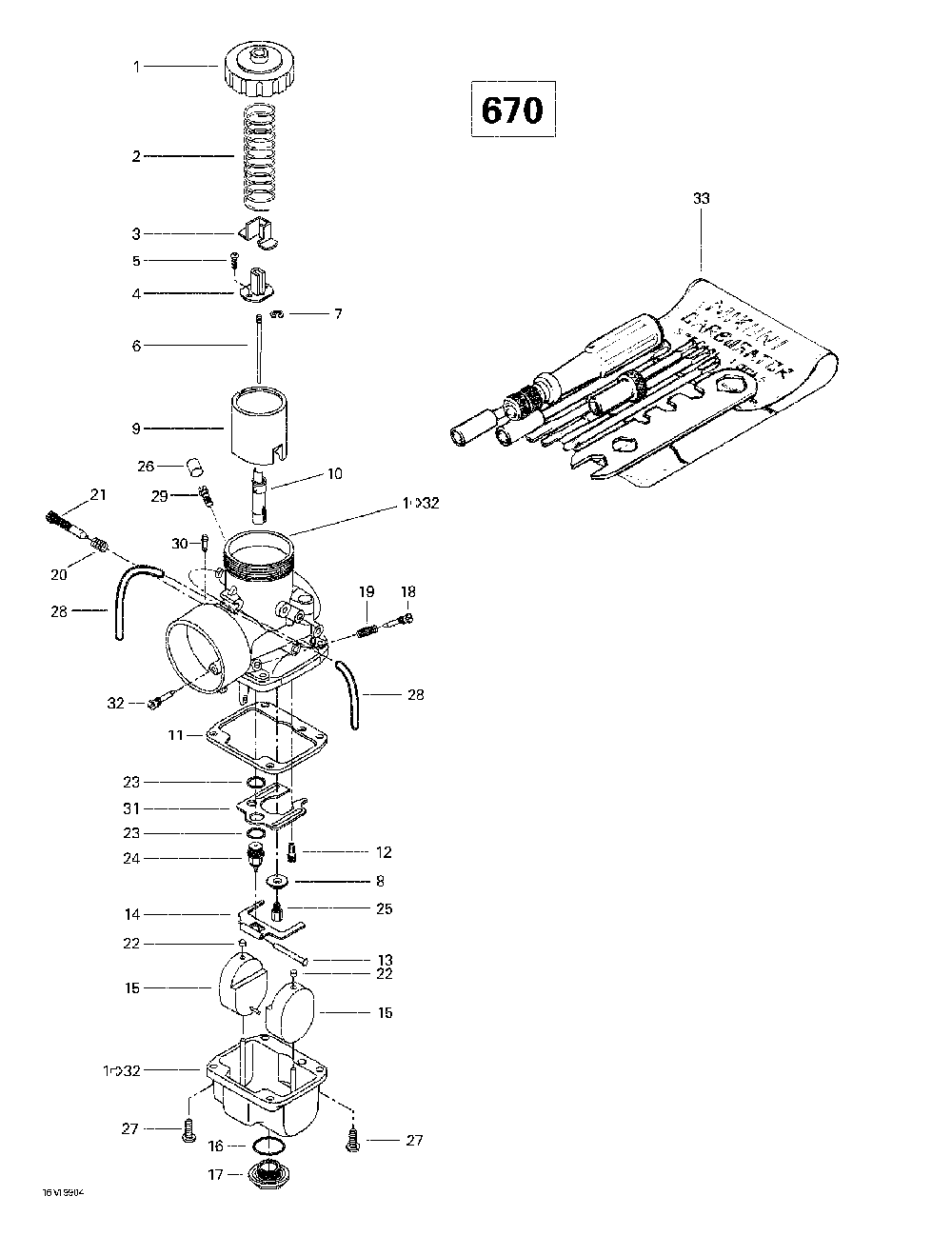

02- carburetors (670)

Ski-Doo (Bombardier) MX Z 500/670 HO
Ski-Doo (Bombardier)
#oem кодцена
1
404126800
Couvercle Carb.*top-mix.chamb. Mx Z 670 Ho.
2
404156500
Ressort *spring Mx Z 670 Ho.
3
404128100
Couvercle *cover Mx Z 670 Ho.
4
404160800
Connecteur *connector Mx Z 670 Ho.
5
404121300
Vis W.rondelle*screw-with Washer Mx Z 670 Ho.
6
404157400
Aiguille *needle Mx Z 670 Ho.
7
404152200
Rondelle E *ring-e Mx Z 670 Ho.
8
404116700
Rondelle *washer Mx Z 670 Ho.
9
404132300
Tiroir Acc.2.5 *piston-val.2.5 Mx Z 670 Ho.
10
404147600
Gicleur Aiguil.*jet Needle Mx Z 670 Ho.
11
404104700
Joint *gasket Mx Z 670 Ho.
12
404113900
Gicleur Ralenti*jet-pilot 55 Mx Z 670 Ho.
13
404103300
Goupille Levier*pin-lever Mx Z 670 Ho.
14
404161823
Levier Flotteur*lever-float Mx Z 670 Ho.
15
404105400
Flotte *float Mx Z 670 Ho.
16
404112800
Rondelle *washer Mx Z 670 Ho.
17
404112900
Vis Bouchon *screw-drain Plug Mx Z 670 Ho.
18
404149000
Vis Air *screw-air Mx Z 670 Ho.
19
404139800
Ressort *spring Mx Z 670 Ho.
20
404101700
Ressort *spring Mx Z 670 Ho.
21
404151900
Vis *screw-adj. Mx Z 670 Ho.
22
404105800
Capuchon *cap Mx Z 670 Ho.
23
404101600
Rondelle Siege *washer-seat Mx Z 670 Ho.
24
404147400
Pointeau Vs 1.5*valve Needle Mx Z 670 Ho.
25
404104900
Gicleur Mj 340 *jet-main 340 Mx Z 670 Ho.
404107800
Gicleur Mj 310 *jet-main 310 Mx Z 670 Ho.
26
404154900
Bouchon *cap Mx Z 670 Ho.
27
404102000
Screw-w/lock *screw-w/lockwasher Mx Z 670 Ho.
28
404161880
Boyau *hose Mx Z 670 Ho.
29
404153400
Raccord *nipple Mx Z 670 Ho.
30
404158900
Filtre *filter Mx Z 670 Ho.
31
404112700
Chicane *baffle Plate Mx Z 670 Ho.
32
404131700
Vis Bouchon *screw-plug Mx Z 670 Ho.
33
404112000
Trousse Outils *tool Kit Mx Z 670 Ho.
