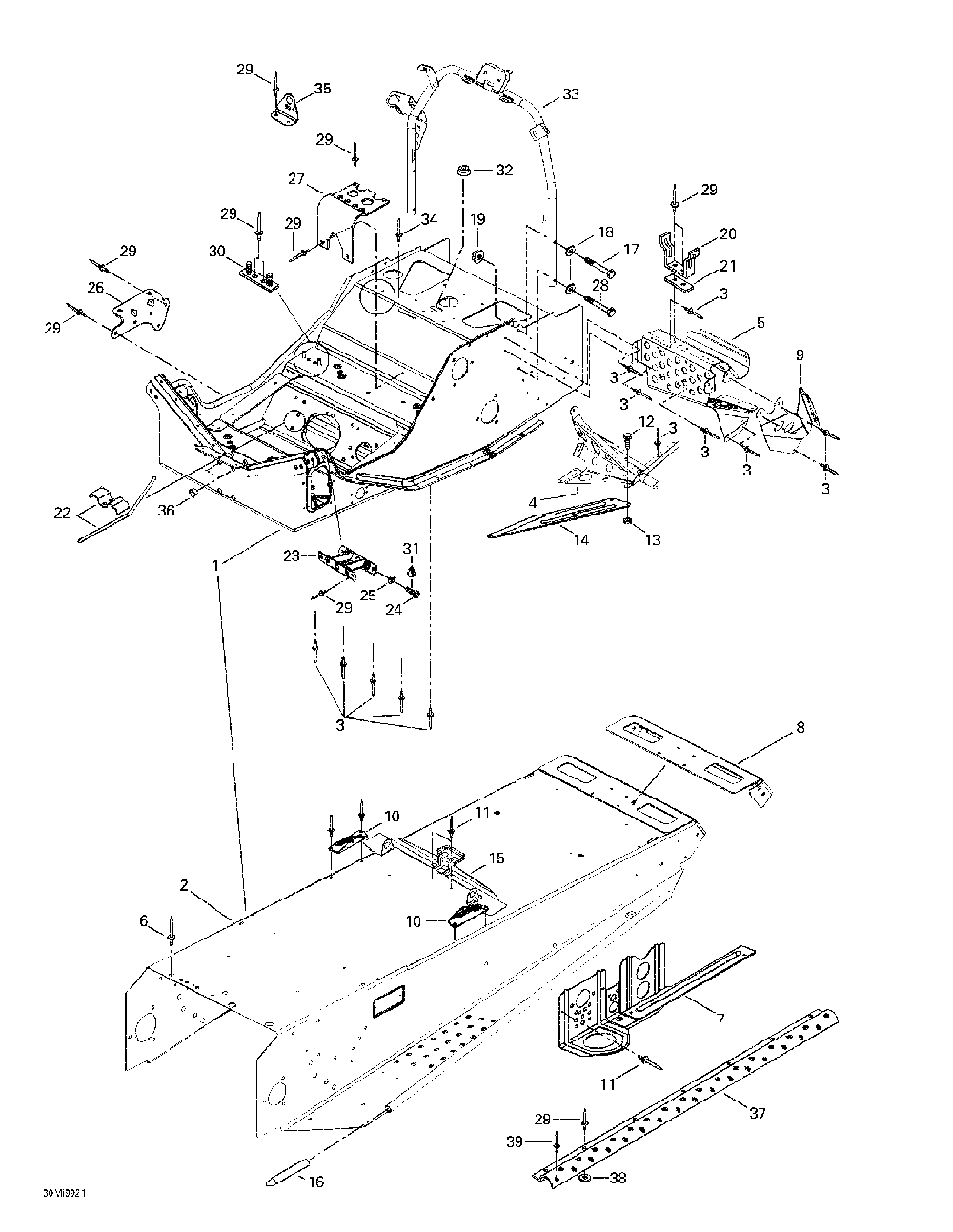

Рама

Ski-Doo (Bombardier) MX Z 670 HO T.H.
Ski-Doo (Bombardier)
#oem кодцена
3
390402200
Заклепка 3/16
4
518320507
Support Gauche *lh.support
518320506
Support Droit *rh.support
5
518321417
Repose-pied Dr.*rh.footrest
518321418
Repose-pied Ga.*footrest-lh
6
390911200
Rivet Chobert *rivet
7
518321448
Attache Arr.ga.*bracket-lh
518321447
Attache Arr.dr.*bracket-rh
8
518321301
Capuchon Arr. *cap-rear
9
518308714
Plaque Sup. Ga.*plate-upper Lh
518308715
Plaque Sup. Dr.*plate-upper Rh
10
518304747
Attache Droite *bracket-rh
518304748
Attache Gauche *bracket-lh
11
390402400
Заклепка 3/16
12
207151644
Винт
13
233251414
Гайка
14
518321698
Plaque Renf.dr.*plate-reinf.rh
518321959
Plaque Renf.ga.*plate-reinf.lh
15
518317506
Attache Siege *bracket-seat
16
518304746
Renf.marche-pie*reinf.-foot.
17
207063544
Винт
18
234061410
Шайба
19
233261414
Гайка
20
518202100
Attache Gard.co*brkt-guard Belt
21
518207500
Renfort *reinforcement
22
518316712
Guide Corde Sou*guide-rope Weld.
23
518304741
Plaque Renf.sou*plate-reinf.weld
24
207182044
Винт
25
234181401
Шайба
26
518322635
Support Silenc.*support-muffler
27
518310400
Supp.silenc.adm*supp-air Intake
28
207064044
Винт
30
518315300
Plaque Supp.sou*plate-supp.weld
31
293800005
Смазка Loctite 271
32
414859400
Крышка
33
518321428
Supp.guidon *supp-handle
35
518310206
Attache Soup.ar*brkt.-valve
36
293450166
Вставка
37
518319402
Bande Anti-rag.*strip-protect.
38
517124300
Шайба
39
390402300
Заклепка 3/16
29
390402200
Заклепка 3/16
34
390402400
Заклепка 3/16
