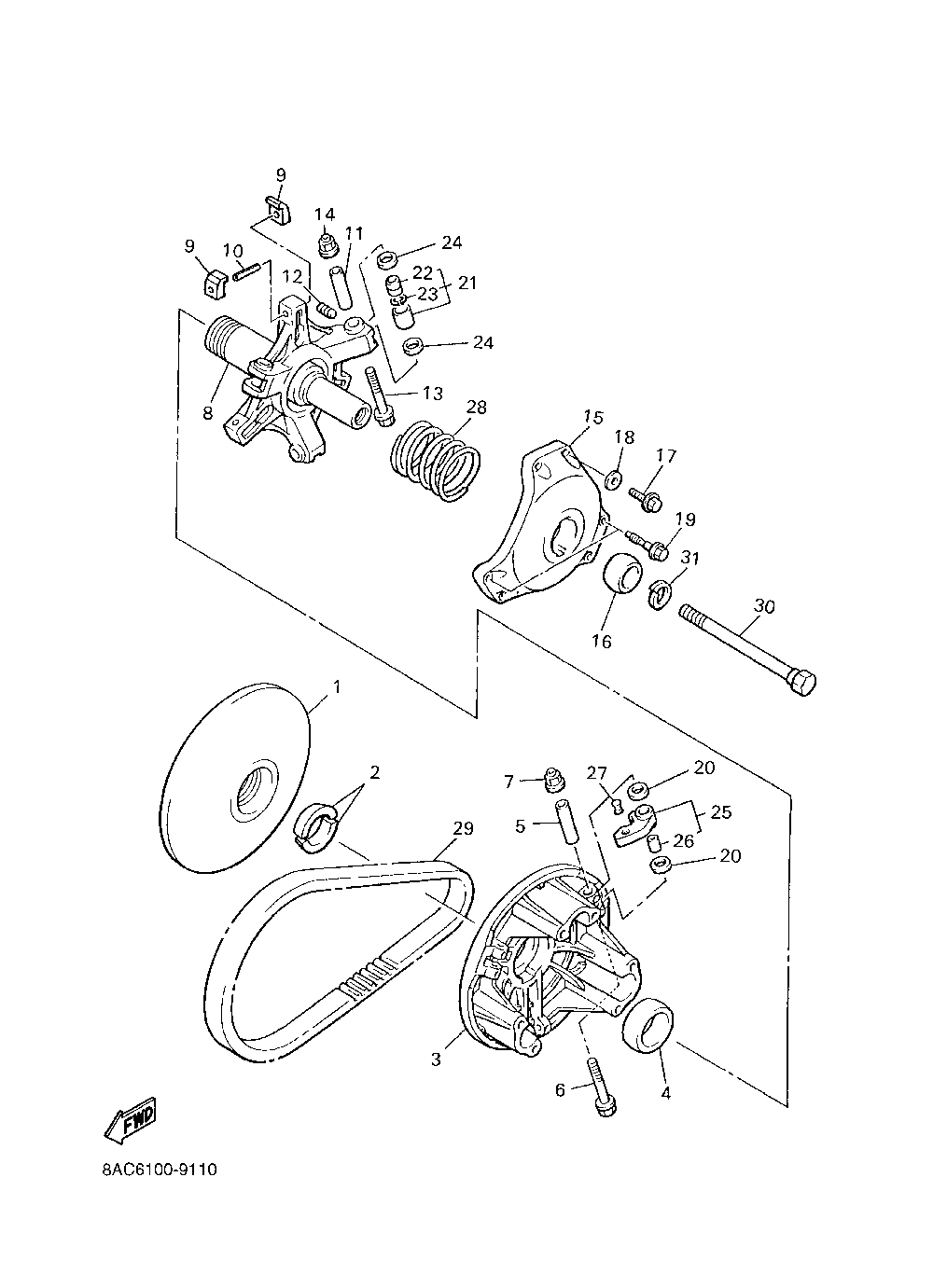

Вариатор

Yamaha VK 540 III

Вариатор

#

oem код

название

цена

1

88R-17611-02-00

Sheave, Pri Fixed (usa)

Sheave, Pri Fixed (usa)

2

8V0-17639-00-00

Stopper (usa)

Stopper (usa)

3

89F-17621-00-00

Sheave, Pri Sliding (usa)

Sheave, Pri Sliding (usa)

4

Bush, Spec'l Shape (usa)

Bush, Spec'l Shape (usa)

5

Collar (usa)

Collar (usa)

6

Bolt, Washer Based (usa)

Bolt, Washer Based (usa)

7

Nut, U Flange (usa)

Nut, U Flange (usa)

8

8BW-17640-11-00

Spider (usa)

Spider (usa)

9

8BW-17653-00-00

Slider (usa)

Slider (usa)

10

Pin, Spring (usa)

Pin, Spring (usa)

12

Bolt, Set (usa)

Bolt, Set (usa)

15

88R-17631-01-00

Cap (usa)

Cap (usa)

16

Bush, Spec'l Shape (usa)

Bush, Spec'l Shape (usa)

17

Bolt, Hexagon (usa)

Bolt, Hexagon (usa)

18

Washer, Plate (6ta) (usa)

Washer, Plate (6ta) (usa)

19

Bolt (usa)

Bolt (usa)

20

Washer, Plate (usa)

Washer, Plate (usa)

21

88R-17624-01-00

Roller, Comp (usa)

Roller, Comp (usa)

22

Bush (usa)

Bush (usa)

23

Circlip (usa)

Circlip (usa)

25

8AT-17605-00-00

Weight Comp. (usa)

Weight Comp. (usa)

26

Bush, Spec'l Nylon Ve (usa)

Bush, Spec'l Nylon Ve (usa)

27

Rivet, Cntrsnk 11.3mm Ap (usa)

Rivet, Cntrsnk 11.3mm Ap (usa)

27

Rivet, Cntrsnk 13.3mm Std (usa)

Rivet, Cntrsnk 13.3mm Std (usa)

28

Spring, Compression Std (sl-bl-sl) (usa)

Spring, Compression Std (sl-bl-sl) (usa)

28

Spring, Compression Ap (blue) (usa)

Spring, Compression Ap (blue) (usa)

28

Spring, Compression Ap (yellow) (usa)

Spring, Compression Ap (yellow) (usa)

29

89L-17641-01-00

V-belt (usa)

V-belt (usa)

30

8V0-17647-00-00

Bolt (l=156; 5mm) (usa)

Bolt (l=156; 5mm) (usa)

31

Washer(jn5) (usa)

Washer(jn5) (usa)

11

Collar (usa)

Collar (usa)

13

Bolt, Washer Based (usa)

Bolt, Washer Based (usa)

14

Nut, U Flange (usa)

Nut, U Flange (usa)

24

Washer, Plate (usa)

Washer, Plate (usa)
