Коленчатый вал и Поршень Запчасти для снегоходов Yamaha VK 540 III (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

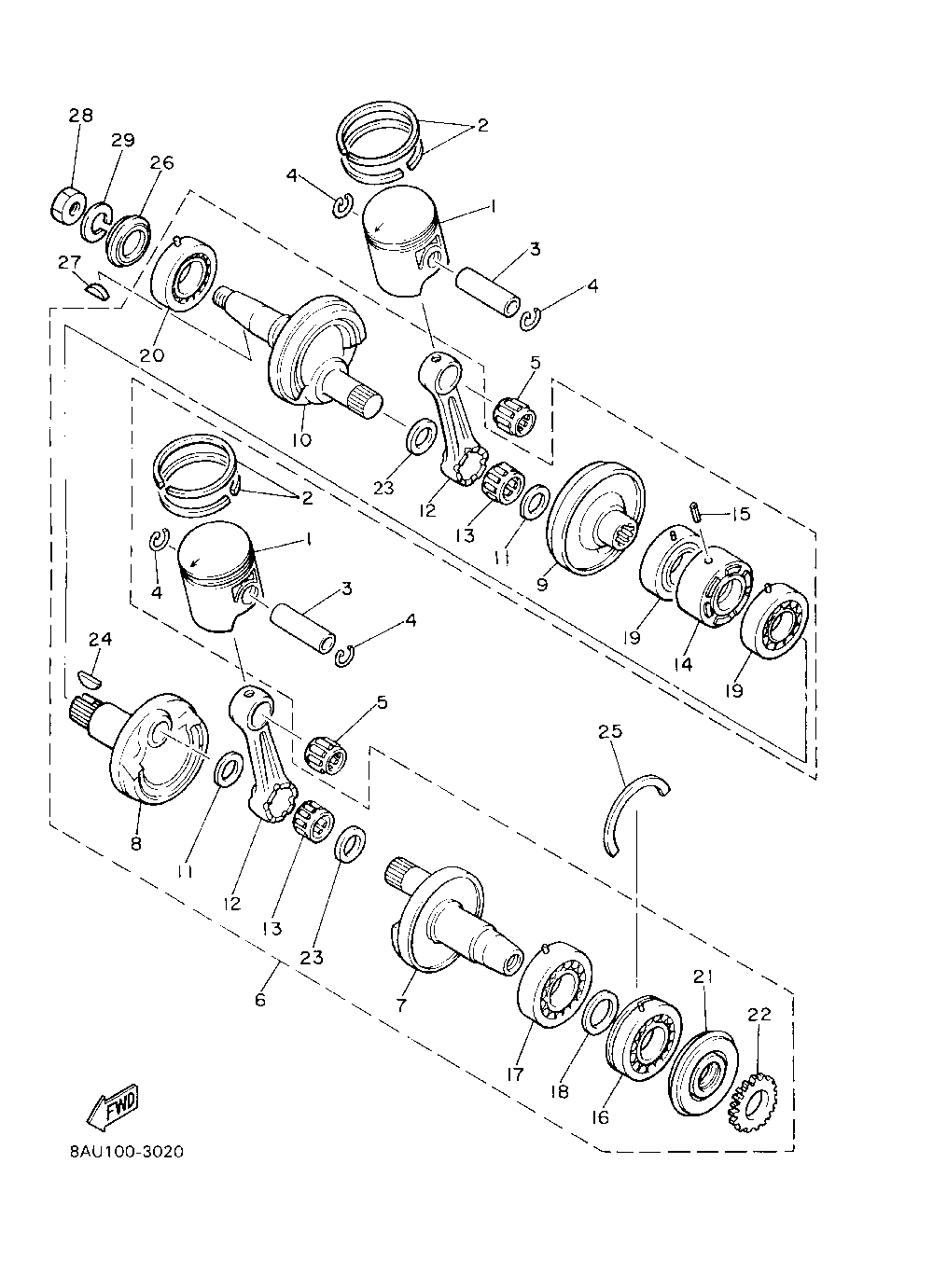

Коленчатый вал и Поршень

Yamaha VK 540 III

Коленчатый вал и Поршень

#

oem код

название

цена

1

8R6-11631-00-95

Piston Std (usa)

Piston Std (usa)

1

8R6-11635-00-00

Piston 1 O/s 0.25 Ap (usa)

Piston 1 O/s 0.25 Ap (usa)

1

8R6-11636-00-00

Piston 2 O/s 0.50 Ap (usa)

Piston 2 O/s 0.50 Ap (usa)

2

8R6-11601-00-00

Piston Ringset Std (usa)

Piston Ringset Std (usa)

2

8R6-11601-10-00

Piston Ringset 1st Ap (usa)

Piston Ringset 1st Ap (usa)

2

8R6-11601-20-00

Piston Ringset 2nd Ap (usa)

Piston Ringset 2nd Ap (usa)

3

8H8-11633-00-00

Pin, Piston (usa)

Pin, Piston (usa)

4

Circlip, Inner (usa)

Circlip, Inner (usa)

5

Bearing, Cyl.#10 (usa)

Bearing, Cyl.#10 (usa)

6

8AT-11400-01-00

Crankshaft Assy (usa)

Crankshaft Assy (usa)

7

83R-11412-01-00

Crank 1 (usa)

Crank 1 (usa)

8

8H8-11422-01-00

Crank 2 (usa)

Crank 2 (usa)

9

8H8-11432-01-00

Crank 3 (usa)

Crank 3 (usa)

10

8AT-11442-00-00

Crank 4 (usa)

Crank 4 (usa)

11

Washer, Spec'l Shap (usa)

Washer, Spec'l Shap (usa)

12

8R6-11651-00-00

Rod, Connecting (usa)

Rod, Connecting (usa)

13

Bearing, Cyl.#10 (usa)

Bearing, Cyl.#10 (usa)

14

8H8-11515-00-00

Seal, Labyrinth 1 (usa)

Seal, Labyrinth 1 (usa)

15

Pin, Spring (usa)

Pin, Spring (usa)

16

Bearing (usa)

Bearing (usa)

18

Washer, Plate (usa)

Washer, Plate (usa)

19

Bearing (usa)

Bearing (usa)

21

Oil Seal, Sw-type (usa)

Oil Seal, Sw-type (usa)

22

8K2-13178-00-00

Gear, Pump Drive (usa)

Gear, Pump Drive (usa)

23

8A7-11685-00-00

Washer, Crank Pin (usa)

Washer, Crank Pin (usa)

24

Key, Woodruff (usa)

Key, Woodruff (usa)

25

Circlip, Outer (usa)

Circlip, Outer (usa)

26

Oil Seal, Sw-type (usa)

Oil Seal, Sw-type (usa)

28

Nut (usa)

Nut (usa)

29

Washer(jn5) (usa)

Washer(jn5) (usa)

17

Bearing (usa)

Bearing (usa)

20

Bearing (usa)

Bearing (usa)

27

Key, Woodruff (usa)

Key, Woodruff (usa)
