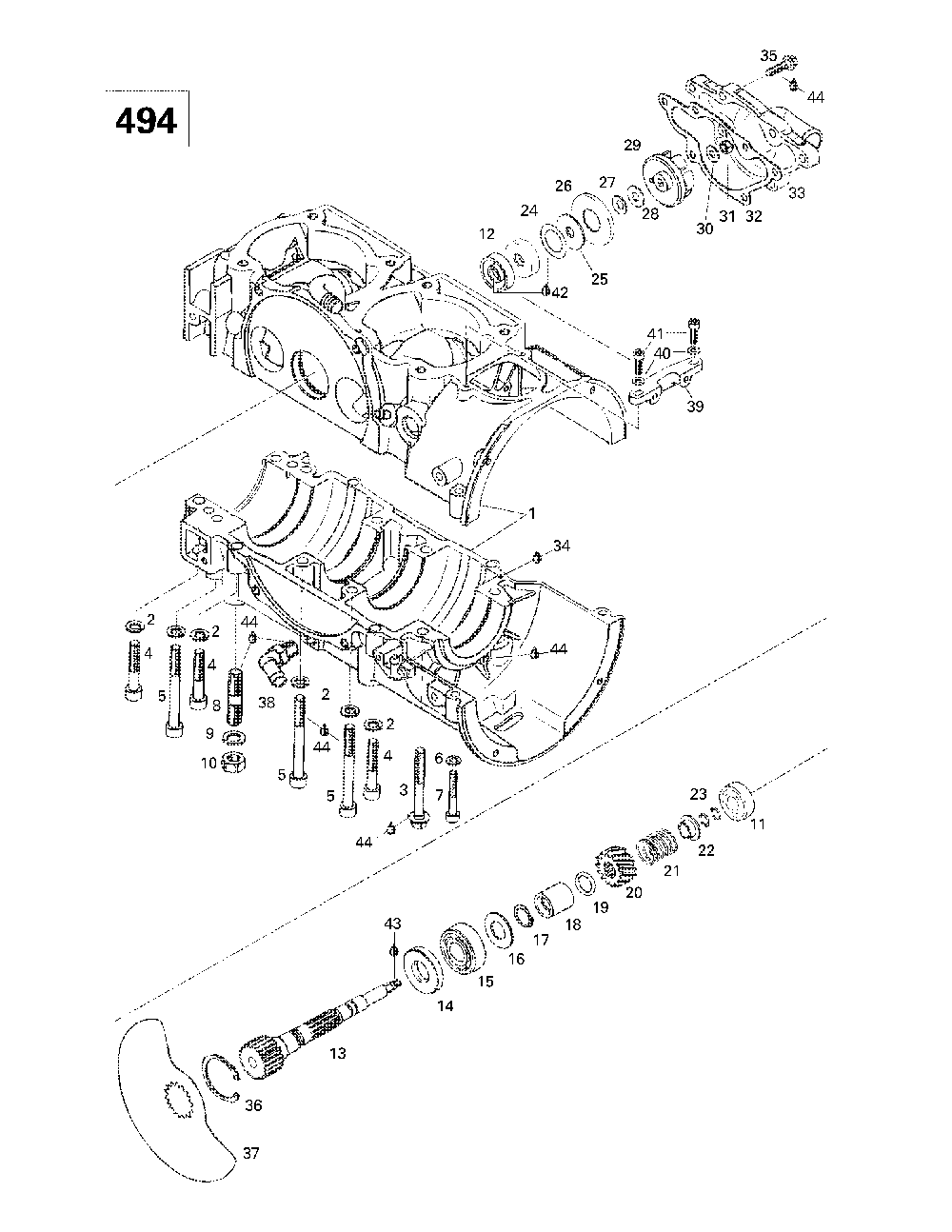

Картер, пластинчатый клапан, водяной насоси (494)

Ski-Doo (Bombardier) Formula 583 Deluxe
Ski-Doo (Bombardier)
#oem кодцена
1
420888011
Carter Moteur *crankcase-assy Includes 1 - 7. Formula 500. Formula 500 Deluxe.
2
420945752
Washer-lock Din.128 Formula 500. Formula 500 Deluxe.
3
420841306
Screw-hex Collar M8x65 Sw 11 Formula 500. Formula 500 Deluxe.
4
420841561
Screw-allen M8 X 45 Formula 500. Formula 500 Deluxe.
5
420841831
Screw-allen M8x75 Formula 500. Formula 500 Deluxe.
6
420945751
Washer-lock Din.128 Formula 500. Formula 500 Deluxe.
7
420241816
Screw-allen M6 X 40 Formula 500. Formula 500 Deluxe.
8
420940190
Stud-m10 X 29/20 Formula 500. Formula 500 Deluxe.
9
420945753
Rondelle-frein *washer-lock#10 Formula 500. Formula 500 Deluxe.
10
232006414
Nut-hexagonal Din.934 Formula 500. Formula 500 Deluxe.
11
420932797
Roulement Bille*ball Bearing Formula 500. Formula 500 Deluxe.
12
420850711
Anneau Etanche *seal-oil Formula 500. Formula 500 Deluxe.
13
420837243
Arbre Valve Rot*shaft-rotary Valve Formula 500. Formula 500 Deluxe.
14
420930580
Anneau Etanche *seal-oil Formula 500. Formula 500 Deluxe.
15
293350051
Roulement Bille*ball Bearing Formula 500. Formula 500 Deluxe.
16
420227439
Cale Epaisseur *shim Formula 500. Formula 500 Deluxe.
17
420845450
Bague D Arret *ring-lock Formula 500. Formula 500 Deluxe.
18
420847282
Douille Ecart. *bushing-spacer Formula 500. Formula 500 Deluxe.
19
293300024
Joint Torique *o-ring Formula 500. Formula 500 Deluxe.
20
420935735
Roue Dentee 14d*sprocket 14th Formula 500. Formula 500 Deluxe.
21
420938810
Ressort *spring Formula 500. Formula 500 Deluxe.
22
420827430
Siege Ressort *seat-spring Formula 500. Formula 500 Deluxe.
23
420845160
Circlip *circlip Formula 500. Formula 500 Deluxe.
24
420944462
Cale Epaisseur *shim Formula 500. Formula 500 Deluxe.
25
420850890
Rondelle *washer-rubber Formula 500. Formula 500 Deluxe.
26
420827970
Plaque *plate Formula 500. Formula 500 Deluxe.
27
420227945
Rondelle *washer Formula 500. Formula 500 Deluxe.
28
420227155
Rondelle *washer Formula 500. Formula 500 Deluxe.
29
420922036
Turbine A Eau *impeller-water Formula 500. Formula 500 Deluxe.
30
224061121
Washer-flat Formula 500. Formula 500 Deluxe.
31
420842042
Ecrou M6 *nut-locking M6 Formula 500. Formula 500 Deluxe.
32
420931355
Joint *gasket Formula 500. Formula 500 Deluxe.
33
420922551
Log.pompe Eau *hous-waterpump Formula 500. Formula 500 Deluxe.
35
420240031
Screw-hex.m6 X 25 Formula 500. Formula 500 Deluxe.
36
420845260
Bague D Arret *ring-lock Formula 500. Formula 500 Deluxe.
37
420924502
Valve Rotative *valve-rotary Formula 500. Formula 500 Deluxe.
38
420922245
Tube Angulaire *tube-angular Formula 500. Formula 500 Deluxe.
39
420851280
Fixation *fixation Formula 500. Formula 500 Deluxe.
40
420827800
Rondelle *washer Formula 500. Formula 500 Deluxe.
41
420240181
Screw-allen M5 X 20 Formula 500. Formula 500 Deluxe.
42
413707000
Dow Corning 111*dow Corning 111 Formula 500. Formula 500 Deluxe.
43
413711400
Loctite 648 *loctite-648 Formula 500. Formula 500 Deluxe.
44
293800060
Loctite 243 *loctite-243 Formula 500. Formula 500 Deluxe.
