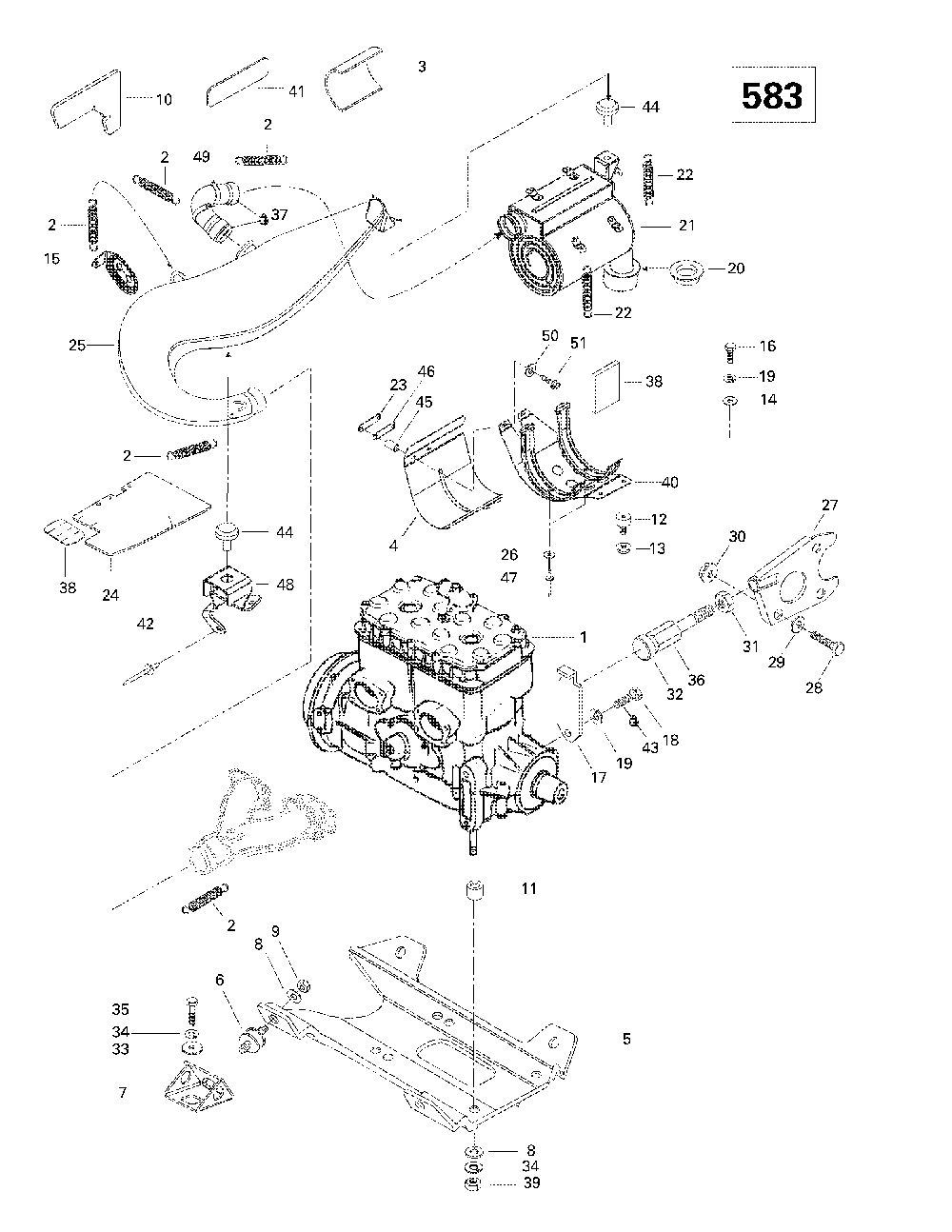

Крепление двигателя и глушитель (583)

Ski-Doo (Bombardier) Formula 583 Deluxe
Ski-Doo (Bombardier)
#oem кодцена
2
415107100
Ressort *spring Formula Z 583. Formula 583 Deluxe.
3
414746400
Feuille Reflect*sheet-reflect. Formula Z 583. Formula 583 Deluxe.
4
514044300
Deflec.chaleur *deflector-heat Formula Z 583. Formula 583 Deluxe.
5
512054400
Socle *support-engine Formula Z 583. Formula 583 Deluxe.
6
570128700
Tampon Ancrage *mount-rubber Formula Z 583. Formula 583 Deluxe.
7
512050900
Supp.moteur Sou*supp-engine Weld Formula Z 583. Formula 583 Deluxe.
8
234001410
0asher-flat Din.125a Formula Z 583. Formula 583 Deluxe.
9
233601416
Nut-locking Elastic Din.982 Formula Z 583. Formula 583 Deluxe.
10
415014900
Feuille Reflect*sheet-reflect Formula Z 583. Formula 583 Deluxe.
11
503128100
Entretoise *spacer Formula Z 583. Formula 583 Deluxe.
12
514052743
Tampon Ancrage *mount-rubber Formula Z 583. Formula 583 Deluxe.
13
233281414
Nut-flange Elastic Din.6926 Formula Z 583. Formula 583 Deluxe.
14
234081410
Washer-flat Din.125a Formula Z 583. Formula 583 Deluxe.
15
514045100
Attache Tuyau *bracket-pipe Formula Z 583. Formula 583 Deluxe.
16
222081265
Screw-hex.cap Din.933 Formula Z 583. Formula 583 Deluxe.
17
512049100
Plaque Butee *plate Stopper Formula Z 583. Formula 583 Deluxe.
18
207181644
Screw-hex.cap Din.933 Formula Z 583. Formula 583 Deluxe.
19
234181401
Washer-lock Din.127b Formula Z 583. Formula 583 Deluxe.
20
570027300
Rondelle Echapp*grommet-exhaus Formula Z 583. Formula 583 Deluxe.
21
514044400
Silenc.echap.so*muffler-weld Formula Z 583. Formula 583 Deluxe.
22
414851600
Ressort *spring Formula Z 583. Formula 583 Deluxe.
23
517267100
Attache Lateral*bracket-side Formula Z 583. Formula 583 Deluxe.
24
415049500
Feuille Reflect*sheet-reflect. Formula Z 583. Formula 583 Deluxe.
25
514046500
Tuyau Echapp.as*pipe-tuned Assy Formula Z 583. Formula 583 Deluxe.
26
517124300
Rondelle *washer Formula Z 583. Formula 583 Deluxe.
27
512055600
Plaque App.soud*plate-weld Formula Z 583. Formula 583 Deluxe.
28
207182544
Screw-hex.cap Din.933 Formula Z 583. Formula 583 Deluxe.
30
232581414
Nut-stop Elastic Din.985 Formula Z 583. Formula 583 Deluxe.
31
732610019
Nut-jam Hexagonal Rh. Formula Z 583. Formula 583 Deluxe.
32
512059056
Butee *stopper Formula Z 583. Formula 583 Deluxe.
32
512059057
Rondelle *washer Formula Z 583. Formula 583 Deluxe.
33
512056700
Rondelle-frein *washer-lock Formula Z 583. Formula 583 Deluxe.
34
234100602
Washer-lock Spring Din.128a-a2 Formula Z 583. Formula 583 Deluxe.
35
207102544
Screw-hex.cap Iso.4017 Formula Z 583. Formula 583 Deluxe.
36
512052400
Vis De Butee *screw-stopper Formula Z 583. Formula 583 Deluxe.
37
293800090
Enduit Etanche *sealant Formula Z 583. Formula 583 Deluxe.
38
414706200
Plaque-reflexio*plate-reflexio Formula Z 583. Formula 583 Deluxe.
39
232006414
Nut-hexagonal Din.934 Formula Z 583. Formula 583 Deluxe.
40
514044200
Support Soude *support-weld. Formula Z 583. Formula 583 Deluxe.
41
415049100
Feuille Reflect*sheet-reflect Formula Z 583. Formula 583 Deluxe.
42
390906800
Rivet-pop 3/16 *rivet-pop 3/16 Formula Z 583. Formula 583 Deluxe.
43
293800005
Loctite 271 *loctite-271 Formula Z 583. Formula 583 Deluxe.
44
514053654
Butoir Caout. *bumper Rubber Formula Z 583. Formula 583 Deluxe.
45
570049300
Entretoise Caou*spacer-rubber Formula Z 583. Formula 583 Deluxe.
46
514045200
Renfort *reinf. Formula Z 583. Formula 583 Deluxe.
47
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Formula Z 583. Formula 583 Deluxe.
48
514044500
Support Tuy.sou*support-pipe Weld Formula Z 583. Formula 583 Deluxe.
49
514048300
Tuy.sortie Soud*pipe-tail Weld Formula Z 583.
514044700
Tuy.sortie Soud*pipe-tail Weld Formula 583 Deluxe.
50
234061410
Washer-flat M6 Din.125a Formula Z 583. Formula 583 Deluxe.
51
210263080
Screw-forming Hex.hd.fl.gm6174m Formula Z 583. Formula 583 Deluxe.
29
234081410
Washer-flat Din.125a Formula Z 583. Formula 583 Deluxe.
