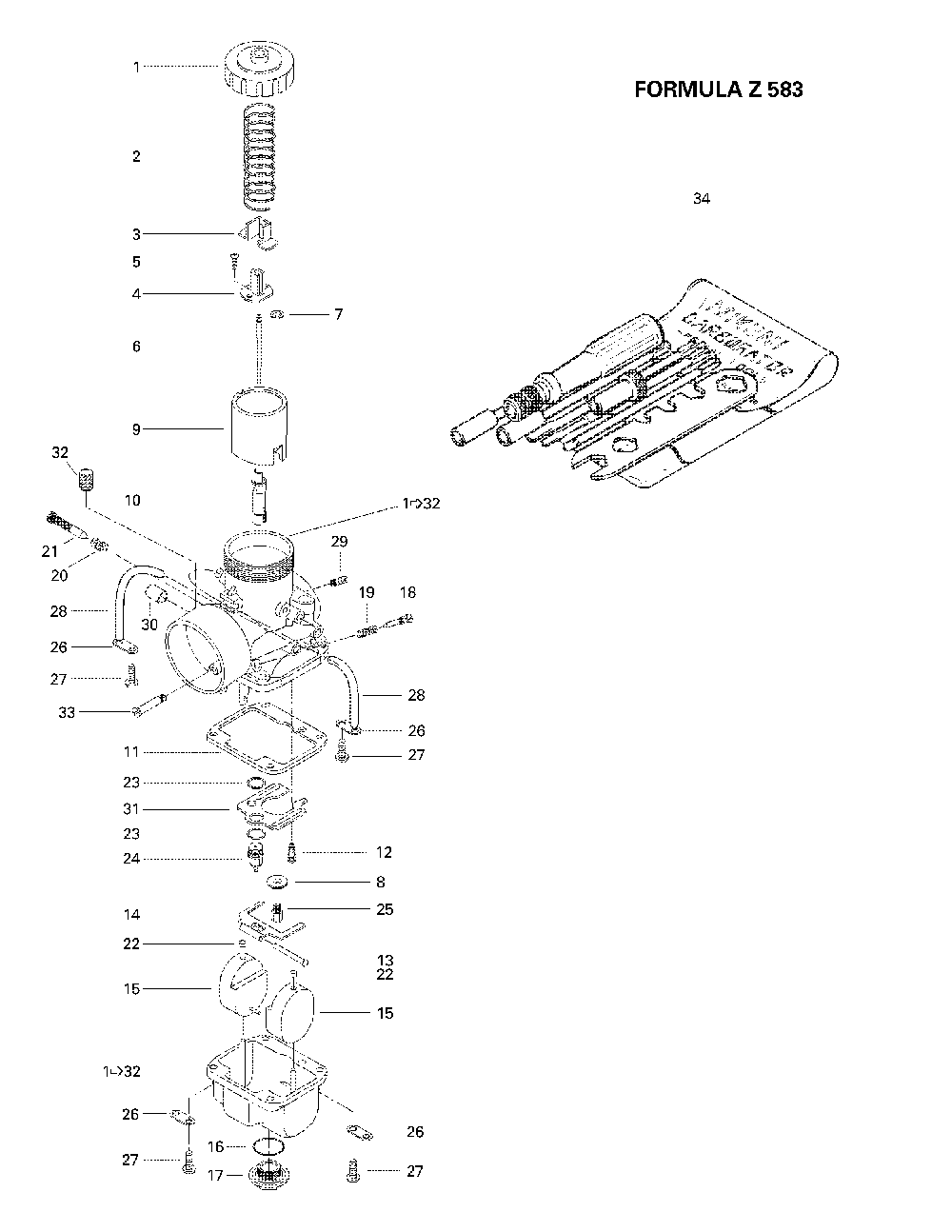

Карбюратор - 2

Ski-Doo (Bombardier) Formula 583 Deluxe
Ski-Doo (Bombardier)
#oem кодцена
1
403136100
Carb.vm-40 *carb-vm-40 Includes 1 - 33. Formula Z 583.
403136200
Carb.vm-40 *carb-vm-40 Formula Z 583.
1
404126800
Couvercle Carb.*top-mix.chamb. Formula Z 583.
2
404156500
Ressort *spring Formula Z 583.
3
404128100
Couvercle *cover Formula Z 583.
4
404160800
Connecteur *connector Formula Z 583.
5
404121300
Vis W.rondelle*screw-with Washer Formula Z 583.
6
404157400
Aiguille *needle Formula Z 583.
7
404152200
Rondelle E *ring-e Formula Z 583.
8
404116700
Rondelle *washer Formula Z 583.
9
404132300
Tiroir Acc.2.5 *piston-val.2.5 Formula Z 583.
10
404148300
Gicleur Aiguil.*jet Needle Formula Z 583.
11
404104700
Joint *gasket Formula Z 583.
12
404121000
Gicleur Ralenti*jet-pilot 60 Formula Z 583.
13
404103300
Goupille Levier*pin-lever Formula Z 583.
14
404105000
Levier Flotteur*lever-float Formula Z 583.
15
404105400
Flotte *float Formula Z 583.
16
404112800
Rondelle *washer Formula Z 583.
17
404112900
Vis Bouchon *screw-drain Plug Formula Z 583.
18
404149000
Vis Air *screw-air Formula Z 583.
19
404139800
Ressort *spring Formula Z 583.
20
404101700
Ressort *spring Formula Z 583.
21
404125200
Vis Etrangleur*screw-throttle Formula Z 583.
22
404105800
Capuchon *cap Formula Z 583.
23
404101600
Rondelle Siege *washer-seat Formula Z 583.
24
404147400
Pointeau Vs 1.5*valve Needle Formula 500. Formula 583 Deluxe.
25
404100500
Gicleur Mj 280 *jet-main 280 Formula Z 583.
404100600
Gicleur Mj 260 *jet-main 260 Formula Z 583.
26
404103000
Plaque *plate Formula Z 583.
27
404102000
Screw-w/lock *screw-w/lockwasher Formula Z 583.
28
404109800
Tuyau Aeration *tube-air Vent Formula Z 583.
29
404153400
Raccord *nipple Formula Z 583.
30
270500095
Capuchon Obtur.*cap-closure Formula Z 583.
31
404112700
Chicane *baffle Plate Formula Z 583.
32
404158900
Filtre *filter Formula Z 583.
33
404131700
Vis Bouchon *screw-plug Formula Z 583.
34
404112000
Trousse Outils *tool Kit Formula Z 583.
