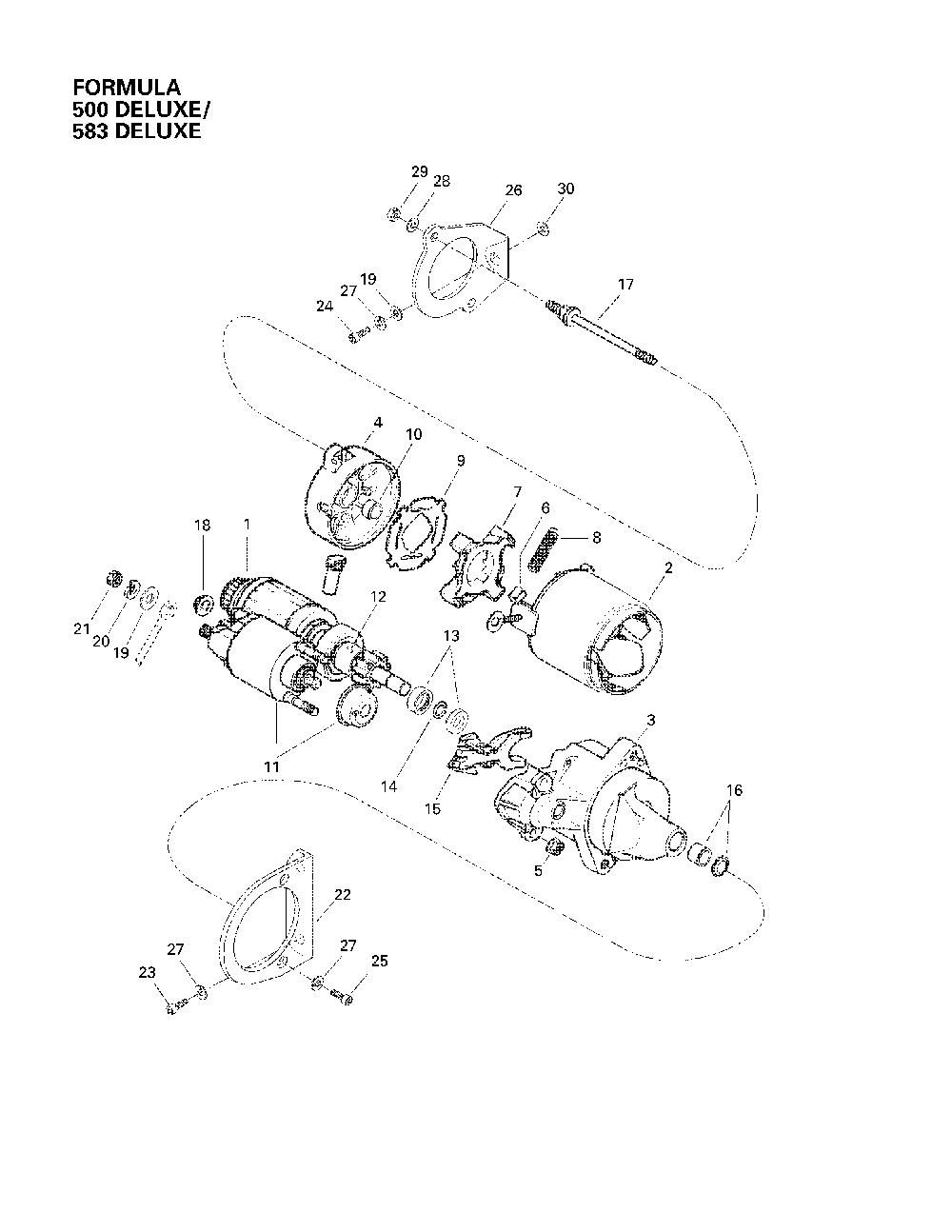

Стартер электрический

Ski-Doo (Bombardier) Formula 583 Deluxe
Ski-Doo (Bombardier)
#oem кодцена
1
410212400
Demarreur *starter Includes 1 - 18. Formula 500 Deluxe. Formula 583 Deluxe.
1
410210200
Armature Ass. *armature-assy. Formula 500 Deluxe. Formula 583 Deluxe.
2
410209500
Boitier Demar. *housing-starter Formula 500 Deluxe. Formula 583 Deluxe.
3
410210800
Boitier *housing Formula 500 Deluxe. Formula 583 Deluxe.
5
410211200
Ecrou *nut Formula 500 Deluxe. Formula 583 Deluxe.
6
410209600
Brosse*starter Brush Formula 500 Deluxe. Formula 583 Deluxe.
7
410209700
Porte Balai *holder-brush Formula 500 Deluxe. Formula 583 Deluxe.
8
410209800
Ressort Balai *spring-brush Formula 500 Deluxe. Formula 583 Deluxe.
9
410209900
Isolant *insulator Formula 500 Deluxe. Formula 583 Deluxe.
10
410210100
Douille Brass *bushing-brass Formula 500 Deluxe. Formula 583 Deluxe.
11
410210300
Inter.ass. *switch-assy. Formula 500 Deluxe. Formula 583 Deluxe.
12
410210400
Embrayage Demar*clutch-starter Formula 500 Deluxe. Formula 583 Deluxe.
13
410212500
Ecrou *nut Formula 500 Deluxe. Formula 583 Deluxe.
14
410212600
Circlip *circlip Formula 500 Deluxe. Formula 583 Deluxe.
15
410210700
Levier *lever Formula 500 Deluxe. Formula 583 Deluxe.
16
410210900
Douille Brass *bushing-brass Formula 500 Deluxe. Formula 583 Deluxe.
17
410212000
Boulon *bolt Formula 500 Deluxe. Formula 583 Deluxe.
18
410211100
Ecrou *nut Formula 500 Deluxe. Formula 583 Deluxe.
19
234081410
Washer-flat Din.125a Formula 500 Deluxe. Formula 583 Deluxe.
20
420945752
Washer-lock Din.128 Formula 500 Deluxe. Formula 583 Deluxe.
21
232081414
Nut-hexagonal Din.934 Formula 500 Deluxe. Formula 583 Deluxe.
22
420853730
Supp.demar.pto.*supp.-star.pto Formula 500 Deluxe. Formula 583 Deluxe.
23
205082044
Screw-socket Hd.din.912 Formula 500 Deluxe. Formula 583 Deluxe.
25
205082544
Screw-socket Hd.din.912 Formula 500 Deluxe. Formula 583 Deluxe.
26
420953011
Supp.demar.mag.*supp.-star.mag Formula 500 Deluxe. Formula 583 Deluxe.
27
234181401
Washer-lock Din.127b Formula 500 Deluxe. Formula 583 Deluxe.
28
391301700
Rondelle *washer Formula 500 Deluxe. Formula 583 Deluxe.
29
232551414
Nut-stop Elastic Din.985 Formula 500 Deluxe. Formula 583 Deluxe.
30
503007900
Rondelle Trempe*washer-hard Formula 500 Deluxe. Formula 583 Deluxe.
24
205082044
Screw-socket Hd.din.912 Formula 500 Deluxe. Formula 583 Deluxe.
