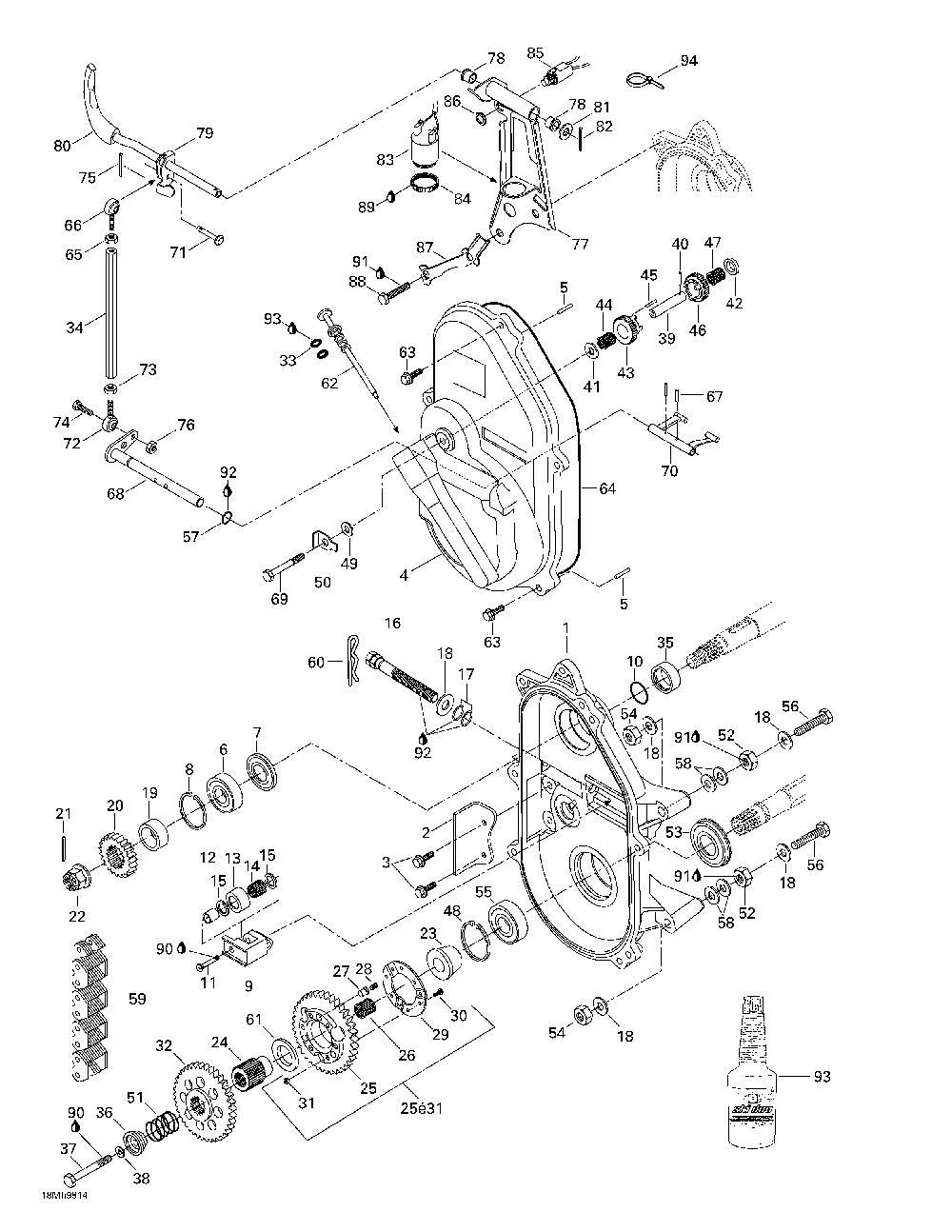

Трансмиссия

Ski-Doo (Bombardier) Formula III 600 R/700 R
Ski-Doo (Bombardier)
#oem кодцена
1
504146600
Carter Chaine U*case-chain Mach. Formula Iii 600 R. Formula Iii 700 R.
2
504152036
Glissiere Chain*chain-slider Formula Iii 600 R. Formula Iii 700 R.
3
210251180
Screw-forming Hex.hd.fl.gm6174m Formula Iii 600 R. Formula Iii 700 R.
4
504146800
Couvercle Usine*cover-mach. Formula Iii 600 R. Formula Iii 700 R.
5
732620001
Goupille Cyl. *pin-cylinder Formula Iii 600 R. Formula Iii 700 R.
6
504152006
Roulement Bille*ball Bearing Formula Iii 600 R. Formula Iii 700 R.
7
415049300
Joint Etanche *oil Seal Formula Iii 600 R. Formula Iii 700 R.
8
371901700
Circlip Int. *circlip-int. Formula Iii 600 R. Formula Iii 700 R.
9
504081000
Tendeur Usine *tensioner-mach Formula Iii 600 R. Formula Iii 700 R.
10
414876700
Joint Torique *o-ring Formula Iii 600 R. Formula Iii 700 R.
11
732601144
Screw Formula Iii 600 R. Formula Iii 700 R.
12
504080200
Entretoise *spacer Formula Iii 600 R. Formula Iii 700 R.
13
414531300
Rouleau *roller Formula Iii 600 R. Formula Iii 700 R.
14
405403000
Roul.aiguille *needle Bearing Formula Iii 600 R. Formula Iii 700 R.
15
504080300
Rondelle *washer Formula Iii 600 R. Formula Iii 700 R.
16
732601275
Screw-forging Formula Iii 600 R. Formula Iii 700 R.
17
414484400
Joint Torique *o-ring Formula Iii 600 R. Formula Iii 700 R.
18
234001410
0asher-flat Din.125a Formula Iii 600 R. Formula Iii 700 R.
19
504147200
Cale Epaisseur *shim Formula Iii 600 R. Formula Iii 700 R.
20
504084300
Roue Dentee 25d*sprocket 25th Formula Iii 600 Lt.
504085300
Roue Dentee 26d*sprocket 26th .
21
371006300
Goupille Fendue*pin-cotter Formula Iii 600 R. Formula Iii 700 R.
22
250000012
Nut-hex.castle M20 X 1.5 Formula Iii 600 R. Formula Iii 700 R.
23
504076300
Bague D Appui *ring-retaining Formula Iii 600 R. Formula Iii 700 R.
24
504097700
Arbre De Couple*coupling Formula Iii 600 R. Formula Iii 700 R.
25
581096800
Pignon 44d Ass.*sprock-44th Assy Includes 25 - 31. Formula Iii 600 R. Formula Iii 700 R.
26
414772600
Roulement Aig. *needle Bearing Formula Iii 600 R. Formula Iii 700 R.
27
504076800
Tige D Engagem.*pin-drive Formula Iii 600 R. Formula Iii 700 R.
28
414772700
Ressort *spring Formula Iii 600 R. Formula Iii 700 R.
29
504076100
Anneau Retenue *ring-retainer Formula Iii 600 R. Formula Iii 700 R.
30
207152044
Screw-hex.cap Din.933 Formula Iii 600 R. Formula Iii 700 R.
31
233551416
Nut-lock Spring Din.980v Formula Iii 600 R. Formula Iii 700 R.
32
504096800
Engr.coulis.56d*gear-sliding56 Formula Iii 600 R. Formula Iii 700 R.
33
414969400
Joint Torique *o-ring Formula Iii 600 R. Formula Iii 700 R.
34
504147400
Barre Ajust. *bar-adjust. Formula Iii 600 R. Formula Iii 700 R.
35
507031500
Entretoise *spacer Formula Iii 600 R. Formula Iii 700 R.
36
504151964
Capuchon *cap Formula Iii 600 R. Formula Iii 700 R.
37
207005044
Screw-hex.cap Iso.4014 Formula Iii 600 R. Formula Iii 700 R.
38
234100602
Washer-lock Spring Din.128a-a2 Formula Iii 600 R. Formula Iii 700 R.
39
504083100
Axe De Renverse*shaft-reverse Formula Iii 600 R. Formula Iii 700 R.
40
732804003
Ppin-rolled Din.1481 M3 X 12 Formula Iii 600 R. Formula Iii 700 R.
41
504077300
Entretoise *spacer Formula Iii 600 R. Formula Iii 700 R.
42
504078700
Bague *ring Formula Iii 700 R.
43
581122200
Engren. 19d Ass*sprock-19 Teeth Assy. Includes 43 - 44. Formula Iii 600 R. Formula Iii 700 R.
44
414805000
Roul. Aiguille *needle Bearing Formula Iii 600 R. Formula Iii 700 R.
45
570048600
Tige Alignement*rod-alignement Formula Iii 600 R. Formula Iii 700 R.
46
581096900
Pignon 19 Dents*19th Sprocket Includes 46 - 47. Formula Iii 600 R. Formula Iii 700 R.
47
414773100
Roul. Aiguille *needle Bearing Formula Iii 600 R. Formula Iii 700 R.
48
414784900
Circlip Int. *circlip-int. Formula Iii 600 R. Formula Iii 700 R.
49
504082900
Washer Din 7603 Formula Iii 600 R. Formula Iii 700 R.
50
504150000
Patte Verrouil.*lock-tab Formula Iii 600 R. Formula Iii 700 R.
51
504096600
Ressort Rappel *spring-release Formula Iii 600 R. Formula Iii 700 R.
52
504083800
Entretoise *spacer Formula Iii 600 R. Formula Iii 700 R.
53
504151925
Anneau Etanche *oil Seal Ass Y Formula Iii 600 R. Formula Iii 700 R.
54
233601416
Nut-locking Elastic Din.982 Formula Iii 600 R. Formula Iii 700 R.
55
504152010
Roulement Bille*ball Bearing Formula Iii 600 R. Formula Iii 700 R.
56
207107544
Screw-hex.cap Iso.4017 Formula Iii 600 R. Formula Iii 700 R.
57
414773200
Joint Torique *o-ring Formula Iii 600 R. Formula Iii 700 R.
58
504073700
Rondelle *washer Formula Iii 600 R. Formula Iii 700 R.
59
504151830
Chaine Large *chain-driv.l. Formula Iii 600 R.
504151857
Chaine Large *chain-driv.l. Formula Iii 700 R.
60
414575600
Goup.surete *pin-hair Formula Iii 600 R. Formula Iii 700 R.
61
504094300
Rondelle *washer Formula Iii 600 R. Formula Iii 700 R.
62
572092700
Bouchon Remp.as*cap-filler Assy. Formula Iii 600 R. Formula Iii 700 R.
63
210263080
Screw-forming Hex.hd.fl.gm6174m Formula Iii 600 R. Formula Iii 700 R.
64
414362300
Joint Torique *o-ring Formula Iii 600 R. Formula Iii 700 R.
65
232061414
Nut-hexagonal Din.934 Formula Iii 600 R. Formula Iii 700 R.
66
414773400
Joint Rotule *ball Joint Formula Iii 600 R. Formula Iii 700 R.
67
414772500
Goup.ressort *pin-spring Formula Iii 600 R. Formula Iii 700 R.
68
504147500
Axe Fourch.sou *axle-fork Weld Formula Iii 600 R. Formula Iii 700 R.
69
207089044
Screw-hex.cap Din.931 Formula Iii 600 R. Formula Iii 700 R.
70
504075800
Fourch. Usine *fork-machining Formula Iii 600 R. Formula Iii 700 R.
71
415103800
Axe Epaulement *axle-flanged Formula Iii 600 R. Formula Iii 700 R.
72
414773500
Joint Rotule *ball Joint Formula Iii 600 R. Formula Iii 700 R.
73
232066414
Nut-hex.lh.thread Din.934 L Formula Iii 600 R. Formula Iii 700 R.
74
207162044
Screw-hex.cap Din.933 Formula Iii 600 R. Formula Iii 700 R.
76
232561414
Nut-stop Elastic Din.985 Formula Iii 600 R. Formula Iii 700 R.
77
504151826
Supp.poignee So*supp-handle Weld Formula Iii 600 R. Formula Iii 700 R.
78
572106000
Douille Epaul. *flange-bushing Formula Iii 600 R. Formula Iii 700 R.
79
504147700
Poignee Soudee *handle-weld. Formula Iii 600 R. Formula Iii 700 R.
80
570064600
Poignee *grip Formula Iii 600 R. Formula Iii 700 R.
81
503095100
Rondelle *washer Formula Iii 600 R. Formula Iii 700 R.
82
371800800
Goupille Fendue*pin-cotter Formula Iii 600 R. Formula Iii 700 R.
83
414792102
Avertiss.ac-bt *horn-ac-bt Formula Iii 600 R. Formula Iii 700 R.
84
414805101
Ecrou Plastique*nut-plastic. Formula Iii 600 R. Formula Iii 700 R.
85
515175318
Interrupteur *switch Formula Iii 600 R. Formula Iii 700 R.
86
250100012
Ecrou Laiton *nut-brass Formula Iii 600 R. Formula Iii 700 R.
87
507031900
Frein De Vis *lock-tab Formula Iii 600 R. Formula Iii 700 R.
88
207103544
Screw-hex.cap Iso.4017 Formula Iii 600 R. Formula Iii 700 R.
90
293800005
Loctite 271 *loctite-271 Formula Iii 600 R. Formula Iii 700 R.
91
293800060
Loctite 243 *loctite-243 Formula Iii 600 R. Formula Iii 700 R.
92
413706100
Graisse Lith. *grease Lith. Formula Iii 600 R. Formula Iii 700 R.
93
413803300
Huile Chaine *oil-chain Formula Iii 600 R. Formula Iii 700 R.
94
414115200
Tie-rap 180 Mm Formula Iii 600 R. Formula Iii 700 R.
89
296000309
Scell.silicone *seal-silicone Formula Iii 600 R. Formula Iii 700 R.
