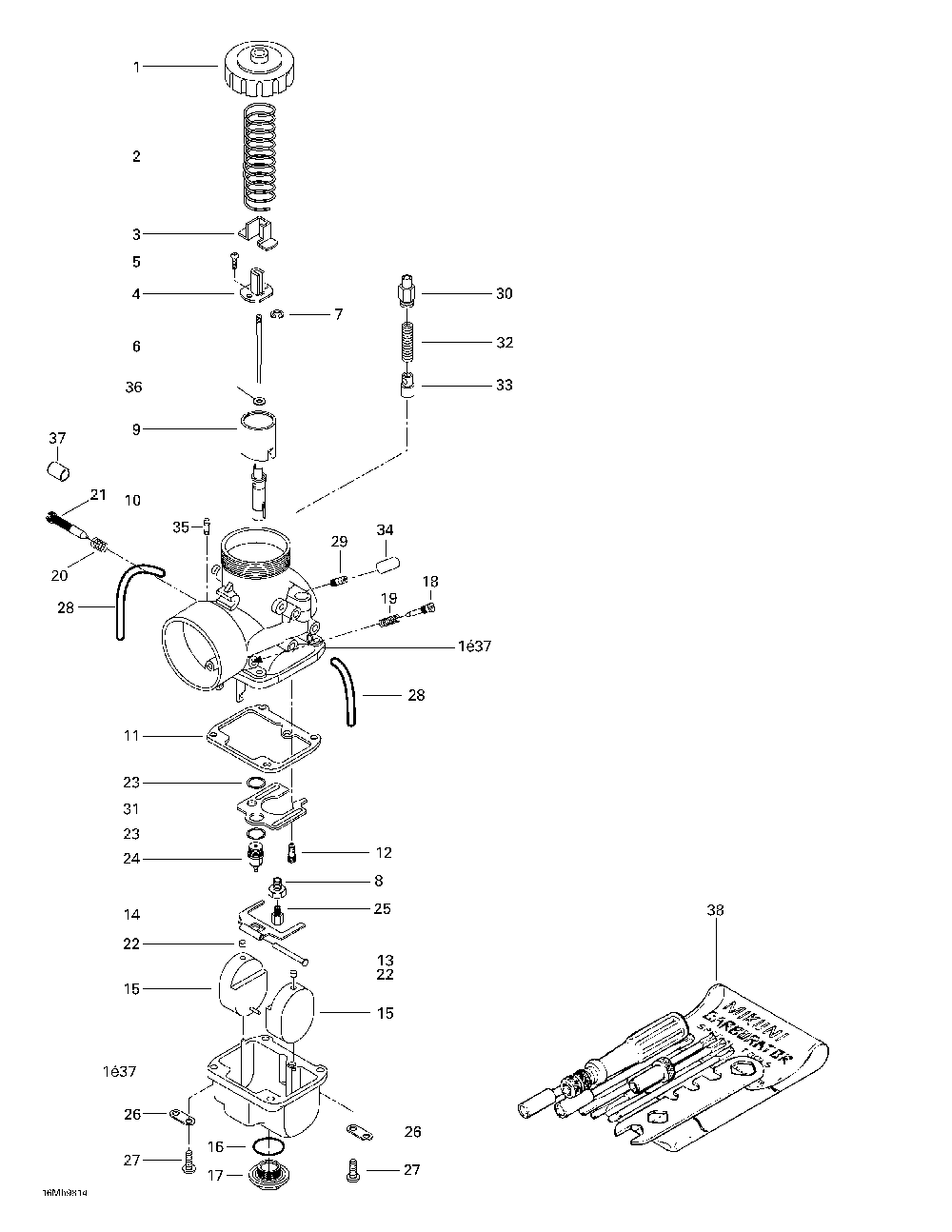

Карбюратор

Ski-Doo (Bombardier) Formula III 600 R/700 R
Ski-Doo (Bombardier)
#oem кодцена
1
403132700
Carb.vm-36 *carb-vm-36 Includes 1 - 37. Formula Iii 600. Formula Iii 600 R. Formula Iii 600 Lt.
403133000
Carb.vm-38 *carb-vm-38 Formula Iii 700. Formula Iii 700 R.
403133100
Carb.vm-38 *carb-vm-38 Formula Iii 700. Formula Iii 700 R.
1
404105100
Крышка
2
404154800
Пружина
3
404122100
Крышка
4
404160800
Connecteur *connector
5
404121300
Vis W.rondelle*screw-with Washer
6
404159900
Aiguille 6dey04*needle Formula Iii 600. Formula Iii 600 R. Formula Iii 600 Lt.
404161800
Aiguille 6deh05*needle Formula Iii 700. Formula Iii 700 R.
7
404152400
Rondelle E *ring-e
8
404105500
Vis Guide *screw-guide
9
404154700
Tiroir Acc.2.5 *piston-val.2.5 Formula Iii 600. Formula Iii 600 R. Formula Iii 600 Lt.
404131300
Tiroir Acc.2.5 *piston-val.2.5 Formula Iii 700. Formula Iii 700 R.
10
404158500
Gicleur Aiguil.*jet-needle Formula Iii 600. Formula Iii 600 R. Formula Iii 600 Lt.
404159000
Gicleur Aiguil.*jet Needle Formula Iii 700. Formula Iii 700 R.
11
404104700
Прокладка
12
404109500
Gicleur Ralenti*jet-pilot 50
13
404103300
Палец крепления рычага
14
404105000
Levier Flotteur*lever-float
15
404105400
Flotte *float
16
404101500
Шайба
17
404105600
Vis Bouchon *screw-drain Plug
404149000
Vis Air *screw-air Formula Iii 700. Formula Iii 700 R.
19
404139800
Пружина
20
404101700
Пружина
21
404154400
Manipulateur *adjuster Formula Iii 600. Formula Iii 600 R. Formula Iii 600 Lt.
404102800
Vis Ajustement*screw-idle Speed Formula Iii 700. Formula Iii 700 R.
22
404105800
Крышка
23
404101600
Rondelle Siege *washer-seat
24
404147400
Pointeau Vs 1.5*valve Needle
25
404101100
Gicleur Mj 290 *jet-main 290 Formula Iii 600. Formula Iii 600 R. Formula Iii 600 Lt.
404107800
Gicleur Mj 310 *jet-main 310 Formula Iii 700. Formula Iii 700 R.
404101200
Gicleur Mj 300 *jet-main 300 Formula Iii 700. Formula Iii 700 R.
26
404103000
Plaque *plate
27
404102000
Screw-w/lock *screw-w/lockwasher
28
404161880
Патрубок
29
404153400
Raccord *nipple
30
404161100
Guide *guide Holder
32
404127400
Пружина
33
404161000
Plongeur Ass. *plunger-assy
34
404154900
Крышка
35
404158900
Фильтр
36
404117000
Joint Tampon *packing Formula Iii 700. Formula Iii 700 R.
37
404152500
Capuchon *cap Formula Iii 700. Formula Iii 700 R.
38
404112000
Комплект инструментов
