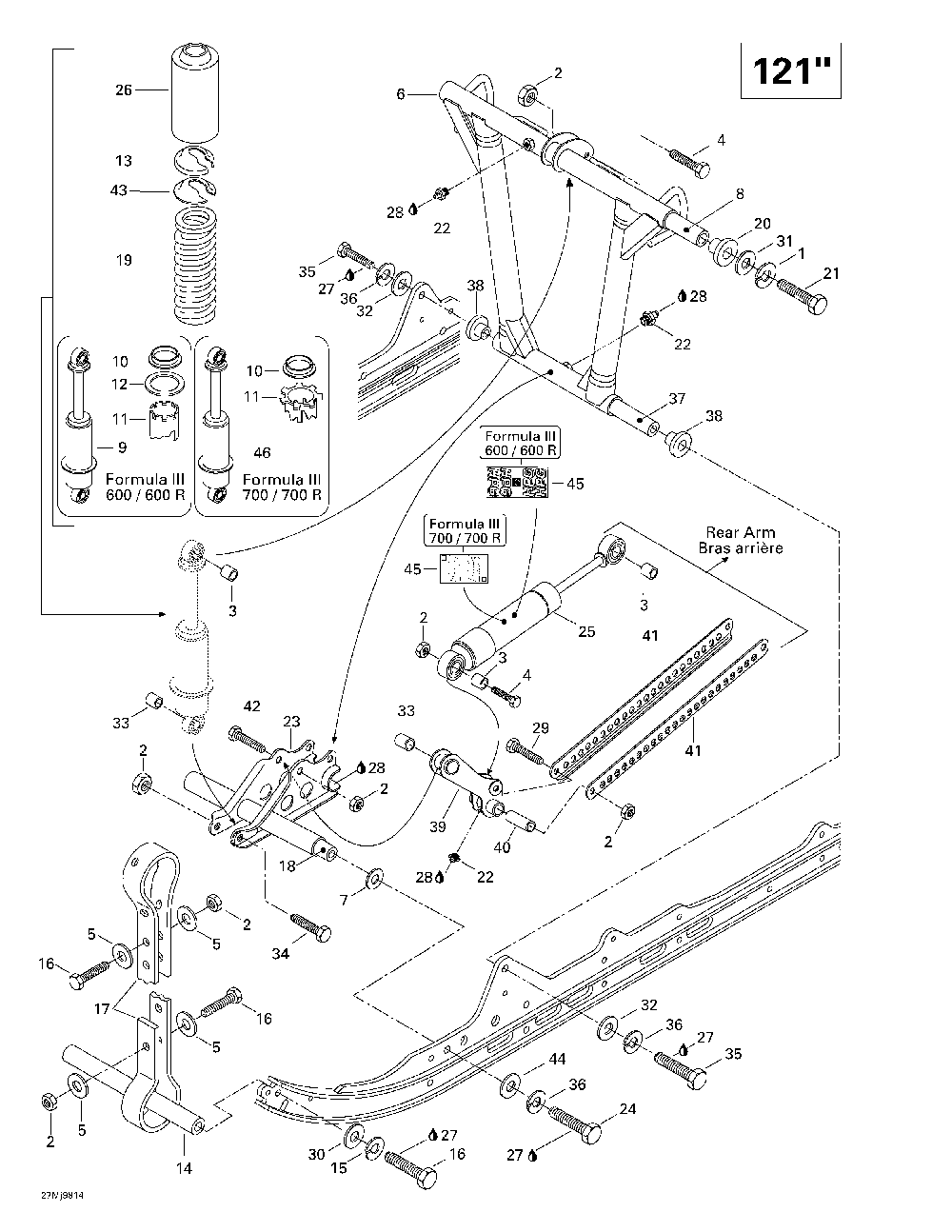

08- front arm, rear suspension (121)

Ski-Doo (Bombardier) Formula III 600/700
Ski-Doo (Bombardier)
#oem кодцена
1
234101601
Washer-lock Helical Din.127b-a2 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
2
232581414
Nut-stop Elastic Din.985 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
3
414936000
Coussinet *cushion Formula Iii 600. Formula Iii 600 R.
4
207084044
Screw-hex.cap Din.931 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
5
517078700
Rondelle *washer Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
6
503176000
Bras Avant *arm-front Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
7
503175400
Rondelle Trempe*washer-hard Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
8
503190387
Arbre *shaft Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
9
503188913
Amort. Cent. *shock-center Includes 9 - 12. Formula Iii 600. Formula Iii 600 R.
9
505070150
Came 45 Degres *cam 45 Degres Includes 9 - 12. Formula Iii 600. Formula Iii 600 R.
10
415052800
Guide Ressort *guide-spring Formula Iii 600. Formula Iii 600 R.
503165100
Guide Ressort *guide-spring Formula Iii 700. Formula Iii 700 R.
11
415052700
Came *cam Formula Iii 600. Formula Iii 600 R.
291001088
Bague Reglage *adjuster Ring Formula Iii 700. Formula Iii 700 R.
12
415052900
Rondelle Appuie*washer-thrust Formula Iii 600. Formula Iii 600 R.
13
706200881
Butee Ressort *spring Stopper Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
14
503151600
Axe *axle Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
15
234181401
Washer-lock Din.127b Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
16
207183044
Screw-hex.cap Din.933 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
17
503190986
Courroie Arret *stopper Strap Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
18
503174800
Arbre *shaft Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
19
415103600
Ressort *spring Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
20
503189324
Coussinet *bushing Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
21
207006044
Screw-hex.cap Iso.4014 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
22
408200700
Graisseur *grease Fitting Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
23
503182800
Sup.cent.amor. *supp.-shock Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
24
207123544
Screw-hex.cap Iso.4017 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
25
503190811
Amortisseur *rear Shock Formula Iii 600. Formula Iii 600 R.
415101900
Amortisseur *shock Formula Iii 700. Formula Iii 700 R.
26
503188930
Protecteur *protector Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
27
293800005
Loctite 271 *loctite-271 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
28
413706100
Graisse Lith. *grease Lith. Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
29
207087544
Screw-hex.cap Din.931 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
30
234081410
Washer-flat Din.125a Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
31
234001410
0asher-flat Din.125a Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
32
234021410
Washer-flat Din.125a Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
33
414917900
Coussinet *cushion Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
34
207085544
Screw-hex.cap Din.931 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
35
207026044
Screw-hex.cap Iso.4014 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
36
234120602
Washer-lock Spring Din.128a-a2 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
37
207226044
Screw-hex.cap Iso.4014 S.grip Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
37
503189276
Rondelle *washer Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
37
503189313
Arbre *shaft Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
38
503188940
Coussinet *cushion Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
39
503158500
Levier *lever Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
40
503158600
Axe Barre Accou*shaft-tie Rod Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
41
503158700
Barre Accoup. *rod-tie Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
42
207085044
Screw-hex.cap Din.931 Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
43
503191610
Capuchon *cap Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
45
414871400
Decalque H.p.g.*decal-h.p.g. Formula Iii 600. Formula Iii 600 R.
418001500
Decalque Amort.*decal-shock Formula Iii 700. Formula Iii 700 R.
46
415101700
Amortisseur *shock Formula Iii 700. Formula Iii 700 R.
47
503189649
Втулка
48
503189363
Гильза
44
234021410
Washer-flat Din.125a Formula Iii 600. Formula Iii 600 R. Formula Iii 700. Formula Iii 700 R.
