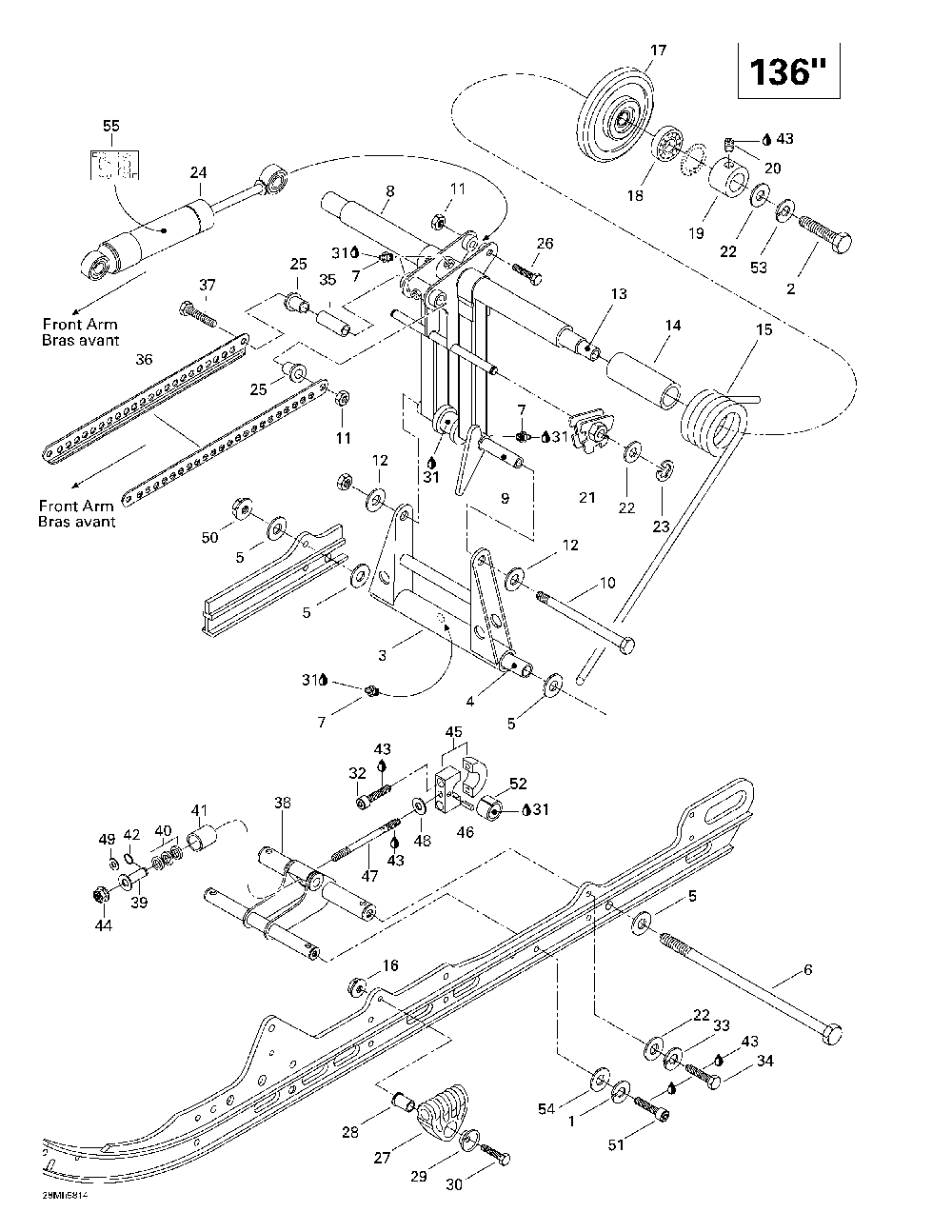

08- rear arm, rear suspension (136)

Ski-Doo (Bombardier) Formula III 600/700
Ski-Doo (Bombardier)
#oem кодцена
1
234100602
Washer-lock Spring Din.128a-a2 Formula Iii 600 Lt.
2
207103544
Screw-hex.cap Iso.4017 Formula Iii 600 Lt.
3
503191372
Jumelle Peinte *arm-pivot P. Formula Iii 600 Lt.
4
503154703
Axe Inf. Jumel.*axle-piv.lower Formula Iii 600 Lt.
5
224081201
Washer-flat Formula Iii 600 Lt.
6
732601198
Boulon 248mm *bolt 248mm Formula Iii 600 Lt.
7
408200700
Graisseur *grease Fitting Formula Iii 600 Lt.
8
503188974
Bras Arriere *arm-rear Formula Iii 600 Lt.
9
503144300
Axe Sup. Jumel.*axle-piv.upper Formula Iii 600 Lt.
10
732601197
Boulon Court *bolt-short Formula Iii 600 Lt.
11
232581414
Nut-stop Elastic Din.985 Formula Iii 600 Lt.
12
234081410
Washer-flat Din.125a Formula Iii 600 Lt.
13
503168700
Axe Transv.arr.*shaft-cross Rr Formula Iii 600 Lt.
14
572080700
Douille *bushing Formula Iii 600 Lt.
15
415010500
Ressort Dr.pein*spring-rh.p. Formula Iii 600 Lt.
415010600
Ressort Ga.pein*spring-lh.p. Formula Iii 600 Lt.
16
233261414
Nut-flange Elastic Din.6926 Formula Iii 600 Lt.
17
503189658
Roue 155 *wheel-155 Includes 17 - 18. Formula Iii 600 Lt.
18
293350055
Ball Bearing Formula Iii 600 Lt.
19
503168800
Bague D Appui *ring-retaining Formula Iii 600 Lt.
20
206260844
Screw-set Socket Din.913 Formula Iii 600 Lt.
21
572030800
Came Reglage Ga*cam-adjust.lh. Formula Iii 600 Lt.
572030900
Came Reglage Dr*cam-adjust.rh. Formula Iii 600 Lt.
22
234001410
0asher-flat Din.125a Formula Iii 600 Lt.
23
371907100
Circlip "e" *circlip-"e" Formula Iii 600 Lt.
24
503189206
Amortisseur *shock Formula Iii 600 Lt.
25
415052300
Coussinet Plast*cushion-plast. Formula Iii 600 Lt.
26
207085044
Screw-hex.cap Din.931 Formula Iii 600 Lt.
27
503189657
Support Ressort*support-spring Formula Iii 600 Lt.
28
503152700
Axe Guide Ress.*axle-guide Spring Formula Iii 600 Lt.
29
517041700
Rondelle Retenu*washer-retaine Formula Iii 600 Lt.
30
207065044
Screw-hex.cap Din.931 Formula Iii 600 Lt.
31
413706100
Graisse Lith. *grease Lith. Formula Iii 600 Lt.
32
205083044
Screw-socket Hd.din.912 Formula Iii 600 Lt.
34
207103044
Screw-hex.cap Iso.4017 Formula Iii 600 Lt.
35
503171600
Axe Barre Accou*shaft-tie Rod Formula Iii 600 Lt.
36
503170900
Barre Accoup.p *rod-tie P. Formula Iii 600 Lt.
37
207089044
Screw-hex.cap Din.931 Formula Iii 600 Lt.
38
503176500
Attache *bracket Formula Iii 600 Lt.
39
503172900
Douille Soudee *bushing-weld. Formula Iii 600 Lt.
40
570049600
Butee Caout. *stopper-rubber Formula Iii 600 Lt.
41
503103600
Coupole *cup Formula Iii 600 Lt.
42
371910700
Circlip *circlip Formula Iii 600 Lt.
43
293800005
Loctite 271 *loctite-271 Formula Iii 600 Lt.
44
233201414
Nut-flange Elastic Din.6926 Formula Iii 600 Lt.
45
503189044
Bloc Pivot Ass.*block-pivot Assy. Includes 45 - 48. Formula Iii 600 Lt.
46
732804011
Pin-rolled Din.1481 M3 X 18 Formula Iii 600 Lt.
49
503183400
Rondelle *washer Formula Iii 600 Lt.
50
233281414
Nut-flange Elastic Din.6926 Formula Iii 600 Lt.
51
205003544
Screw-socket Hd.din.912 Formula Iii 600 Lt.
52
415027800
Coussinet *cushion Formula Iii 600 Lt.
53
234101601
Washer-lock Helical Din.127b-a2 Formula Iii 600 Lt.
54
503176700
Washer Flat Trempe Formula Iii 600 Lt.
55
418001500
Decalque Amort.*decal-shock Formula Iii 600 Lt.
8
503171500
Bras Arriere *arm-rear Formula Iii 600 Lt.
24
415102200
Amortisseur *shock Formula Iii 600 Lt.
45
580653800
Bloc Pivot Ass.*block-pivot Assy. Includes 45 - 48. Formula Iii 600 Lt.
33
234100602
Washer-lock Spring Din.128a-a2 Formula Iii 600 Lt.
