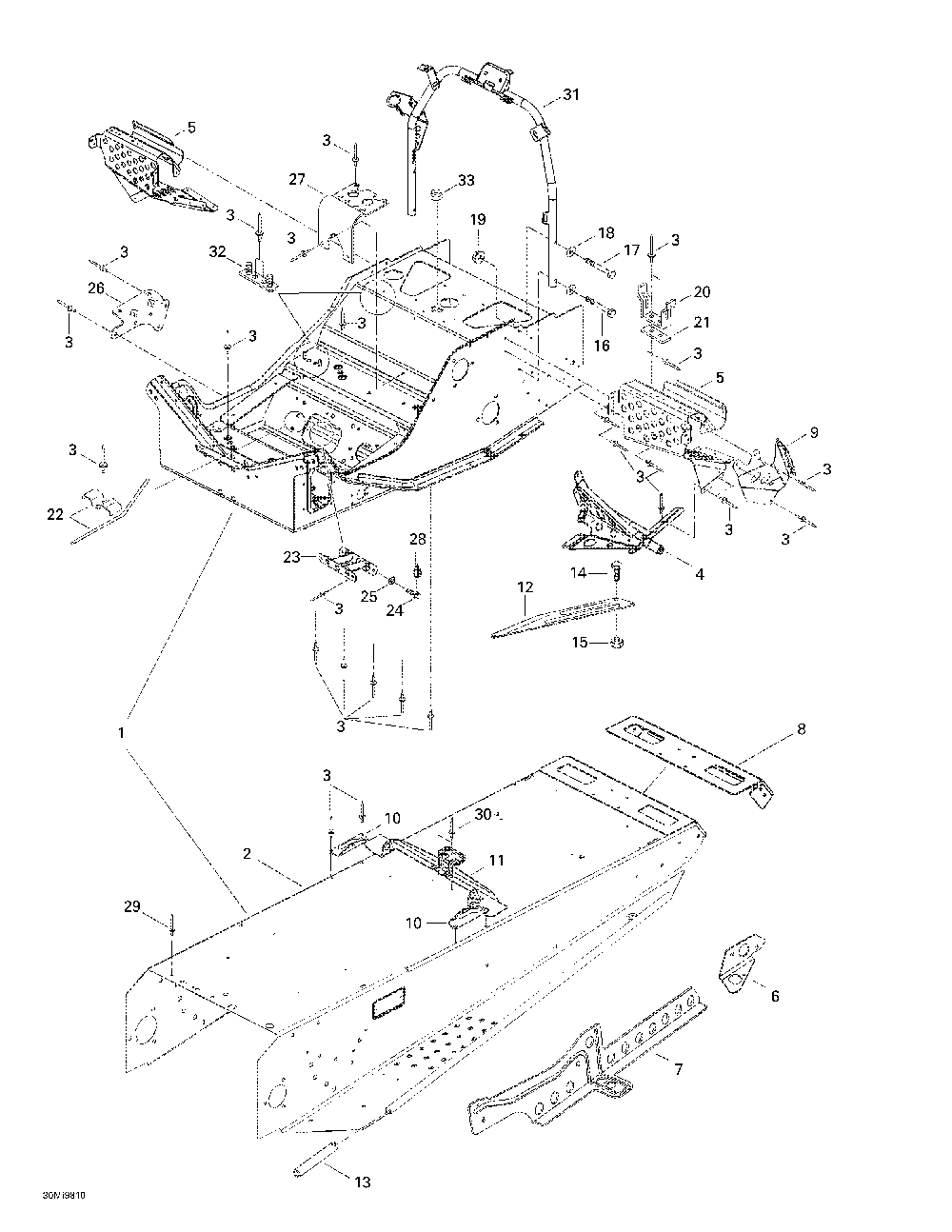

Рама

Ski-Doo (Bombardier) Formula Z 670

Рама

#

oem код

название

цена

1

Chassis *frame Includes 1 - 15.

Chassis *frame Includes 1 - 15.

2

Tunnel *frame-forming

Tunnel *frame-forming

3

Заклепка 3/16

Заклепка 3/16

4

Support Gauche *lh.support

Support Gauche *lh.support

Support Droit *rh.support

Support Droit *rh.support

5

Repose-pied Dr.*footrest-rh

Repose-pied Dr.*footrest-rh

Repose-pied Ga.*footrest-lh

Repose-pied Ga.*footrest-lh

6

Renfort Arr.dr.*reinf.-rear Rh

Renfort Arr.dr.*reinf.-rear Rh

Renfort Arr.ga.*reinf.-rear Lh

Renfort Arr.ga.*reinf.-rear Lh

7

Attache Droite *brkt-rh Black

Attache Droite *brkt-rh Black

Attache Gauche *bracket-lh

Attache Gauche *bracket-lh

8

Capuchon Arr. *cap-rear

Capuchon Arr. *cap-rear

9

Plaque Sup. Ga.*plate-upper Lh

Plaque Sup. Ga.*plate-upper Lh

Plaque Sup. Dr.*plate-upper Rh

Plaque Sup. Dr.*plate-upper Rh

10

Att.reserv.dr.s*brkt-tank Rh Weld

Att.reserv.dr.s*brkt-tank Rh Weld

Att.reserv.ga.s*brkt-tank Lh Weld

Att.reserv.ga.s*brkt-tank Lh Weld

11

Attache Siege *bracket-seat

Attache Siege *bracket-seat

12

Plaque Renf.dr.*plate-reinf.rh

Plaque Renf.dr.*plate-reinf.rh

Plaque Renf.ga.*plate-reinf.lh

Plaque Renf.ga.*plate-reinf.lh

13

Renf.marche-pie*reinf.-foot.

Renf.marche-pie*reinf.-foot.

14

Винт

Винт

15

Гайка

Гайка

16

Винт

Винт

17

Винт

Винт

18

Шайба

Шайба

19

Гайка

Гайка

20

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

21

Renfort *reinforcement

Renfort *reinforcement

22

Guide Corde Sou*guide-rope Weld.

Guide Corde Sou*guide-rope Weld.

23

Plaque Renf.sou*plate-reinf.weld

Plaque Renf.sou*plate-reinf.weld

24

Винт

Винт

25

Шайба

Шайба

26

Support Silenc.*support-muffler

Support Silenc.*support-muffler

27

Supp.silenc.adm*supp-air Intake

Supp.silenc.adm*supp-air Intake

28

Смазка Loctite 271

Смазка Loctite 271

29

Заклепка 3/16

Заклепка 3/16

30

Заклепка 3/16

Заклепка 3/16

31

Supp.guidon *supp-handle

Supp.guidon *supp-handle

32

Plaque Supp.sou*plate-supp.weld

Plaque Supp.sou*plate-supp.weld

33

Крышка

Крышка
