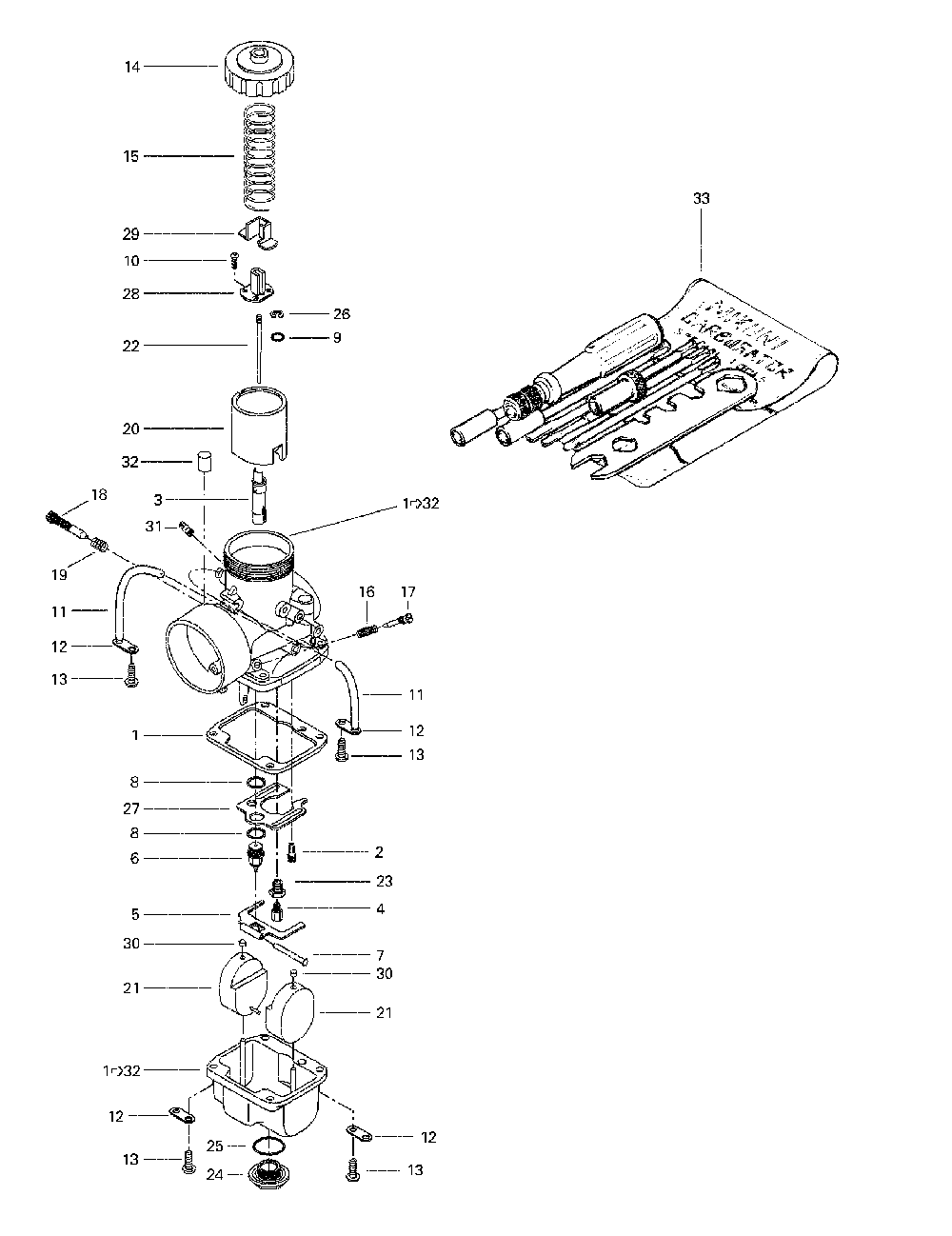

Карбюратор

Ski-Doo (Bombardier) Grand Touring 500/583
Ski-Doo (Bombardier)
#oem кодцена
1
403134200
Carb.vm-38 *carb-vm-38 Includes 1 - 32. Grand Touring 500.
403134300
Carb.vm-38 *carb-vm-38 Grand Touring 500.
1
404104700
Прокладка
2
404109500
Gicleur Ralenti*jet-pilot 50
3
404160900
Gicleur Aiguil.*jet Needle Grand Touring 500.
404156900
Gicleur Aiguil.*jet Needle Grand Touring 583.
4
404101300
Gicleur Mj 320 *jet-main 320 Grand Touring 500.
404100600
Gicleur Mj 260 *jet-main 260 Grand Touring 583.
404100400
Gicleur Mj 270 *jet-main 270 Grand Touring 583.
404101100
Gicleur Mj 290 *jet-main 290 Grand Touring 500.
5
404105000
Levier Flotteur*lever-float
6
404147400
Pointeau Vs 1.5*valve Needle
7
404103300
Палец крепления рычага
8
404101600
Rondelle Siege *washer-seat
9
404117000
Joint Tampon *packing
10
404121300
Vis W.rondelle*screw-with Washer
11
404109800
Tuyau Aeration *tube-air Vent
12
404103000
Plaque *plate
13
404102000
Screw-w/lock *screw-w/lockwasher
14
404105100
Крышка
15
404154800
Пружина
16
404139800
Пружина
17
404149000
Vis Air *screw-air
18
404102800
Vis Ajustement*screw-idle Speed
19
404101700
Пружина
21
404105400
Flotte *float
22
404161500
Aiguille 6dhy48*needle Grand Touring 500.
404159900
Aiguille 6dey04*needle Grand Touring 583.
23
404105500
Vis Guide *screw-guide
24
404105600
Vis Bouchon *screw-drain Plug
25
404101500
Шайба
26
404152400
Rondelle E *ring-e
28
404160800
Connecteur *connector
29
404122100
Крышка
30
404105800
Крышка
31
404153400
Raccord *nipple
32
404158900
Фильтр
33
404112000
Комплект инструментов
