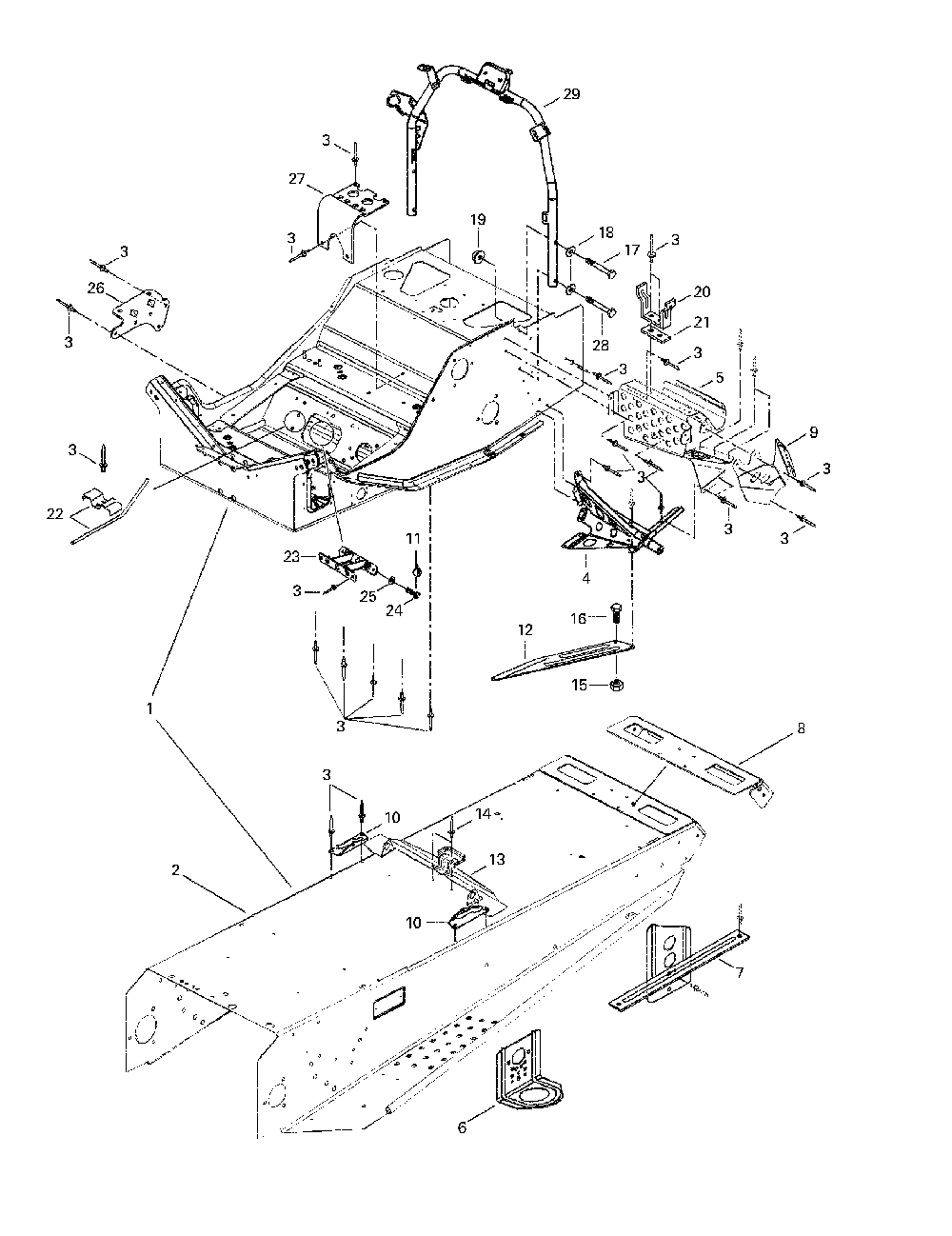

Рама Запчасти для снегоходов Ski-Doo (Bombardier) Grand Touring 500/583 (1998)

Рама

Ski-Doo (Bombardier) Grand Touring 500/583

oem код

название

цена

518319044

Chassis *frame Includes 1 - 16.

518318852

Tunnel *frame-forming

390402200

Заклепка 3/16

518320507

Support Gauche *lh.support

518320506

Support Droit *rh.support

518313804

Repose-pied Dr.*footrest-rh

518313805

Repose-pied Ga.*footrest-lh

518321495

Attache Avant *bracket-front

518318912

Att.arr.ga.pein*brkt-rr Lh Paint

518318911

Att.arr.dr.pein*brkt-rr Rh Paint

518317551

Capuchon Arr. *cap-rear

518308729

Plaque Sup. Ga.*plate-upper Lh

518308730

Plaque Sup. Dr.*plate-upper Rh

517266900

Att.reserv.dr.s*brkt-tank Rh Weld

517267000

Att.reserv.ga.s*brkt-tank Lh Weld

293800005

Смазка Loctite 271

518316772

Plaque Renf.dr.*plate-reinf.rh

518321959

Plaque Renf.ga.*plate-reinf.lh

518317560

Attache Siege *bracket-seat

Заклепка 3/16

Гайка

Винт

Винт

Шайба

Гайка

Attache Gard.co*brkt-guard Belt

518207500

Renfort *reinforcement

518313700

Guide Corde Sou*guide-rope Weld.

518304741

Plaque Renf.sou*plate-reinf.weld

207182044

Винт

234181401

Шайба

518322635

Support Silenc.*support-muffler

518310400

Supp.silenc.adm*supp-air Intake

207064044

Винт

518309200

Supp.guidon *supp-handle
