Трансмиссия

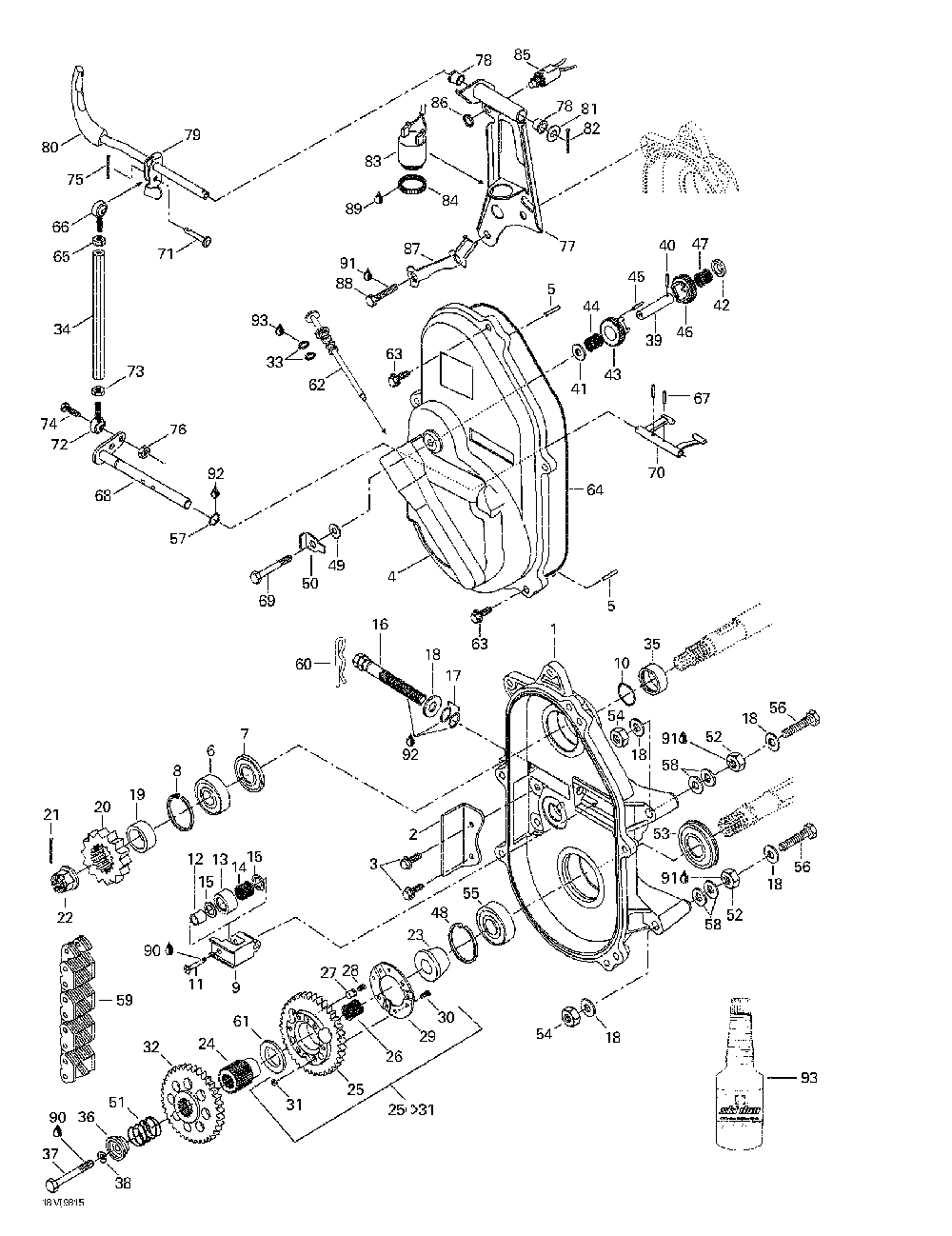

Ski-Doo (Bombardier) Mach 1 R
Ski-Doo (Bombardier)
#oem кодцена
1
504146600
Carter Chaine U*case-chain Mach. Mach 1-r.
2
504152036
Glissiere Chain*chain-slider Mach 1-r.
3
210251180
Screw-forming Hex.hd.fl.gm6174m Mach 1-r.
4
504146800
Couvercle Usine*cover-mach. Mach 1-r.
5
732620001
Goupille Cyl. *pin-cylinder Mach 1-r.
6
504152006
Roulement Bille*ball Bearing Mach 1-r.
7
415049300
Joint Etanche *oil Seal Mach 1-r.
8
371901700
Circlip Int. *circlip-int. Mach 1-r.
9
504081000
Tendeur Usine *tensioner-mach Mach 1-r.
10
414876700
Joint Torique *o-ring Mach 1-r.
11
732601144
Screw Mach 1-r.
12
504080200
Entretoise *spacer Mach 1-r.
13
414531300
Rouleau *roller Mach 1-r.
14
405403000
Roul.aiguille *needle Bearing Mach 1-r.
15
504080300
Rondelle *washer Mach 1-r.
16
732601275
Screw-forging Mach 1-r.
17
414484400
Joint Torique *o-ring Mach 1-r.
18
234001410
0asher-flat Din.125a Mach 1-r.
19
504147200
Cale Epaisseur *shim Mach 1-r.
20
504085300
Roue Dentee 26d*sprocket 26th Mach 1-r.
21
371006300
Goupille Fendue*pin-cotter Mach 1-r.
22
250000012
Nut-hex.castle M20 X 1.5 Mach 1-r.
23
504076300
Bague D Appui *ring-retaining Mach 1-r.
24
504097700
Arbre De Couple*coupling Mach 1-r.
25
581096800
Pignon 44d Ass.*sprock-44th Assy Includes 25 - 31. Mach 1-r.
26
414772600
Roulement Aig. *needle Bearing Mach 1-r.
27
504076800
Tige D Engagem.*pin-drive Mach 1-r.
28
414772700
Ressort *spring Mach 1-r.
29
504076100
Anneau Retenue *ring-retainer Mach 1-r.
30
207152044
Screw-hex.cap Din.933 Mach 1-r.
31
233551416
Nut-lock Spring Din.980v Mach 1-r.
32
504096800
Engr.coulis.56d*gear-sliding56 Mach 1-r.
33
414969400
Joint Torique *o-ring Mach 1-r.
34
504147400
Barre Ajust. *bar-adjust. Mach 1-r.
35
507031500
Entretoise *spacer Mach 1-r.
36
504151964
Capuchon *cap Mach 1-r.
37
207005044
Screw-hex.cap Iso.4014 Mach 1-r.
38
234100602
Washer-lock Spring Din.128a-a2 Mach 1-r.
39
504083100
Axe De Renverse*shaft-reverse Mach 1-r.
40
732804003
Ppin-rolled Din.1481 M3 X 12 Mach 1-r.
41
504077300
Entretoise *spacer Mach 1-r.
42
504078700
Bague *ring Mach 1-r.
43
581122200
Engren. 19d Ass*sprock-19 Teeth Assy. Includes 43 - 44. Mach 1-r.
44
414805000
Roul. Aiguille *needle Bearing Mach 1-r.
45
570048600
Tige Alignement*rod-alignement Mach 1-r.
46
581096900
Pignon 19 Dents*19th Sprocket Includes 46 - 47. Mach 1-r.
47
414773100
Roul. Aiguille *needle Bearing Mach 1-r.
48
414784900
Circlip Int. *circlip-int. Mach 1-r.
49
504082900
Washer Din 7603 Mach 1-r.
50
504150000
Patte Verrouil.*lock-tab Mach 1-r.
51
504096600
Ressort Rappel *spring-release Mach 1-r.
52
504083800
Entretoise *spacer Mach 1-r.
53
504151925
Anneau Etanche *oil Seal Ass Y Mach 1-r.
54
233601416
Nut-locking Elastic Din.982 Mach 1-r.
55
504152010
Roulement Bille*ball Bearing Mach 1-r.
56
207107544
Screw-hex.cap Iso.4017 Mach 1-r.
57
414773200
Joint Torique *o-ring Mach 1-r.
58
504073700
Rondelle *washer Mach 1-r.
59
504151857
Chaine Large *chain-driv.l. Mach 1-r.
60
414575600
Goup.surete *pin-hair Mach 1-r.
61
504094300
Rondelle *washer Mach 1-r.
62
572092700
Bouchon Remp.as*cap-filler Assy. Mach 1-r.
63
210263080
Screw-forming Hex.hd.fl.gm6174m Mach 1-r.
64
414362300
Joint Torique *o-ring Mach 1-r.
65
232061414
Nut-hexagonal Din.934 Mach 1-r.
66
414773400
Joint Rotule *ball Joint Mach 1-r.
67
414772500
Goup.ressort *pin-spring Mach 1-r.
68
504147500
Axe Fourch.sou *axle-fork Weld Mach 1-r.
69
207089044
Screw-hex.cap Din.931 Mach 1-r.
70
504075800
Fourch. Usine *fork-machining Mach 1-r.
71
415103800
Axe Epaulement *axle-flanged Mach 1-r.
72
414773500
Joint Rotule *ball Joint Mach 1-r.
73
232066414
Nut-hex.lh.thread Din.934 L Mach 1-r.
74
207162044
Screw-hex.cap Din.933 Mach 1-r.
76
232561414
Nut-stop Elastic Din.985 Mach 1-r.
77
504151826
Supp.poignee So*supp-handle Weld Mach 1-r.
78
572106000
Douille Epaul. *flange-bushing Mach 1-r.
79
504147700
Poignee Soudee *handle-weld. Mach 1-r.
80
570064600
Poignee *grip Mach 1-r.
81
503095100
Rondelle *washer Mach 1-r.
82
371800800
Goupille Fendue*pin-cotter Mach 1-r.
83
414792102
Avertiss.ac-bt *horn-ac-bt Mach 1-r.
84
414805101
Ecrou Plastique*nut-plastic. Mach 1-r.
85
515175318
Interrupteur *switch Mach 1-r.
86
250100012
Ecrou Laiton *nut-brass Mach 1-r.
87
507031900
Frein De Vis *lock-tab Mach 1-r.
88
207103544
Screw-hex.cap Iso.4017 Mach 1-r.
90
293800005
Loctite 271 *loctite-271 Mach 1-r.
91
293800060
Loctite 243 *loctite-243 Mach 1-r.
92
413706100
Graisse Lith. *grease Lith. Mach 1-r.
93
413803300
Huile Chaine *oil-chain Mach 1-r.
89
296000309
Scell.silicone *seal-silicone Mach 1-r.
