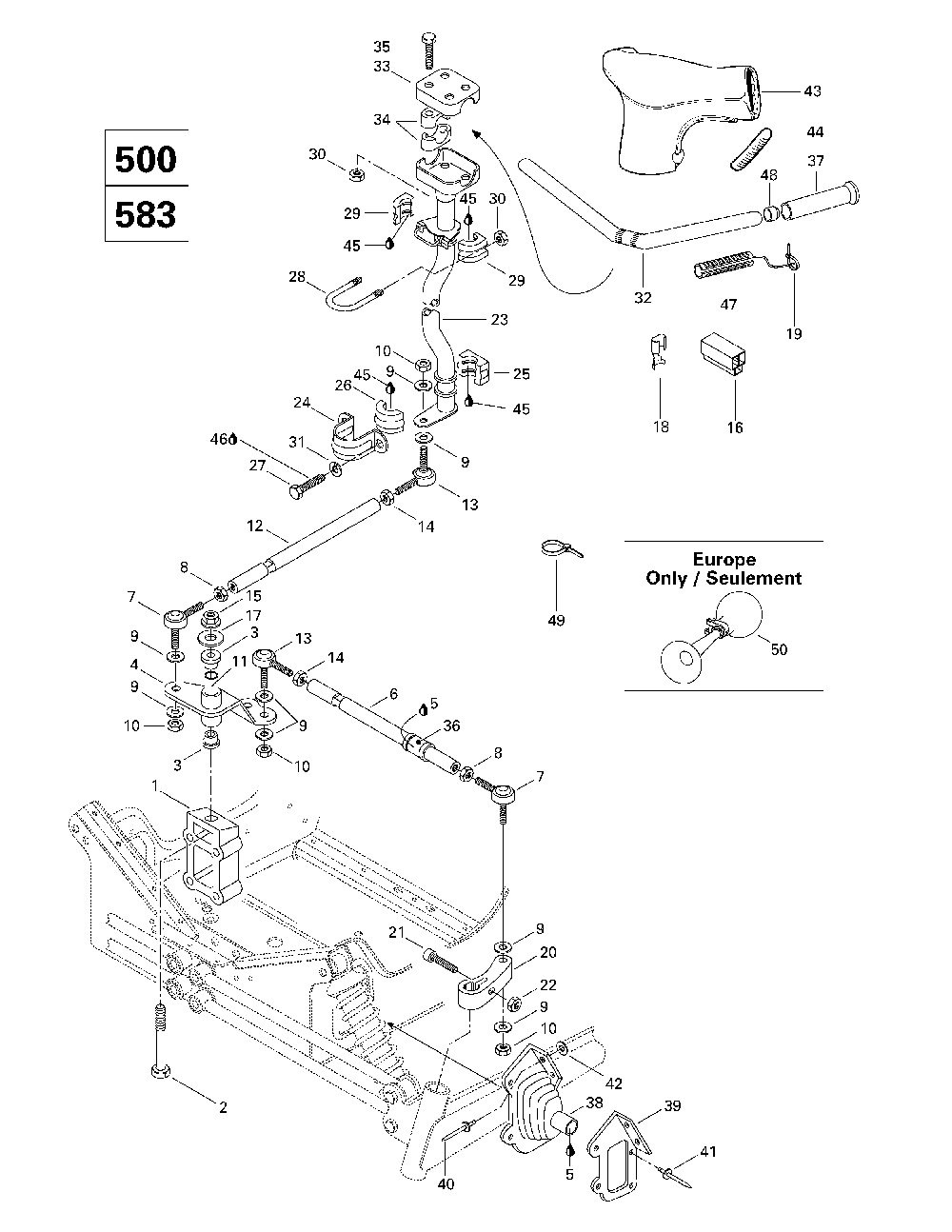

07- steering system (500, 583)

Ski-Doo (Bombardier) MX Z 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
506121400
Bloc Attache Us*block-mach. Mx Z 500. Mx Z 583.
2
207028544
Screw-hex.cap Iso.4014 Mx Z 500. Mx Z 583.
3
415041100
Coussinet *cushion Mx Z 500. Mx Z 583.
4
506133800
Bras Pivot Soud*arm-pivot Weld Mx Z 500. Mx Z 583.
5
293550030
Graisse *grease Mx Z 500. Mx Z 583.
6
506130200
Barre Accoupl. *rod-tie Mx Z 500. Mx Z 583.
7
506151492
Joint Rotule *ball Joint Mx Z 500. Mx Z 583.
8
732610010
Nut-jam Hexagonal Rh. Mx Z 500. Mx Z 583.
9
503175800
Rondelle *washer Mx Z 500. Mx Z 583.
10
232501416
Nut-stop Elastic Din.985 Mx Z 500. Mx Z 583.
11
415038000
Pivot *pivot Mx Z 500. Mx Z 583.
12
506110800
Barre Accoupl. *rod-tie Mx Z 500. Mx Z 583.
13
506151495
Joint Rotule *ball Joint Mx Z 500. Mx Z 583.
14
250100016
Nut-jam Hexagonal Lh. Mx Z 500. Mx Z 583.
15
232521414
Nut-stop Elastic Din.985 Mx Z 500. Mx Z 583.
16
409204300
Logement Femel.*housing-female Mx Z 500. Mx Z 583.
17
506136400
Rondelle *washer Mx Z 500. Mx Z 583.
18
561503100
Cosse Femelle *terminal-femal. Mx Z 500. Mx Z 583.
19
293750001
Tie Rap 94mm *tie-rap 94mm Mx Z 500. Mx Z 583.
20
506144800
Bras Direct.dr.*arm-steer.rh Mx Z 500. Mx Z 583.
506144900
Bras Direct.ga.*arm-steer.lh Mx Z 500. Mx Z 583.
21
205083544
Screw-socket Hd.din.912 Mx Z 500. Mx Z 583.
22
233281414
Nut-flange Elastic Din.6926 Mx Z 500. Mx Z 583.
23
506128000
Arbre Direction*tube-main Black Mx Z 500. Mx Z 583.
24
517126200
Support Retenue*support-retainer Mx Z 500. Mx Z 583.
25
572064400
Douille *bushing Mx Z 500. Mx Z 583.
26
572064500
Douille *bushing Mx Z 500. Mx Z 583.
27
207182044
Screw-hex.cap Din.933 Mx Z 500. Mx Z 583.
28
506060600
Bride En U *u-clamp Mx Z 500. Mx Z 583.
29
572067100
Demi-douille *half-bushing Mx Z 500. Mx Z 583.
30
232581414
Nut-stop Elastic Din.985 Mx Z 500. Mx Z 583.
31
234181401
Washer-lock Din.127b Mx Z 500. Mx Z 583.
32
506125900
Guidon *bar-handle Mx Z 500. Mx Z 583.
33
506055400
Bride Direction*clamp-steering Mx Z 500. Mx Z 583.
34
506151622
Support Guidon *steering Support Mx Z 500. Mx Z 583.
35
207085544
Screw-hex.cap Din.931 Mx Z 500. Mx Z 583.
36
572036500
Douille *bushing Mx Z 500. Mx Z 583.
37
572100500
Gaine Poignee *grip-handle Mx Z 500. Mx Z 583.
38
570024800
Cap.timon.dr. *cap-rod Tie Rh Mx Z 500. Mx Z 583.
570024900
Cap.timon.ga. *cap-rod Tie Lh Mx Z 500. Mx Z 583.
39
517241200
Plaque Cap.dr. *plate-cap.rh Mx Z 500. Mx Z 583.
517241300
Plaque Cap.ga. *plate-cap.lh Mx Z 500. Mx Z 583.
40
390910200
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 500. Mx Z 583.
41
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 500. Mx Z 583.
42
517124300
Rondelle *washer Mx Z 500. Mx Z 583.
43
572084100
Couss.securite *pad-steering Black Mx Z 500. Mx Z 583.
44
572072400
Mortaise *keyway Mx Z 500. Mx Z 583.
45
413706100
Graisse Lith. *grease Lith. Mx Z 500. Mx Z 583.
46
293800005
Loctite 271 *loctite-271 Mx Z 500. Mx Z 583.
47
515175573
Element Chauff.*heated Film Mx Z 500. Mx Z 583.
48
572081900
Bout De Guidon *end-bar Handle Mx Z 500. Mx Z 583.
49
414115200
Tie-rap 180 Mm Mx Z 500. Mx Z 583.
50
549011291
Avertisseur *horn Mx Z 500. Mx Z 583.
13
506151845
Joint Rotule *ball Joint Mx Z 500. Mx Z 583.
40
390906800
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 500. Mx Z 583.
