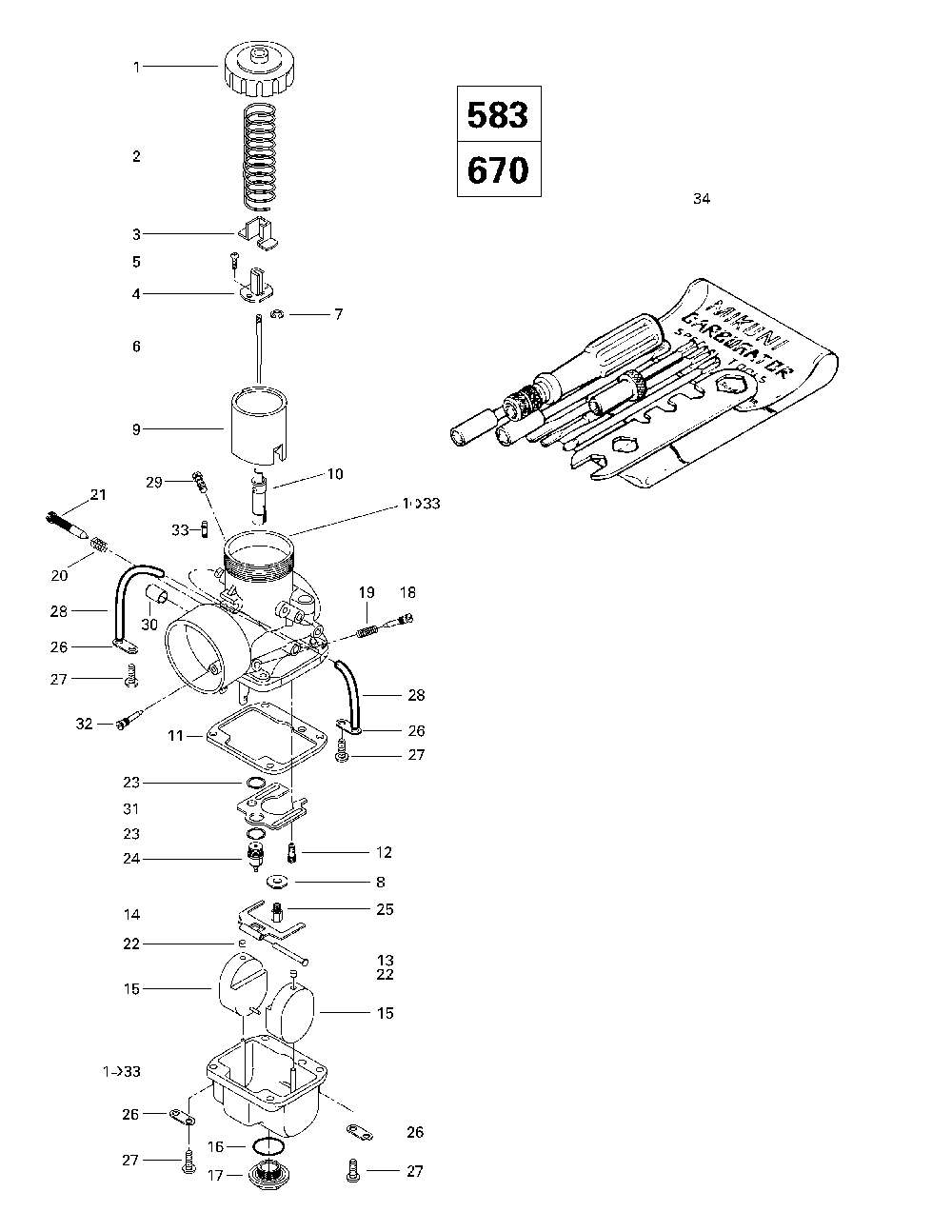

02- carburetors (583, 670)

Ski-Doo (Bombardier) MX Z 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
403136300
Carb.vm-40 *carb-vm-40 Includes 1 - 33. Mx Z 583.
403136400
Carb.vm-40 *carb-vm-40 Mx Z 583.
403136700
Carb.vm-40 *carb-vm-40 Mx Z 670.
403136800
Carb.vm-40 Mag *carb-vm-40 Mag Mx Z 670.
1
404126800
Couvercle Carb.*top-mix.chamb. Mx Z 583. Mx Z 670.
2
404156500
Ressort *spring Mx Z 583. Mx Z 670.
3
404128100
Couvercle *cover Mx Z 583. Mx Z 670.
4
404160800
Connecteur *connector Mx Z 583. Mx Z 670.
5
404121300
Vis W.rondelle*screw-with Washer Mx Z 583. Mx Z 670.
6
404157400
Aiguille *needle Mx Z 583.
404156700
Aiguille 7edy1 *needle Mx Z 670.
7
404152200
Rondelle E *ring-e Mx Z 583. Mx Z 670.
8
404116700
Rondelle *washer Mx Z 583. Mx Z 670.
9
404132300
Tiroir Acc.2.5 *piston-val.2.5 Mx Z 583. Mx Z 670.
10
404148300
Gicleur Aiguil.*jet Needle Mx Z 583.
404151800
Gicleur Aiguil.*jet Needle Mx Z 670.
11
404104700
Joint *gasket Mx Z 583. Mx Z 670.
12
404121000
Gicleur Ralenti*jet-pilot 60 Mx Z 583. Mx Z 670.
13
404103300
Goupille Levier*pin-lever Mx Z 583. Mx Z 670.
14
404105000
Levier Flotteur*lever-float Mx Z 583. Mx Z 670.
15
404105400
Flotte *float Mx Z 583. Mx Z 670.
16
404112800
Rondelle *washer Mx Z 583. Mx Z 670.
17
404112900
Vis Bouchon *screw-drain Plug Mx Z 583. Mx Z 670.
18
404149000
Vis Air *screw-air Mx Z 583. Mx Z 670.
19
404139800
Ressort *spring Mx Z 583. Mx Z 670.
20
404101700
Ressort *spring Mx Z 583. Mx Z 670.
21
404125200
Vis Etrangleur*screw-throttle Mx Z 583. Mx Z 670.
22
404105800
Capuchon *cap Mx Z 583. Mx Z 670.
23
404101600
Rondelle Siege *washer-seat Mx Z 583. Mx Z 670.
24
404147400
Pointeau Vs 1.5*valve Needle Mx Z 583. Mx Z 670.
25
404100500
Gicleur Mj 280 *jet-main 280 Mx Z 583.
404107800
Gicleur Mj 310 *jet-main 310 Mx Z 670.
404100600
Gicleur Mj 260 *jet-main 260 Mx Z 583.
404101100
Gicleur Mj 290 *jet-main 290 Mx Z 670.
26
404103000
Plaque *plate Mx Z 583. Mx Z 670.
27
404102000
Screw-w/lock *screw-w/lockwasher Mx Z 583. Mx Z 670.
28
404109800
Tuyau Aeration *tube-air Vent Mx Z 583. Mx Z 670.
29
404153400
Raccord *nipple Mx Z 583. Mx Z 670.
30
270500095
Capuchon Obtur.*cap-closure Mx Z 583. Mx Z 670.
31
404112700
Chicane *baffle Plate Mx Z 583. Mx Z 670.
32
404131700
Vis Bouchon *screw-plug Mx Z 583. Mx Z 670.
33
404158900
Filtre *filter Mx Z 583. Mx Z 670.
34
404112000
Trousse Outils *tool Kit Mx Z 583. Mx Z 670.
