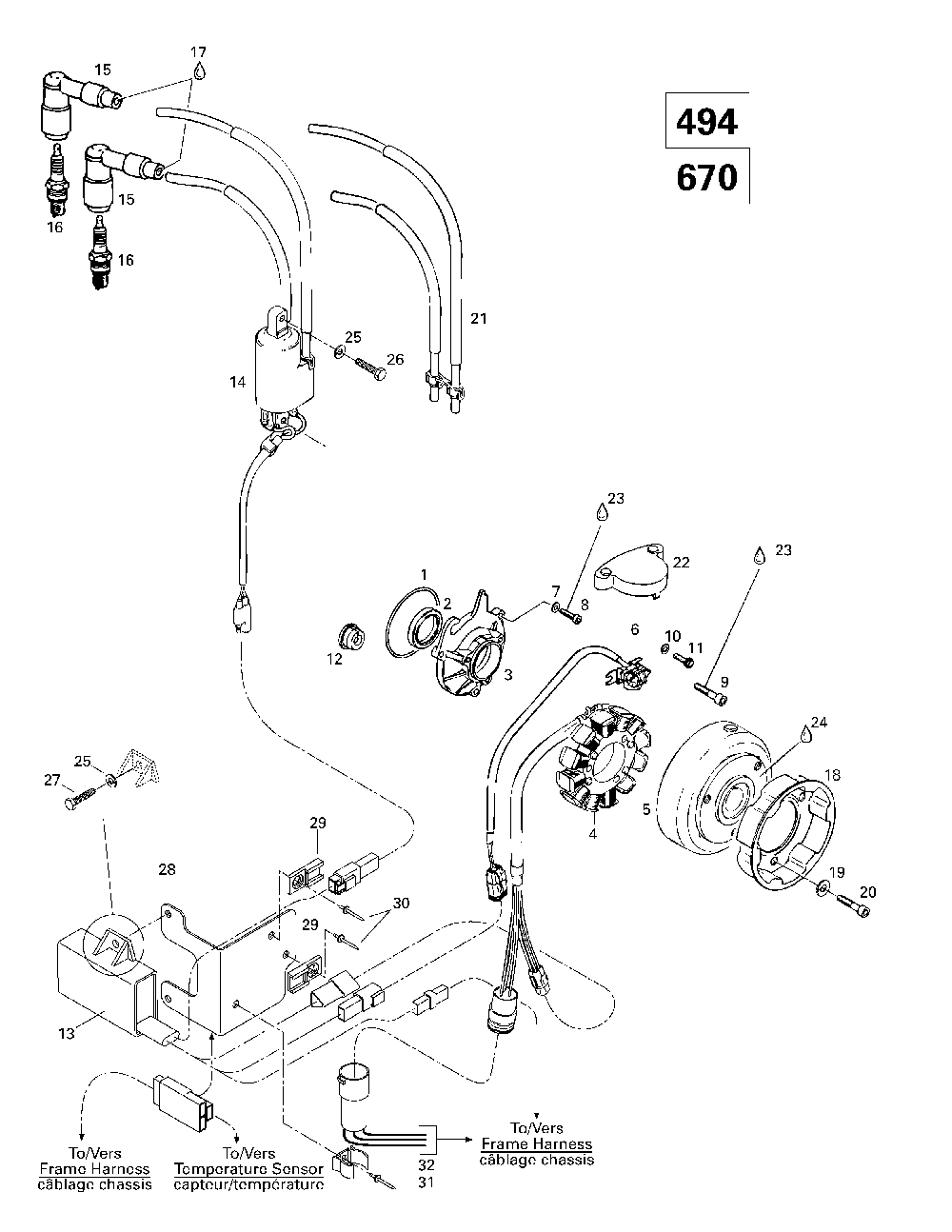

03- magneto 12v 220w (494, 670)

Ski-Doo (Bombardier) MX Z 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
420850430
Joint Torique *o Ring Mx Z 500. Mx Z 670.
2
420930695
Anneau Etanche *seal-oil Mx Z 500. Mx Z 670.
3
420810265
Plateau Armat. *plate-armat. Mx Z 500. Mx Z 670.
4
410921100
Capteur Ass. *pickup-assy. Includes 4 - 6. Mx Z 500. Mx Z 670.
4
410922200
Volant Moteur *flywheel Includes 4 - 6. Mx Z 500. Mx Z 670.
4
410922905
Plaque Reacteur*plate-stator A Includes 4 - 6. Mx Z 500. Mx Z 670.
7
420945750
Rondelle-frein *washer-lock#5 Mx Z 500. Mx Z 670.
8
420941540
Screw-allen M5x20 Din.6912 Mx Z 500. Mx Z 670.
9
420840886
Screw-cyl.m6x30 Din 6912 Mx Z 500. Mx Z 670.
10
420827800
Rondelle *washer Mx Z 500. Mx Z 670.
11
420840511
Screw-allen M5 X 16 Mx Z 500. Mx Z 670.
12
420860965
Passe-cable *grommet-cable Mx Z 500. Mx Z 670.
13
415085300
Module Allumage*module-ignition Mx Z 500. Mx Z 670.
14
415085400
Bobine Allumage*coil-ignition Mx Z 500. Mx Z 670.
15
278000237
Capuchon Bougie*spark Plug Cap Mx Z 500. Mx Z 670.
16
414961100
Bougie Br9es *spark Plug Mx Z 500. Mx Z 670.
17
413706100
Graisse Lith. *grease Lith. Mx Z 500. Mx Z 670.
18
420852416
Poulie Demarrag*pull.-starting Mx Z 500. Mx Z 670.
19
420945752
Washer-lock Din.128 Mx Z 500. Mx Z 670.
20
420841520
Screw-allen M8 X 12 Mx Z 500. Mx Z 670.
21
278002198
Fil Bougie *wire-spark Plug Mx Z 500. Mx Z 670.
22
420810700
Couvercle *cover-pick Up Mx Z 500. Mx Z 670.
23
293800060
Loctite 243 *loctite-243 Mx Z 500. Mx Z 670.
24
413711400
Loctite 648 *loctite-648 Mx Z 500. Mx Z 670.
25
234161471
Washer-lock Black Din.127b Mx Z 500. Mx Z 670.
26
207162044
Screw-hex.cap Din.933 Mx Z 500. Mx Z 670.
27
207161644
Screw-hex.cap Din.933 Mx Z 500. Mx Z 670.
28
517297000
Support Cablage*support-cable Mx Z 500. Mx Z 670.
29
270000141
Clip *clip Mx Z 500. Mx Z 670.
30
390402400
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 500. Mx Z 670.
31
390402500
Rivet-pop 1/8 *rivet-pop 1/8 Mx Z 500. Mx Z 670.
32
415089700
Attache *clip Mx Z 500. Mx Z 670.
18
420852590
Pull-starting Mx Z 500. Mx Z 670.
4
410922000
Magneto Gen. *magneto-gen. Includes 4 - 6. Mx Z 500. Mx Z 670.
5
410922200
Volant Moteur *flywheel Mx Z 500. Mx Z 670.
6
410921100
Capteur Ass. *pickup-assy. Mx Z 500. Mx Z 670.
