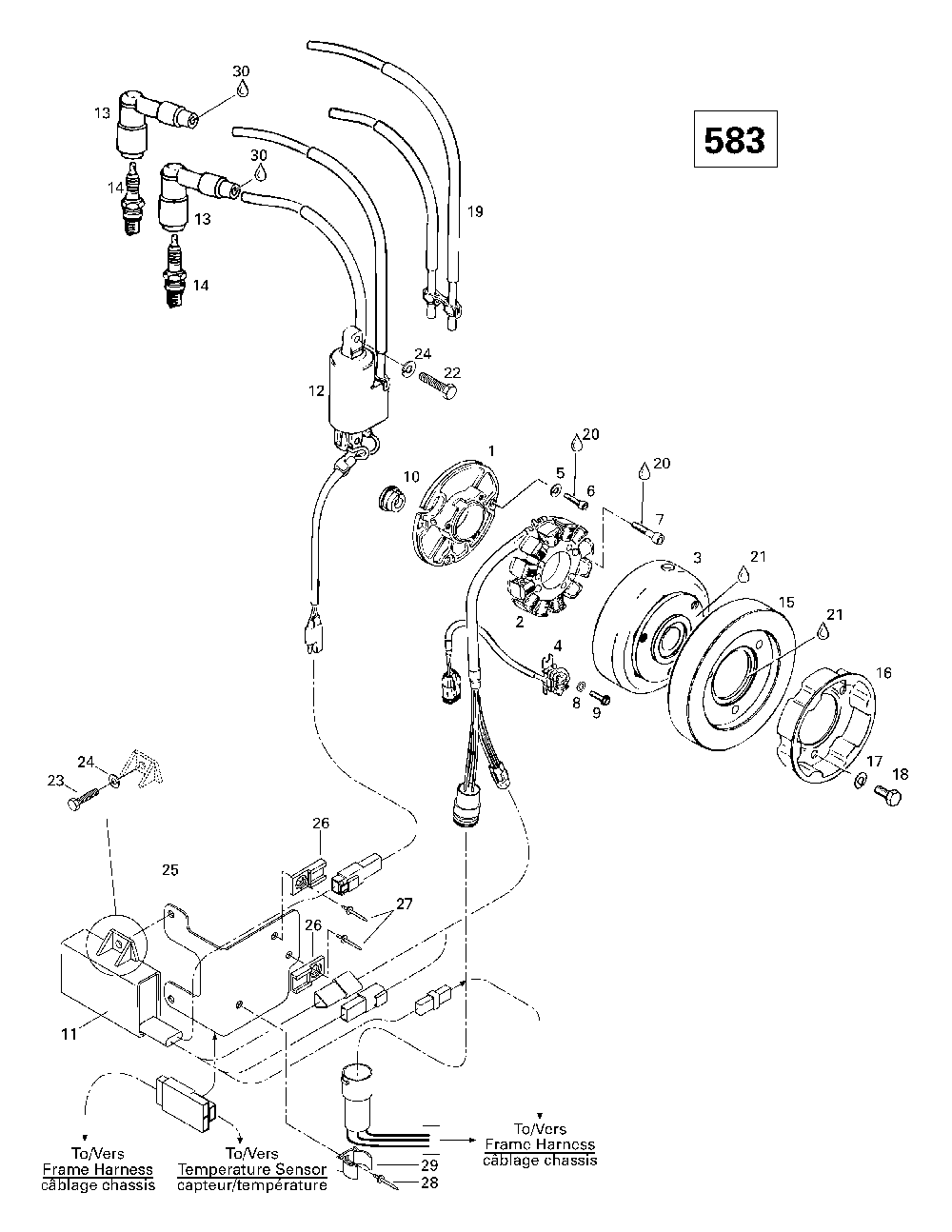

Магнето 12v 220w (583)

Ski-Doo (Bombardier) MX Z 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
420810262
Plateau Armat. *plate-armat. Mx Z 583.
2
410922905
Plaque Reacteur*plate-stator A Mx Z 583.
3
410922500
Volant Moteur *flywheel Mx Z 583.
4
410921100
Capteur Ass. *pickup-assy. Mx Z 583.
5
420945750
Rondelle-frein *washer-lock#5 Mx Z 583.
6
420941540
Screw-allen M5x20 Din.6912 Mx Z 583.
7
420840886
Screw-cyl.m6x30 Din 6912 Mx Z 583.
8
420827800
Rondelle *washer Mx Z 583.
9
420941925
Screw-tapping M5 X 16 Mx Z 583.
10
420960288
Passe-cable *grommet-cable Mx Z 583.
11
415085300
Module Allumage*module-ignition Mx Z 583.
12
415085400
Bobine Allumage*coil-ignition Mx Z 583.
13
278000237
Capuchon Bougie*spark Plug Cap Mx Z 583.
14
414961100
Bougie Br9es *spark Plug Mx Z 583.
15
420866759
Contrepoids *flywheel Mx Z 583.
16
420852411
Poulie Demarrag*pull.-starting Mx Z 583.
17
420945752
Washer-lock Din.128 Mx Z 583.
18
207182044
Screw-hex.cap Din.933 Mx Z 583.
19
278002198
Fil Bougie *wire-spark Plug Mx Z 583.
20
293800060
Loctite 243 *loctite-243 Mx Z 583.
21
413711400
Loctite 648 *loctite-648 Mx Z 583.
22
207162044
Screw-hex.cap Din.933 Mx Z 583.
23
207161644
Screw-hex.cap Din.933 Mx Z 583.
24
234161471
Washer-lock Black Din.127b Mx Z 583.
25
517297000
Support Cablage*support-cable Mx Z 583.
26
270000141
Clip *clip Mx Z 583.
27
390402400
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 583.
28
390402500
Rivet-pop 1/8 *rivet-pop 1/8 Mx Z 583.
29
415089700
Attache *clip Mx Z 583.
30
413706100
Graisse Lith. *grease Lith. Mx Z 583.
