Рама Запчасти для снегоходов Ski-Doo (Bombardier) MX Z X 400 LC (1998)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

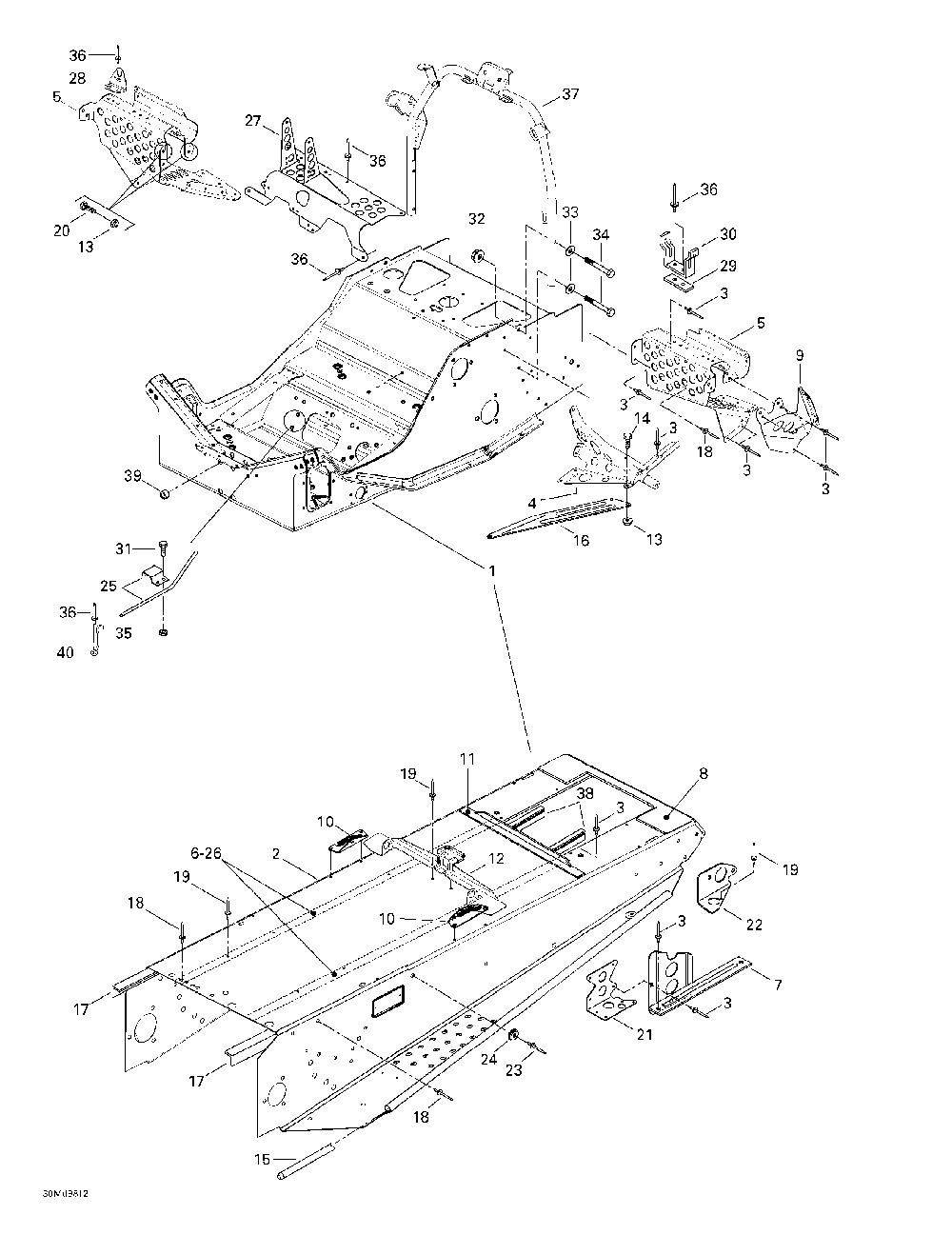

Рама

Ski-Doo (Bombardier) MX Z X 400 LC

Рама

#

oem код

название

цена

3

Заклепка 3/16

Заклепка 3/16

4

Support Gauche *lh.support

Support Gauche *lh.support

Support Droit *rh.support

Support Droit *rh.support

5

Rep.pied Dr. *footrest-rh

Rep.pied Dr. *footrest-rh

Rep.pied Ga. *footrest-lh

Rep.pied Ga. *footrest-lh

6

Prot.tunnel Sou*prot-frame Weld

Prot.tunnel Sou*prot-frame Weld

7

Attache Arr.ga.*brkt-rr Lh

Attache Arr.ga.*brkt-rr Lh

Att.arr.dr. *brkt-rr Rh

Att.arr.dr. *brkt-rr Rh

8

Capuchon Arr. *cap-rear

Capuchon Arr. *cap-rear

9

Plaque Sup. Ga.*plate-upper Lh

Plaque Sup. Ga.*plate-upper Lh

Plaque Sup. Dr.*plate-upper Rh

Plaque Sup. Dr.*plate-upper Rh

10

Attache Droite *bracket-rh

Attache Droite *bracket-rh

Attache Gauche *bracket-lh

Attache Gauche *bracket-lh

11

Traverse Tunnel*member-frame

Traverse Tunnel*member-frame

12

Attache Siege *bracket-seat

Attache Siege *bracket-seat

13

Гайка

Гайка

14

Винт

Винт

15

Renf.marche-pie*reinf.-foot.

Renf.marche-pie*reinf.-foot.

16

Plaque Renf.dr.*plate-reinf.rh

Plaque Renf.dr.*plate-reinf.rh

Plaque Renf.ga.*plate-reinf.lh

Plaque Renf.ga.*plate-reinf.lh

17

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Dr.*reinf-frame Rh

Renf.tunnel Dr.*reinf-frame Rh

18

Заклепка 3/16

Заклепка 3/16

19

Заклепка 3/16

Заклепка 3/16

20

Screw-forming

Screw-forming

21

Plaque Jonct. *plate-junct.

Plaque Jonct. *plate-junct.

Plaque Jonct. *plate-junct.

Plaque Jonct. *plate-junct.

22

Renfort Arr.dr.*reinf.-rear Rh

Renfort Arr.dr.*reinf.-rear Rh

Renfort Arr.ga.*reinf.-rear Lh

Renfort Arr.ga.*reinf.-rear Lh

23

Заклепка

Заклепка

24

Bouton Male *snap-male

Bouton Male *snap-male

25

Guide Corde Sou*guide-rope Weld.

Guide Corde Sou*guide-rope Weld.

26

Защита

Защита

27

Support Silenc.*support-muffler Assy

Support Silenc.*support-muffler Assy

28

Attache Soup.ar*brkt.-valve

Attache Soup.ar*brkt.-valve

29

Renfort *reinforcement

Renfort *reinforcement

30

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

32

Гайка

Гайка

33

Шайба

Шайба

34

Винт

Винт

35

Гайка с тефлоном

Гайка с тефлоном

37

Supp.guidon *column-upper

Supp.guidon *column-upper

38

Protecteur Rad.*protector-rad.

Protecteur Rad.*protector-rad.

39

Вставка

Вставка

40

Крюк

Крюк

31

Винт

Винт

36

Заклепка 3/16

Заклепка 3/16
