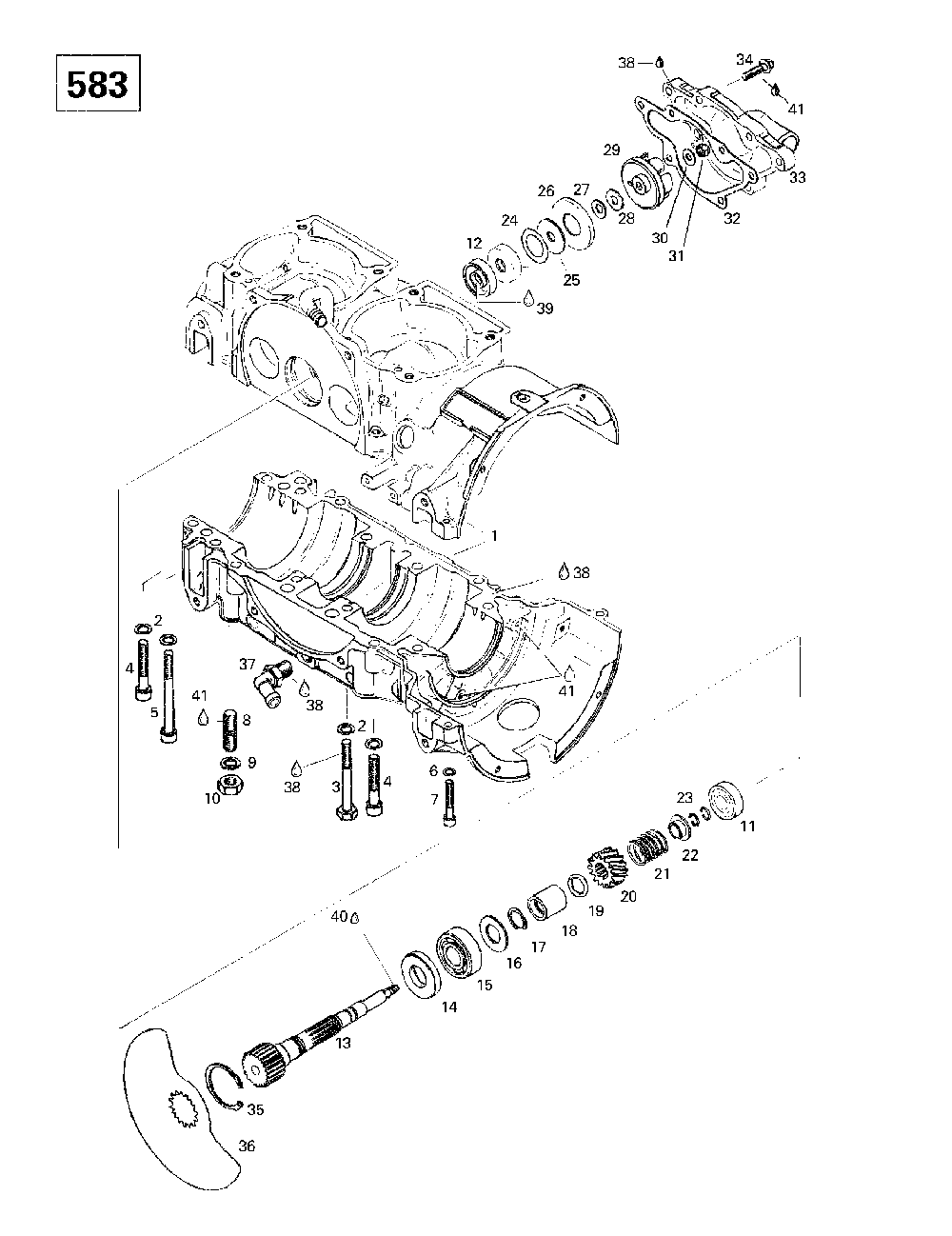

Картер, пластинчатый клапан, водяной насоси (583)

Ski-Doo (Bombardier) Summit 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
2
420945752
Washer-lock Din.128 Summit 583.
3
207086544
Screw-hex.cap Din.931 Summit 583.
4
420841561
Screw-allen M8 X 45 Summit 583.
5
420841831
Screw-allen M8x75 Summit 583.
6
420945751
Washer-lock Din.128 Summit 583.
7
420241811
Screw-socket Din.912 M6 X 35 Summit 583.
8
420940190
Stud-m10 X 29/20 Summit 583.
9
420945753
Rondelle-frein *washer-lock#10 Summit 583.
10
232006414
Nut-hexagonal Din.934 Summit 583.
11
420932797
Roulement Bille*ball Bearing Summit 583.
12
420850711
Anneau Etanche *seal-oil Summit 583.
13
420837243
Arbre Valve Rot*shaft-rotary Valve Summit 583.
14
420930580
Anneau Etanche *seal-oil Summit 583.
15
293350051
Roulement Bille*ball Bearing Summit 583.
16
420227439
Cale Epaisseur *shim Summit 583.
17
420845450
Bague D Arret *ring-lock Summit 583.
18
420847282
Douille Ecart. *bushing-spacer Summit 583.
19
293300024
Joint Torique *o-ring Summit 583.
20
420935735
Roue Dentee 14d*sprocket 14th Summit 583.
21
420938810
Ressort *spring Summit 583.
22
420827430
Siege Ressort *seat-spring Summit 583.
23
420845160
Circlip *circlip Summit 583.
24
420944462
Cale Epaisseur *shim Summit 583.
25
420850890
Rondelle *washer-rubber Summit 583.
26
420827970
Plaque *plate Summit 583.
27
420227945
Rondelle *washer Summit 583.
28
420227155
Rondelle *washer Summit 583.
29
420922036
Turbine A Eau *impeller-water Summit 583.
30
224061121
Washer-flat Summit 583.
31
420842042
Ecrou M6 *nut-locking M6 Summit 583.
32
420931355
Joint *gasket Summit 583.
33
420922551
Log.pompe Eau *hous-waterpump Summit 583.
34
420240031
Screw-hex.m6 X 25 Summit 583.
35
420845260
Bague D Arret *ring-lock Summit 583.
36
420924508
Valve Rotative *valve-rotary Summit 583.
37
420922245
Tube Angulaire *tube-angular Summit 583.
39
413707000
Dow Corning 111*dow Corning 111 Summit 583.
40
413711400
Loctite 648 *loctite-648 Summit 583.
41
293800060
Loctite 243 *loctite-243 Summit 583.
