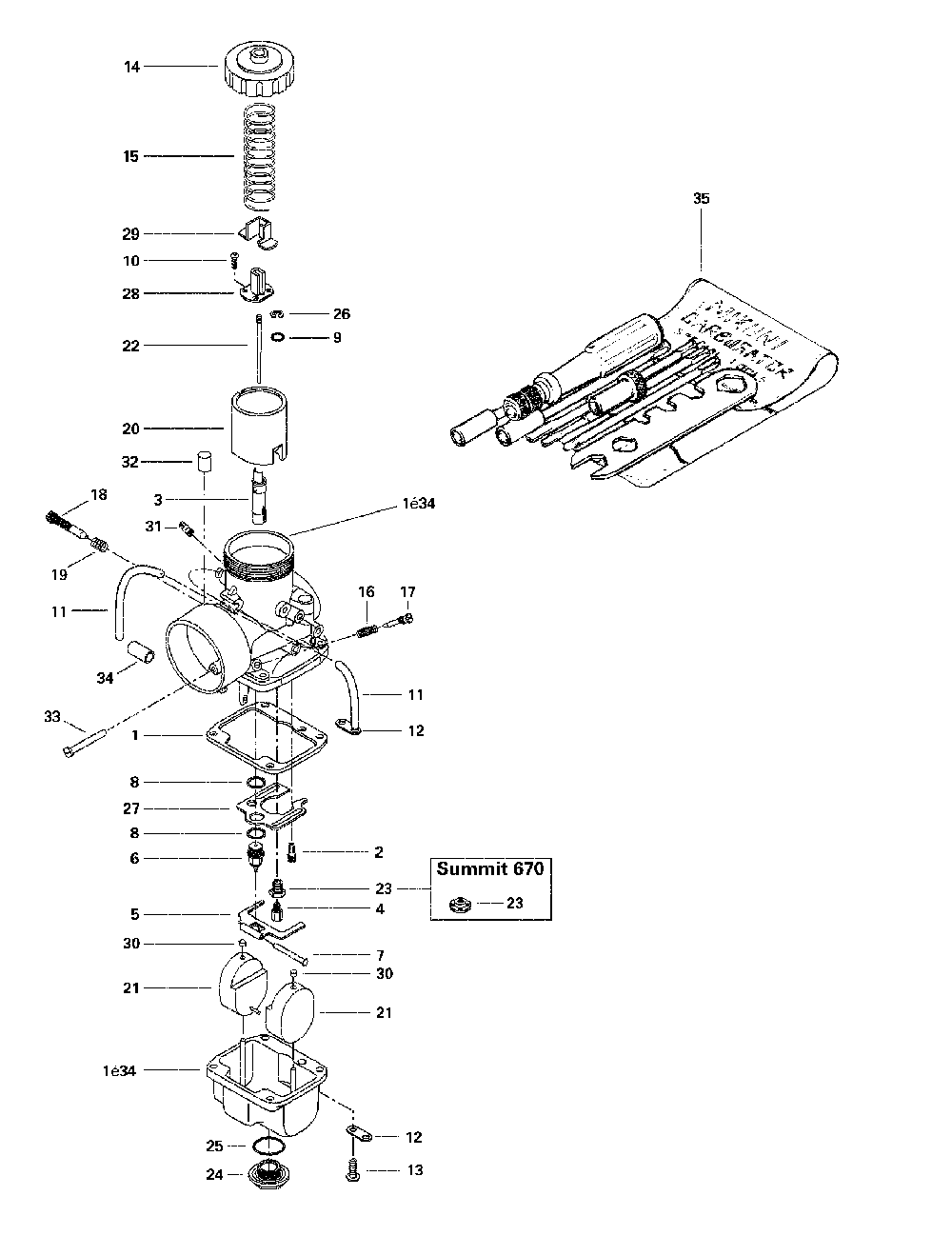

Карбюратор

Ski-Doo (Bombardier) Summit 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
403134800
Carb.vm-38 *carb-vm-38 Includes 1 - 34. Summit 500.
403134900
Carb.vm-38 *carb-vm-38 Summit 500.
1
403136500
Carb.vm-38 *carb-vm-38 Includes 1 - 34. Summit 583.
403136600
Carb.vm-38 *carb-vm-38 Summit 583.
1
403136900
Carb.vm-40 *carb-vm-40 Includes 1 - 34. Summit 670.
403137000
Carb.vm-40 *carb-vm-40 Summit 670.
1
404104700
Прокладка
2
404148100
Gicleur Ralenti*jet-pilot 75
3
404157600
Gicleur Aiguil.*jet Needle Summit 500.
404161700
Gicleur Aiguil.*jet Needle Summit 583.
404148300
Gicleur Aiguil.*jet Needle Summit 670.
4
404106000
Gicleur Mj 350 *jet-main 350 Summit 500.
404101400
Gicleur Mj 330 *jet-main 330 Summit 583.
404101300
Gicleur Mj 320 *jet-main 320 Summit 583.
404106300
Gicleur Mj 380 *jet-main 380 Summit 670.
404106200
Gicleur Mj 370 *jet-main 370 Summit 670.
5
404105000
Levier Flotteur*lever-float
6
404147400
Pointeau Vs 1.5*valve Needle
7
404103300
Палец крепления рычага
8
404101600
Rondelle Siege *washer-seat
9
404117000
Joint Tampon *packing Summit 500. Summit 583.
10
404121300
Vis W.rondelle*screw-with Washer
11
404109800
Tuyau Aeration *tube-air Vent
12
404103000
Plaque *plate
13
404102000
Screw-w/lock *screw-w/lockwasher
14
404105100
Couvercle Carb.*top-mix.chamb. Summit 500. Summit 583.
404126800
Couvercle Carb.*top-mix.chamb. Summit 670.
15
404154800
Ressort *spring Summit 500. Summit 583.
404156500
Ressort *spring Summit 670.
16
404139800
Пружина
17
404149000
Vis Air *screw-air
18
404102800
Vis Ajustement*screw-idle Speed Summit 500. Summit 583.
404151900
Vis *screw-adj. Summit 670.
19
404101700
Пружина
404132300
Tiroir Acc.2.5 *piston-val.2.5 Summit 670.
21
404105400
Flotte *float
22
404161500
Aiguille 6dhy48*needle Summit 500.
404156800
Aiguille 6fey01*needle Summit 583.
404157700
Aiguille *needle Summit 670.
23
404105500
Vis Guide *screw-guide Summit 500. Summit 583.
404116700
Rondelle *washer Summit 670.
24
404105600
Vis Bouchon *screw-drain Plug Summit 500. Summit 583.
404112900
Vis Bouchon *screw-drain Plug Summit 670.
25
404101500
Rondelle *washer Summit 500. Summit 583.
404112800
Rondelle *washer Summit 670.
26
404152400
Rondelle E *ring-e Summit 500. Summit 583.
404152200
Rondelle E *ring-e Summit 670.
404112700
Chicane *baffle Plate Summit 670.
28
404160800
Connecteur *connector
29
404122100
Couvercle *cover Summit 500. Summit 583.
404128100
Couvercle *cover Summit 670.
30
404105800
Крышка
31
404153400
Raccord *nipple
32
404158900
Фильтр
33
404131700
Vis Bouchon *screw-plug
34
270500095
Capuchon Obtur.*cap-closure
35
404112000
Комплект инструментов
