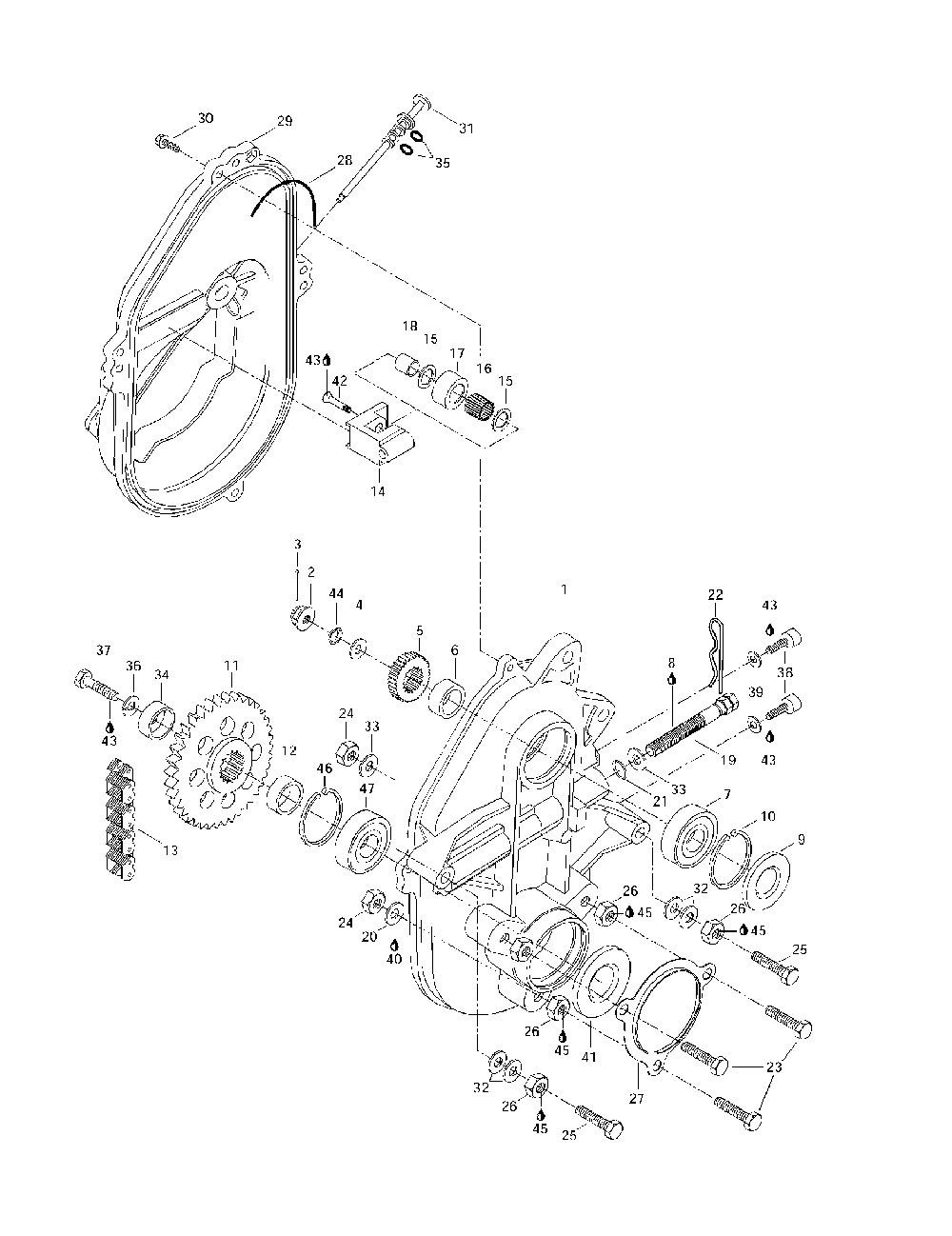

Картер трансмиссии

Ski-Doo (Bombardier) Formula 500
Ski-Doo (Bombardier)
#oem кодцена
1
504151777
Carter Chaine U*case-chain Mach. Formula 500. Formula Z. Formula 583.
2
232210414
Nut-hex.castle Thin Din.937 Formula 500. Formula 583.
3
371801300
Goupille Fendue*pin-cotter Formula 500. Formula 583.
371006300
Goupille Fendue*pin-cotter Formula 500. Formula Z.
4
504087100
Rondelle *washer Formula 500. Formula Z. Formula 583.
5
504078400
Roue Dentee 23d*sprocket 23th Formula 500.
504084300
Roue Dentee 25d*sprocket 25th Formula Z.
504085200
Roue Dentee 25d*sprocket 25th Formula 583.
6
504093400
Cale Epaisseur *shim Formula 500. Formula Z. Formula 583.
7
504152006
Roulement Bille*ball Bearing Formula 500. Formula Z. Formula 583.
8
413706100
Graisse Lith. *grease Lith. Formula 500. Formula Z. Formula 583.
9
414882800
Joint Etanche *oil Seal Formula 500. Formula 583.
414531200
Joint Etanche *oil Seal Formula 500. Formula Z.
10
371901700
Circlip Int. *circlip-int. Formula 500. Formula Z. Formula 583.
11
504057300
Roue Dentee 44d*sprocket 44th Formula 500. Formula 583.
504085500
Roue Dentee 44d*sprocket 44th Formula Z.
12
501021800
Cale Interieure*shim-inner Formula 500. Formula Z. Formula 583.
13
504151883
Chaine 72 M. *chain-driving Formula 500.
504151857
Chaine Large *chain-driv.l. Formula Z.
504151859
Chaine Etroit *chain-driv.small Formula 583.
14
504081000
Tendeur Usine *tensioner-mach Formula 500. Formula Z. Formula 583.
15
504080300
Rondelle *washer Formula 500. Formula Z. Formula 583.
16
405403000
Roul.aiguille *needle Bearing Formula 500. Formula Z. Formula 583.
17
414531300
Rouleau *roller Formula 500. Formula Z. Formula 583.
18
504080200
Entretoise *spacer Formula 500. Formula Z. Formula 583.
19
414484400
Joint Torique *o-ring Formula 500. Formula Z. Formula 583.
19
732601275
Screw-forging Formula 500. Formula Z. Formula 583.
20
234001460
Washer-flat Din.125a Formula 500. Formula Z. Formula 583.
22
414575600
Goup.surete *pin-hair Formula 500. Formula Z. Formula 583.
23
207104044
Screw-hex.cap Iso.4017 Formula 500. Formula Z. Formula 583.
24
233601416
Nut-locking Elastic Din.982 Formula 500. Formula Z. Formula 583.
25
732601111
Screw-hex.cap Iso.4017 Formula 500. Formula Z. Formula 583.
26
504083800
Entretoise *spacer Formula 500. Formula Z. Formula 583.
27
501022100
Protecteur *protector Formula 500. Formula Z. Formula 583.
28
414362300
Joint Torique *o-ring Formula 500. Formula Z. Formula 583.
29
080037100
Couvercle Moule*cover-casting Formula 500. Formula Z. Formula 583.
30
210263080
Screw-forming Hex.hd.fl.gm6174m Formula 500. Formula Z. Formula 583.
31
572092700
Bouchon Remp.as*cap-filler Assy. Formula 500. Formula Z. Formula 583.
32
504073700
Rondelle *washer Formula 500. Formula Z. Formula 583.
33
234001410
0asher-flat Din.125a Formula 500. Formula Z. Formula 583.
34
501022400
Capuchon *cap Formula 500. Formula Z. Formula 583.
35
414969400
Joint Torique *o-ring Formula 500. Formula Z. Formula 583.
36
234100602
Washer-lock Spring Din.128a-a2 Formula 500. Formula Z. Formula 583.
37
207102544
Screw-hex.cap Iso.4017 Formula 500. Formula Z. Formula 583.
38
205481046
Screw-socket Bn.hd.iso.7380 Formula 500. Formula Z. Formula 583.
39
504082900
Washer Din 7603 Formula 500. Formula Z. Formula 583.
40
413702700
Loctite 515 *loctite-515 Formula 500. Formula Z. Formula 583.
41
504151925
Anneau Etanche *oil Seal Ass Y Formula 500. Formula Z. Formula 583.
42
732601144
Screw Formula 500. Formula Z. Formula 583.
43
293800005
Loctite 271 *loctite-271 Formula 500. Formula Z. Formula 583.
44
417000900
Rondelle Res. *spring Washer Formula 500. Formula 583.
45
293800060
Loctite 243 *loctite-243 Formula 500. Formula Z. Formula 583.
46
414784900
Circlip Int. *circlip-int. Formula 500. Formula Z. Formula 583.
47
504152010
Roulement Bille*ball Bearing Formula 500. Formula Z. Formula 583.
21
414484400
Joint Torique *o-ring Formula 500. Formula Z. Formula 583.
