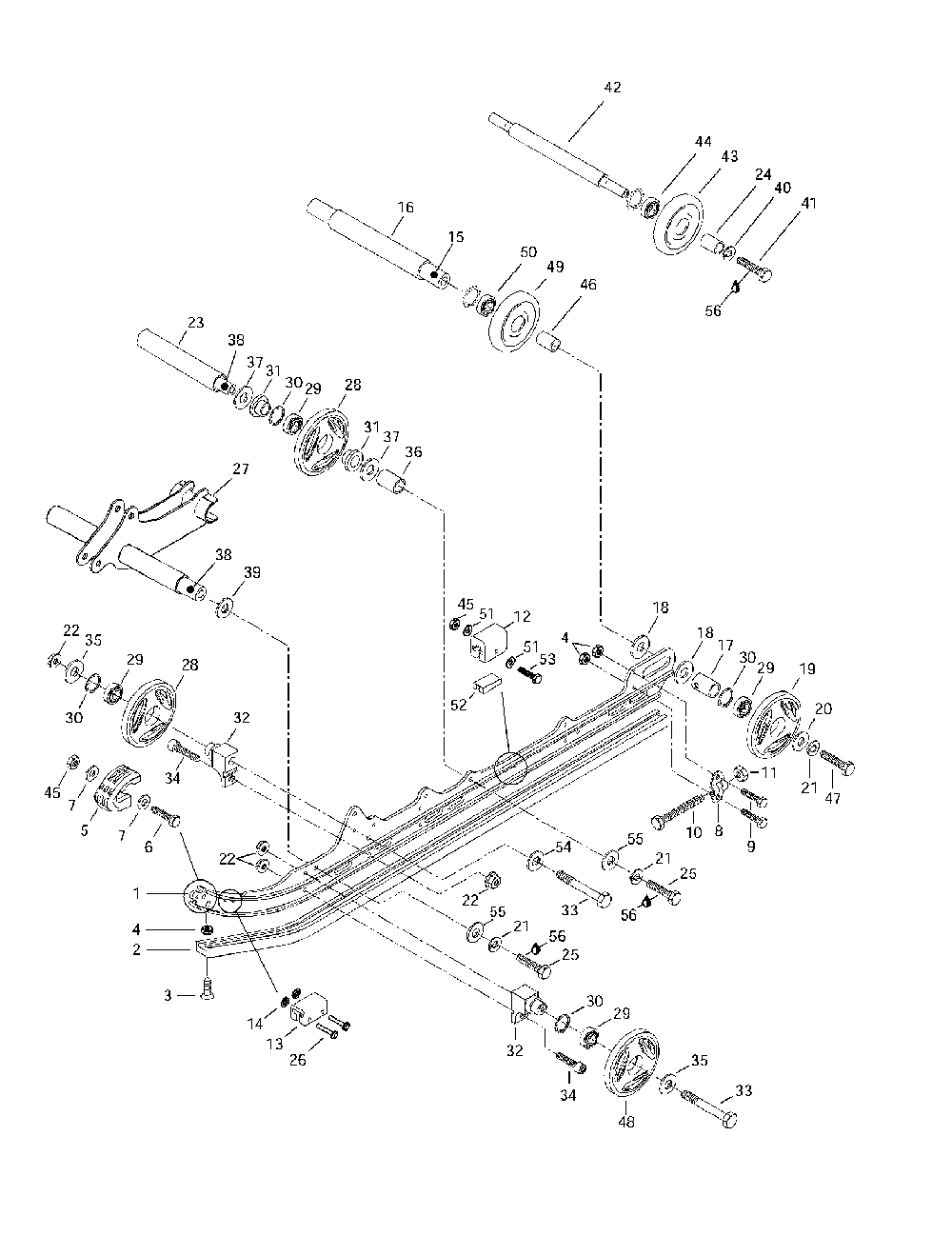

Задняя подвеска

Ski-Doo (Bombardier) Formula 500
Ski-Doo (Bombardier)
#oem кодцена
1
503166600
Rail"121"usine *runner-"121" Formula 500. Formula 500 Deluxe. Formula 583.
2
560315500
Glissiere Noir *shoe Runner Formula 500. Formula 500 Deluxe. Formula 583.
3
208562560
Screw-ctsk.ov.hd.ph.din.966a-a2 Formula 500. Formula 500 Deluxe. Formula 583.
4
232561414
Nut-stop Elastic Din.985 Formula 500. Formula 500 Deluxe. Formula 583.
5
572075400
Protecteur Rail*prot-runner Formula 500. Formula 500 Deluxe. Formula 583.
6
207152544
Screw-hex.cap Din.933 Formula 500. Formula 500 Deluxe. Formula 583.
7
391301600
Rondelle *washer Formula 500. Formula 500 Deluxe. Formula 583.
8
503155300
Tendeur *tensioner Formula 500. Formula 500 Deluxe. Formula 583.
9
207162044
Screw-hex.cap Din.933 Formula 500. Formula 500 Deluxe. Formula 583.
10
230101044
Screw-hex.cap Iso.4017 Formula 500. Formula 500 Deluxe. Formula 583.
11
233601416
Nut-locking Elastic Din.982 Formula 500. Formula 500 Deluxe. Formula 583.
12
503190905
Butee Caout As *stopper-rub As Formula 500. Formula 500 Deluxe. Formula 583.
13
570047900
Butee Caout.av.*stopper-rub.fr Formula 500. Formula 500 Deluxe. Formula 583.
14
389804300
Ecrou Pression *push-nut Formula 500. Formula 500 Deluxe. Formula 583.
15
503167900
Essieu Arriere *axle-rear Formula 500. Formula 500 Deluxe. Formula 583.
16
503139500
Entretoise Int.*spacer-inner Formula 500. Formula 500 Deluxe. Formula 583.
17
503189809
Entretoise *spacer Formula 500. Formula 500 Deluxe. Formula 583.
18
504108200
Cale Epaisseur *shim Formula 500. Formula 500 Deluxe. Formula 583.
19
570045323
Roue 165 *wheel-165 Formula 500. Formula 500 Deluxe. Formula 583.
20
503183300
Rondelle *washer Formula 500. Formula 500 Deluxe. Formula 583.
21
234100602
Washer-lock Spring Din.128a-a2 Formula 500. Formula 500 Deluxe. Formula 583.
22
233281414
Nut-flange Elastic Din.6926 Formula 500. Formula 500 Deluxe. Formula 583.
23
503153100
Entreroise *spacer Formula 500. Formula 500 Deluxe. Formula 583.
24
572048300
Entretoise *spacer Formula 500. Formula 500 Deluxe. Formula 583.
25
207103544
Screw-hex.cap Iso.4017 Formula 500. Formula 500 Deluxe. Formula 583.
26
390908700
Rivet-steel Solid Formula 500. Formula 500 Deluxe. Formula 583.
27
503167500
Support Amort. *support-shock Formula 500. Formula 500 Deluxe. Formula 583.
28
570066622
Roue 135 Aluminium*wheel 135 Aluminum Formula 500. Formula 500 Deluxe. Formula 583.
29
293350055
Ball Bearing Formula 500. Formula 500 Deluxe. Formula 583.
30
371901700
Circlip Int. *circlip-int. Formula 500. Formula 500 Deluxe. Formula 583.
31
503189534
Coussinet *cushion Formula 500. Formula 500 Deluxe. Formula 583.
32
503163600
Support Usine *support-mach. Formula 500. Formula 500 Deluxe. Formula 583.
33
207088044
Screw-hex.cap Din.931 Formula 500. Formula 500 Deluxe. Formula 583.
34
205082544
Screw-socket Hd.din.912 Formula 500. Formula 500 Deluxe. Formula 583.
35
503183100
Rondelle *washer Formula 500. Formula 500 Deluxe. Formula 583.
36
503151000
Entretoise *spacer Formula 500. Formula 500 Deluxe. Formula 583.
37
503154000
Rondelle *washer Formula 500. Formula 500 Deluxe. Formula 583.
38
503152800
Essieu De Roues*wheel-axle Formula 500. Formula 500 Deluxe. Formula 583.
39
503007900
Rondelle Trempe*washer-hard Formula 500. Formula 500 Deluxe. Formula 583.
40
234181401
Washer-lock Din.127b Formula 500. Formula 500 Deluxe. Formula 583.
41
207183044
Screw-hex.cap Din.933 Formula 500. Formula 500 Deluxe. Formula 583.
42
503153600
Axe Roue Supp. *axle-wheel Idler Formula 500. Formula 500 Deluxe. Formula 583.
43
572043500
Roue Support *wheel-idler Includes 43 - 44. Formula 500. Formula 500 Deluxe. Formula 583.
44
405404600
Roulement Bille*ball Bearing Formula 500. Formula 500 Deluxe. Formula 583.
45
232551414
Nut-stop Elastic Din.985 Formula 500. Formula 500 Deluxe. Formula 583.
46
503139600
Entretoise Int.*spacer-inner Formula 500. Formula 500 Deluxe. Formula 583.
47
250000019
Screw-hex.cap With Nylon Patch Formula 500. Formula 500 Deluxe. Formula 583.
48
570045223
Roue Rouge *wheel-red Formula 500. Formula 500 Deluxe. Formula 583.
49
503189568
Roue 165 *wheel-165 Includes 49 - 50. Formula 500. Formula 500 Deluxe. Formula 583.
51
391301700
Rondelle *washer Formula 500. Formula 500 Deluxe. Formula 583.
52
572084800
Renfort Butee *reinf.-stopper Formula 500. Formula 500 Deluxe. Formula 583.
53
207054044
Screw-hex.cap Din.931 Formula 500. Formula 500 Deluxe. Formula 583.
54
234081410
Washer-flat Din.125a Formula 500. Formula 500 Deluxe. Formula 583.
55
234001410
0asher-flat Din.125a Formula 500. Formula 500 Deluxe. Formula 583.
56
293800005
Loctite 271 *loctite-271 Formula 500. Formula 500 Deluxe. Formula 583.
10
732601017
Screw-hex.cap Iso.4017 Formula 500. Formula 500 Deluxe. Formula 583.
50
293350055
Ball Bearing Formula 500. Formula 500 Deluxe. Formula 583.
