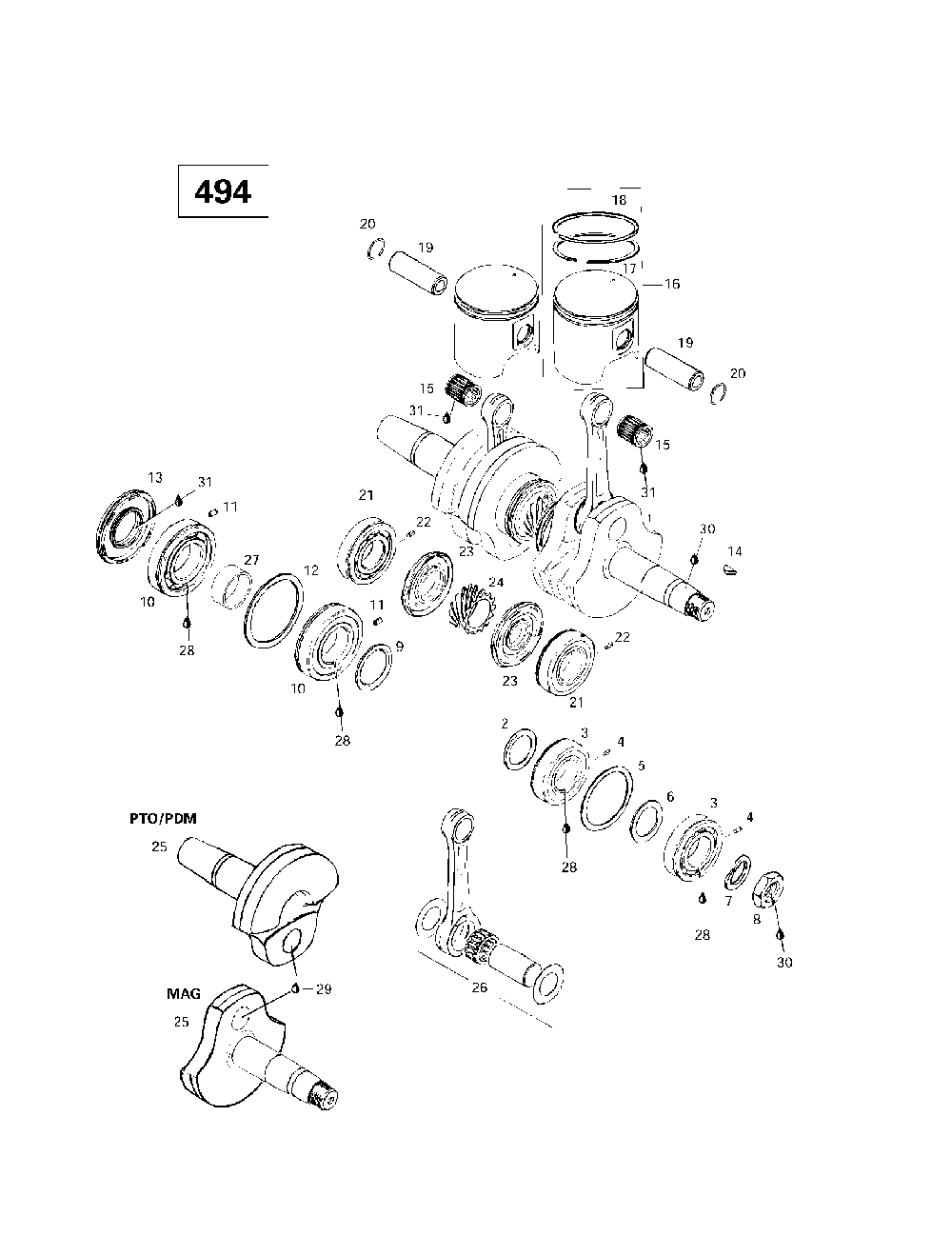

Коленчатый вал и поршень (494)

Ski-Doo (Bombardier) Formula 500 Deluxe
Ski-Doo (Bombardier)
#oem кодцена
1
421000151
Vilebreq.refait*crank-rebuild 494 96 Formula 500. Formula 500 Deluxe.
2
420827445
Bague Ecart. *ring-distance Formula 500. Formula 500 Deluxe.
3
420832538
Roulement Bille*ball Bearing Includes 3 - 4. Formula 500. Formula 500 Deluxe.
4
420929972
Goupille Ressor*pin-roll Formula 500. Formula 500 Deluxe.
5
420427684
Rondelle Ajus *washer-adj. Formula 500. Formula 500 Deluxe.
6
420827050
Disque Retenue *disk-retaining Formula 500. Formula 500 Deluxe.
7
420945759
Rondelle-frein *washer-lock 22 Formula 500. Formula 500 Deluxe.
8
420842234
Nut-hex.m22 X 1, 5 Formula 500. Formula 500 Deluxe.
9
420827760
Bague Ecart. *ring-distance Formula 500. Formula 500 Deluxe.
10
420832573
Roulement Bille*ball Bearing Includes 10 - 11. Formula 500. Formula 500 Deluxe.
12
420927710
Disque Retenue *disk-retaining Formula 500. Formula 500 Deluxe.
13
420831952
Anneau Etanche *seal-oil Formula 500. Formula 500 Deluxe.
14
420246015
Clavette *key-woodruff Formula 500. Formula 500 Deluxe.
15
420832438
Roul.aiguille *needle Bearing Formula 500. Formula 500 Deluxe.
16
420887555
Piston *piston Includes 16 - 18. Formula 500. Formula 500 Deluxe.
420887556
Piston *piston Formula 500. Formula 500 Deluxe.
17
420915985
Segment R 69.5 *ring-r 69.5 Formula 500. Formula 500 Deluxe.
420915986
Segment R 69.75*ring-r 69.75 Formula 500. Formula 500 Deluxe.
18
420815043
Segment Semi-tr*ring-semi Trap Formula 500. Formula 500 Deluxe.
420815044
Segment Semi-tr*ring-semi Trap Formula 500. Formula 500 Deluxe.
19
420916186
Axe De Piston *pin-gudgeon Formula 500. Formula 500 Deluxe.
20
420945735
Circlip Piston *circlip-piston Formula 500. Formula 500 Deluxe.
23
420831990
Anneau Etanche *seal-oil Formula 500. Formula 500 Deluxe.
24
420935748
Engrenage Cent.*gear-central Formula 500. Formula 500 Deluxe.
25
420818660
Vilebrequin Pto*crankshaft-pto Formula 500. Formula 500 Deluxe.
420818690
Vilebrequin Mag*crankshaft-mag Formula 500. Formula 500 Deluxe.
26
420886955
Ens.tige Rep. *kit-rod Repair Pto Formula 500. Formula 500 Deluxe.
420886956
Ens.tige Rep. *kit-rod Repair Mag Formula 500. Formula 500 Deluxe.
27
420847684
Douille *sleeve-dista. Formula 500. Formula 500 Deluxe.
29
413711400
Loctite 648 *loctite-648 Formula 500. Formula 500 Deluxe.
30
293800060
Loctite 243 *loctite-243 Formula 500. Formula 500 Deluxe.
31
413707000
Dow Corning 111*dow Corning 111 Formula 500. Formula 500 Deluxe.
8
420842239
Ecrou*hex Nut M22x1, 5 Formula 500. Formula 500 Deluxe.
11
420929972
Goupille Ressor*pin-roll Formula 500. Formula 500 Deluxe.
21
420832538
Roulement Bille*ball Bearing Includes 21 - 22. Formula 500. Formula 500 Deluxe.
22
420929972
Goupille Ressor*pin-roll Formula 500. Formula 500 Deluxe.
