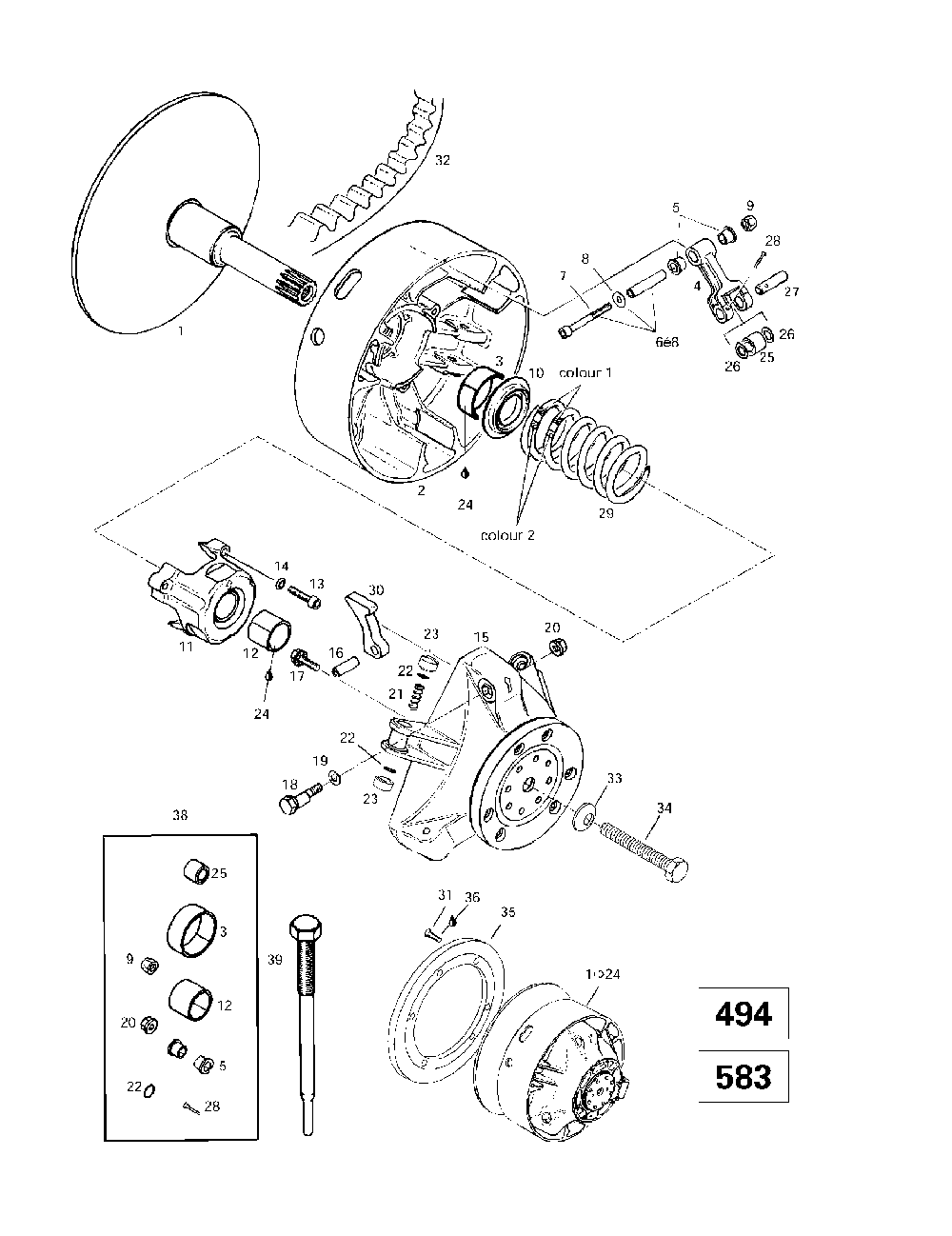

05- drive pulley (494, 583) Запчасти для снегоходов Ski-Doo (Bombardier) Formula 500 Deluxe (1997)

05- drive pulley (494, 583)

Ski-Doo (Bombardier) Formula 500 Deluxe

oem код

название

цена

417215900

Poulie Motrice *pulley-drive Includes 1 - 24. Formula 500. Formula 500 Deluxe.

417215700

Poulie Motrice *pulley-drive Formula Z. Formula 583.

417222412

Flasque Fixe Us*flange-fix.mac Formula Z. Formula 583.

417222241

Flasque Coul.as*flange-slid.as Includes 2 - 3.

417004201

Втулка

417222383

Levier Ass. *lever-assy Includes 4 - 5.

417004305

Втулка

417004800

Vis Assemble *screw-ass Y Includes 6 - 8.

Винт

Шайба

Гайка с тефлоном

Седло пружины

Couvercle *spring Cover Includes 11 - 12.

417004501

Втулка

205064086

Screw-socket Hd.din.912 Gm6174m

420245370

Шайба

417222081

Cuvette Regul.a*govern.cup Assy.

732804009

Pin-rolled Din.1481 M8 X 24

210361890

Screw-forming Hex.hd.black Oxide

Винт

Шайба

Гайка Din.6927

Пружина

Кольцо

Скользящая опора

Смазка Loctite 609

Ролик

Шайба

Палец

Шплинт

Ressort *spring Formula 500. Formula 500 Deluxe.

415034900

Ressort *spring Formula Z. Formula 583.

417005281

Rampe 281 *ramp-281 Formula 500. Formula 500 Deluxe.

417005286

Rampe 286 *ramp-286 Formula Z. Formula 583.

236281684

Screw-forming Bn.hd.torx Formula 500 Deluxe.

250200006

Washer-spring Conical Formula 500. Formula 500 Deluxe.

250200005

Washer-spring Conical Formula Z. Formula 583.

417120000

Boulon *bolt-pulley Drive Formula 500. Formula 500 Deluxe.

417120100

Boulon *bolt-pulley Drive Formula Z. Formula 583.

417222858

Cour.lancement *gear-ring Formula 500 Deluxe.

293800005

Loctite 271 *loctite-271 Formula 500 Deluxe.

417006100

Ens.rep.emb. *kit-clutch Rep

529007900

Extrac.poulie *puller-drive

417003900

Ролик

415043100

Cour.lancement *gear-ring 86th Formula 500 Deluxe.
