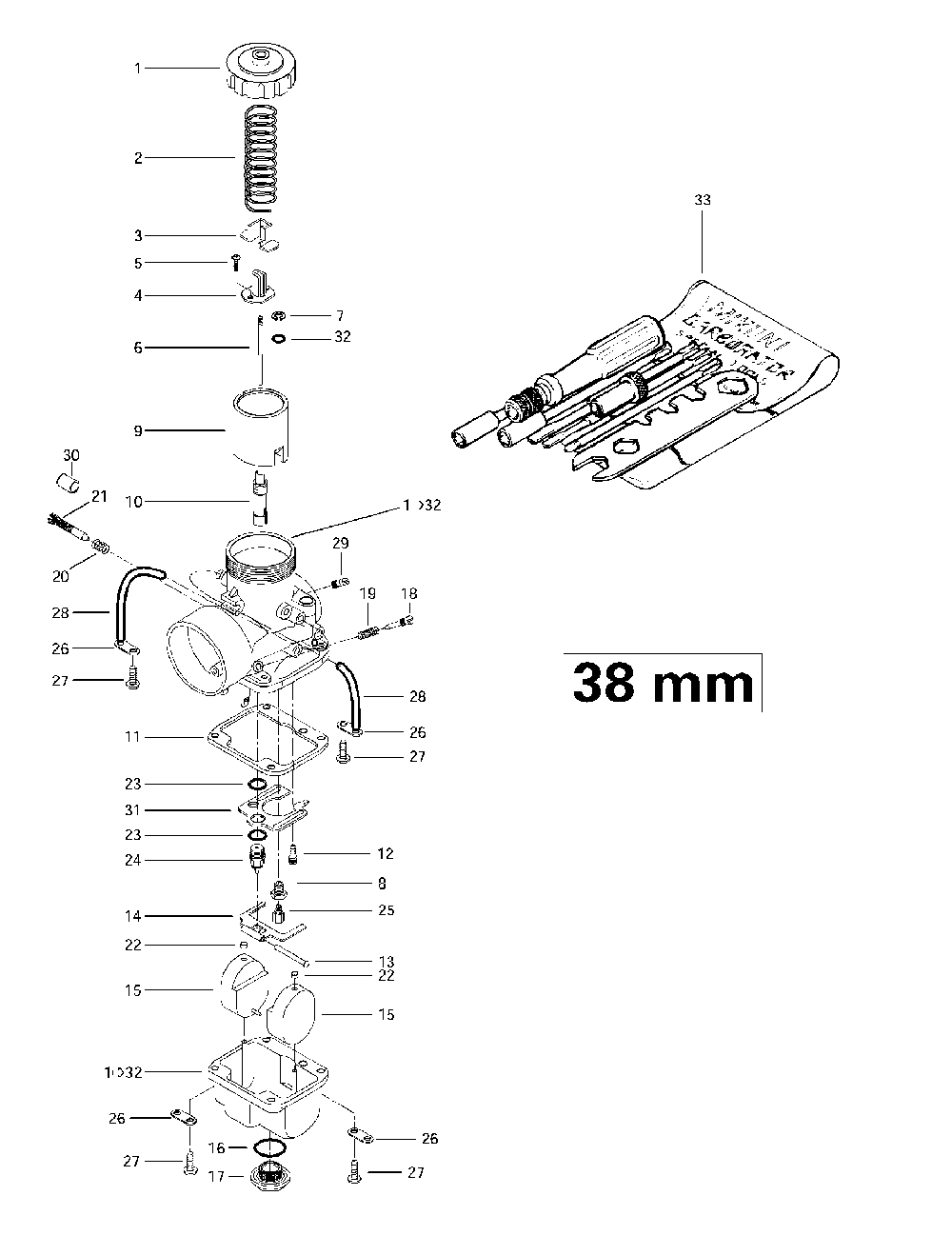

02- carburetors (38 mm)

Ski-Doo (Bombardier) Formula 583
Ski-Doo (Bombardier)
#oem кодцена
1
403130000
Carb.vm-38 *carb-vm-38 Includes 1 - 32. Formula 500. Formula 500 Deluxe.
403130100
Carb.vm-38 *carb-vm-38 Formula 500. Formula 500 Deluxe.
1
403130400
Carb.vm-38 *carb-vm-38 Includes 1 - 32. Formula 583.
403130500
Carb.vm-38 *carb-vm-38 Formula 583.
1
404105100
Couvercle Carb.*top-mix.chamb. Formula 500. Formula 500 Deluxe. Formula 583.
2
404154800
Ressort *spring Formula 500. Formula 500 Deluxe. Formula 583.
3
404122100
Couvercle *cover Formula 500. Formula 500 Deluxe. Formula 583.
4
404160800
Connecteur *connector Formula 500. Formula 500 Deluxe. Formula 583.
5
404121300
Vis W.rondelle*screw-with Washer Formula 500. Formula 500 Deluxe. Formula 583.
6
404156800
Aiguille 6fey01*needle Formula 500. Formula 500 Deluxe.
404157500
Aiguille *needle Formula 583.
7
404152400
Rondelle E *ring-e Formula 500. Formula 500 Deluxe. Formula 583.
8
404105500
Vis Guide *screw-guide Formula 500. Formula 500 Deluxe. Formula 583.
9
404131300
Tiroir Acc.2.5 *piston-val.2.5 Formula 500. Formula 500 Deluxe. Formula 583.
10
404155000
Gicleur Aiguil.*jet Needle Formula 500. Formula 500 Deluxe.
404157600
Gicleur Aiguil.*jet Needle Formula 583.
11
404104700
Joint *gasket Formula 500. Formula 500 Deluxe. Formula 583.
12
404109500
Gicleur Ralenti*jet-pilot 50 Formula 500. Formula 500 Deluxe. Formula 583.
13
404103300
Goupille Levier*pin-lever Formula 500. Formula 500 Deluxe. Formula 583.
14
404105000
Levier Flotteur*lever-float Formula 500. Formula 500 Deluxe. Formula 583.
15
404105400
Flotte *float Formula 500. Formula 500 Deluxe. Formula 583.
16
404101500
Rondelle *washer Formula 500. Formula 500 Deluxe. Formula 583.
17
404105600
Vis Bouchon *screw-drain Plug Formula 500. Formula 500 Deluxe. Formula 583.
18
404149000
Vis Air *screw-air Formula 500. Formula 500 Deluxe. Formula 583.
19
404139800
Ressort *spring Formula 500. Formula 500 Deluxe. Formula 583.
20
404101700
Ressort *spring Formula 500. Formula 500 Deluxe. Formula 583.
21
404102800
Vis Ajustement*screw-idle Speed Formula 500. Formula 500 Deluxe. Formula 583.
22
404105800
Capuchon *cap Formula 500. Formula 500 Deluxe. Formula 583.
23
404101600
Rondelle Siege *washer-seat Formula 500. Formula 500 Deluxe. Formula 583.
24
404147400
Pointeau Vs 1.5*valve Needle Formula 500. Formula 500 Deluxe. Formula 583.
25
404107800
Gicleur Mj 310 *jet-main 310 Formula 500. Formula 500 Deluxe.
404100500
Gicleur Mj 280 *jet-main 280 Formula 583.
404101100
Gicleur Mj 290 *jet-main 290 Formula 500. Formula 500 Deluxe.
404100400
Gicleur Mj 270 *jet-main 270 Formula 583.
26
404103000
Plaque *plate Formula 500. Formula 500 Deluxe. Formula 583.
27
404102000
Screw-w/lock *screw-w/lockwasher Formula 500. Formula 500 Deluxe. Formula 583.
28
404109800
Tuyau Aeration *tube-air Vent Formula 500. Formula 500 Deluxe. Formula 583.
29
404153400
Raccord *nipple Formula 500. Formula 500 Deluxe. Formula 583.
30
404152500
Capuchon *cap Formula 500. Formula 500 Deluxe. Formula 583.
32
404117000
Joint Tampon *packing Formula 500. Formula 500 Deluxe. Formula 583.
33
404112000
Trousse Outils *tool Kit Formula 500. Formula 500 Deluxe. Formula 583.
