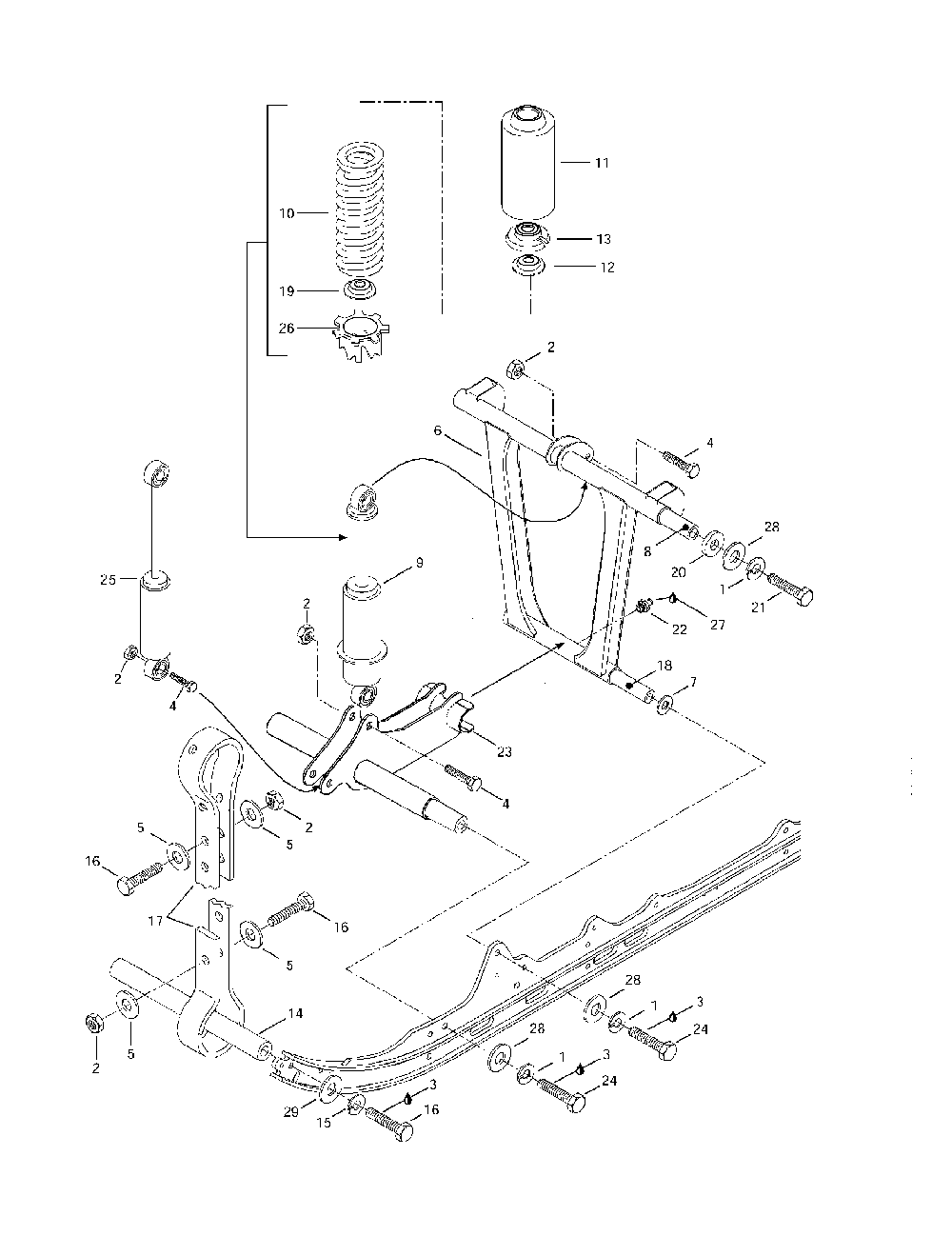

Передний рычаг задней подвески

Ski-Doo (Bombardier) Formula 583
Ski-Doo (Bombardier)
#oem кодцена
1
234100602
Washer-lock Spring Din.128a-a2 Formula 500. Formula 500 Deluxe. Formula 583.
2
232581414
Nut-stop Elastic Din.985 Formula 500. Formula 500 Deluxe. Formula 583.
3
293800005
Loctite 271 *loctite-271 Formula 500. Formula 500 Deluxe. Formula 583.
4
207084044
Screw-hex.cap Din.931 Formula 500. Formula 500 Deluxe. Formula 583.
5
517078700
Rondelle *washer Formula 500. Formula 500 Deluxe. Formula 583.
6
503167400
Bras Avant *arm-front Formula 500. Formula 500 Deluxe. Formula 583.
7
503007900
Rondelle Trempe*washer-hard Formula 500. Formula 500 Deluxe. Formula 583.
8
503190387
Arbre *shaft Formula 500. Formula 500 Deluxe. Formula 583.
9
414975700
Amortisseur *shock Formula 500. Formula 500 Deluxe. Formula 583.
10
415070100
Ressort Peint *spring-paint Formula 500. Formula 500 Deluxe. Formula 583.
11
503188930
Protecteur *protector Formula 500. Formula 500 Deluxe. Formula 583.
12
503191610
Capuchon *cap Formula 500. Formula 500 Deluxe. Formula 583.
13
706200881
Butee Ressort *spring Stopper Formula 500. Formula 500 Deluxe. Formula 583.
14
503151600
Axe *axle Formula 500. Formula 500 Deluxe. Formula 583.
15
234181401
Washer-lock Din.127b Formula 500. Formula 500 Deluxe. Formula 583.
16
207183044
Screw-hex.cap Din.933 Formula 500. Formula 500 Deluxe. Formula 583.
17
503190986
Courroie Arret *stopper Strap Formula 500. Formula 500 Deluxe. Formula 583.
18
503152800
Essieu De Roues*wheel-axle Formula 500. Formula 500 Deluxe. Formula 583.
19
503165100
Guide Ressort *guide-spring Formula 500. Formula 500 Deluxe. Formula 583.
20
414894900
Coussinet *cushion Formula 500. Formula 500 Deluxe. Formula 583.
21
207006044
Screw-hex.cap Iso.4014 Formula 500. Formula 500 Deluxe. Formula 583.
22
408200700
Graisseur *grease Fitting Formula 500. Formula 500 Deluxe. Formula 583.
23
503167500
Support Amort. *support-shock Formula 500. Formula 500 Deluxe. Formula 583.
24
207103544
Screw-hex.cap Iso.4017 Formula 500. Formula 500 Deluxe. Formula 583.
25
414802600
Coussinet *cushion Formula 500. Formula 500 Deluxe. Formula 583.
25
503188973
Amortisseur *shock Formula 500. Formula 500 Deluxe. Formula 583.
26
291001088
Bague Reglage *adjuster Ring Formula 500. Formula 500 Deluxe. Formula 583.
27
413706100
Graisse Lith. *grease Lith. Formula 500. Formula 500 Deluxe. Formula 583.
28
234001410
0asher-flat Din.125a Formula 500. Formula 500 Deluxe. Formula 583.
29
234081410
Washer-flat Din.125a Formula 500. Formula 500 Deluxe. Formula 583.
