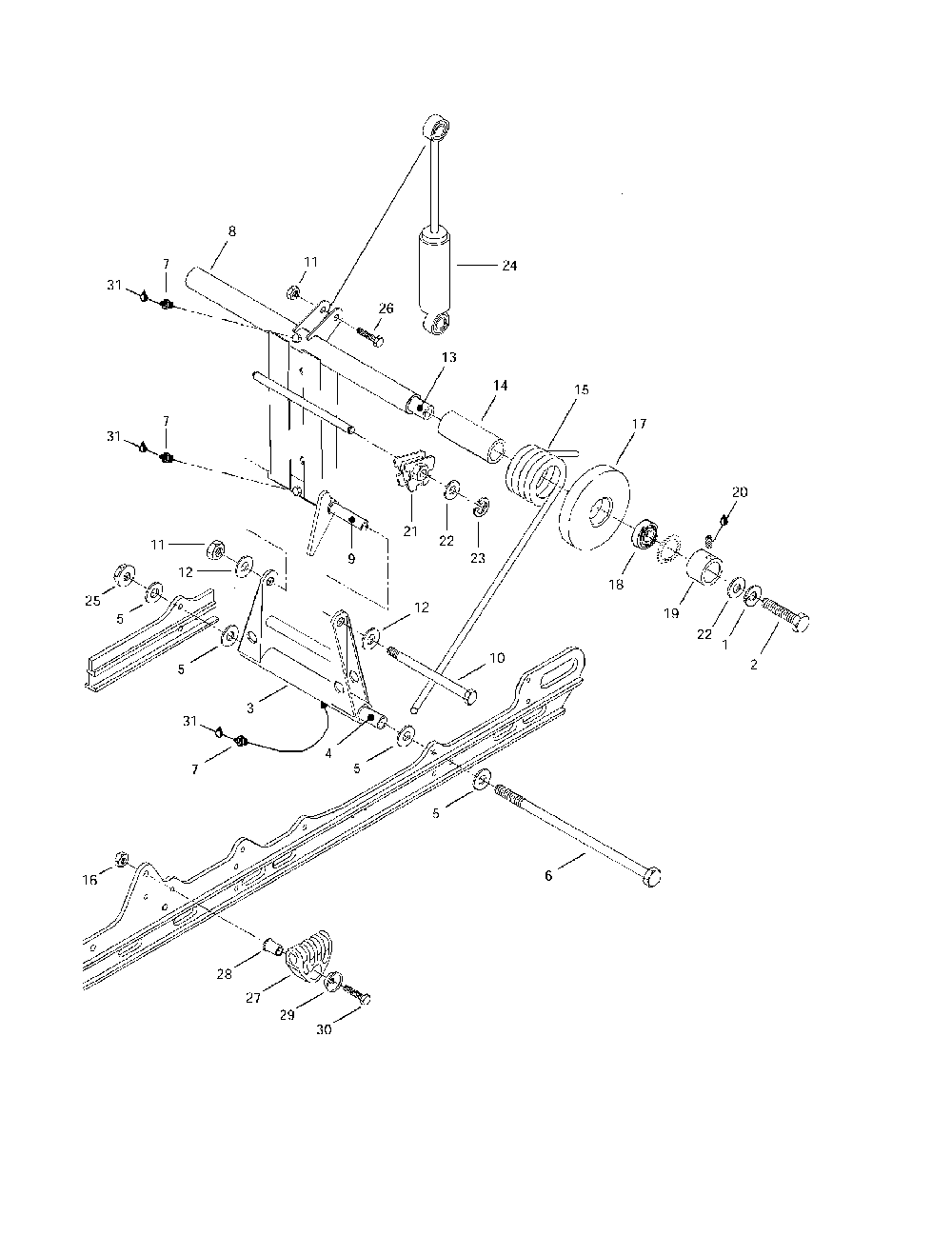

Задний рычаг задней подвески

Ski-Doo (Bombardier) Formula 583
Ski-Doo (Bombardier)
#oem кодцена
1
234100602
Washer-lock Spring Din.128a-a2 Formula 500. Formula 500 Deluxe. Formula 583.
2
207103544
Screw-hex.cap Iso.4017 Formula 500. Formula 500 Deluxe. Formula 583.
3
503191372
Jumelle Peinte *arm-pivot P. Formula 500. Formula 500 Deluxe. Formula 583.
4
503154703
Axe Inf. Jumel.*axle-piv.lower Formula 500. Formula 500 Deluxe. Formula 583.
5
224081201
Washer-flat Formula 500. Formula 500 Deluxe. Formula 583.
6
732601198
Boulon 248mm *bolt 248mm Formula 500. Formula 500 Deluxe. Formula 583.
7
408200700
Graisseur *grease Fitting Formula 500. Formula 500 Deluxe. Formula 583.
8
503170700
Bras Arriere *arm-rear Formula 500. Formula 500 Deluxe. Formula 583.
9
503144300
Axe Sup. Jumel.*axle-piv.upper Formula 500. Formula 500 Deluxe. Formula 583.
10
732601197
Boulon Court *bolt-short Formula 500. Formula 500 Deluxe. Formula 583.
11
232581414
Nut-stop Elastic Din.985 Formula 500. Formula 500 Deluxe. Formula 583.
12
234081410
Washer-flat Din.125a Formula 500. Formula 500 Deluxe. Formula 583.
13
503168700
Axe Transv.arr.*shaft-cross Rr Formula 500. Formula 500 Deluxe. Formula 583.
14
572086000
Douille *bushing Formula 500. Formula 500 Deluxe. Formula 583.
15
414943500
Ressort Dr.pein*spring-rh.p. Formula 500. Formula 500 Deluxe. Formula 583.
414943600
Ressort Ga.pein*spring-lh.p. Formula 500. Formula 500 Deluxe. Formula 583.
16
232561414
Nut-stop Elastic Din.985 Formula 500. Formula 500 Deluxe. Formula 583.
17
503189658
Roue 155 *wheel-155 Includes 17 - 18. Formula 500. Formula 500 Deluxe. Formula 583.
18
293350055
Ball Bearing Formula 500. Formula 500 Deluxe. Formula 583.
19
503168800
Bague D Appui *ring-retaining Formula 500. Formula 500 Deluxe. Formula 583.
20
293800005
Loctite 271 *loctite-271 Formula 500. Formula 500 Deluxe. Formula 583.
21
572030800
Came Reglage Ga*cam-adjust.lh. Formula 500. Formula 500 Deluxe. Formula 583.
572030900
Came Reglage Dr*cam-adjust.rh. Formula 500. Formula 500 Deluxe. Formula 583.
22
234001410
0asher-flat Din.125a Formula 500. Formula 500 Deluxe. Formula 583.
23
371907100
Circlip "e" *circlip-"e" Formula 500. Formula 500 Deluxe. Formula 583.
24
414802600
Coussinet *cushion Formula 500. Formula 500 Deluxe. Formula 583.
24
503188973
Amortisseur *shock Formula 500. Formula 500 Deluxe. Formula 583.
25
233281414
Nut-flange Elastic Din.6926 Formula 500. Formula 500 Deluxe. Formula 583.
26
207084044
Screw-hex.cap Din.931 Formula 500. Formula 500 Deluxe. Formula 583.
27
503189657
Support Ressort*support-spring Formula 500. Formula 500 Deluxe. Formula 583.
28
503152700
Axe Guide Ress.*axle-guide Spring Formula 500. Formula 500 Deluxe. Formula 583.
29
517041700
Rondelle Retenu*washer-retaine Formula 500. Formula 500 Deluxe. Formula 583.
30
207064544
Screw-hex.cap Din.931 Formula 500. Formula 500 Deluxe. Formula 583.
31
413706100
Graisse Lith. *grease Lith. Formula 500. Formula 500 Deluxe. Formula 583.
