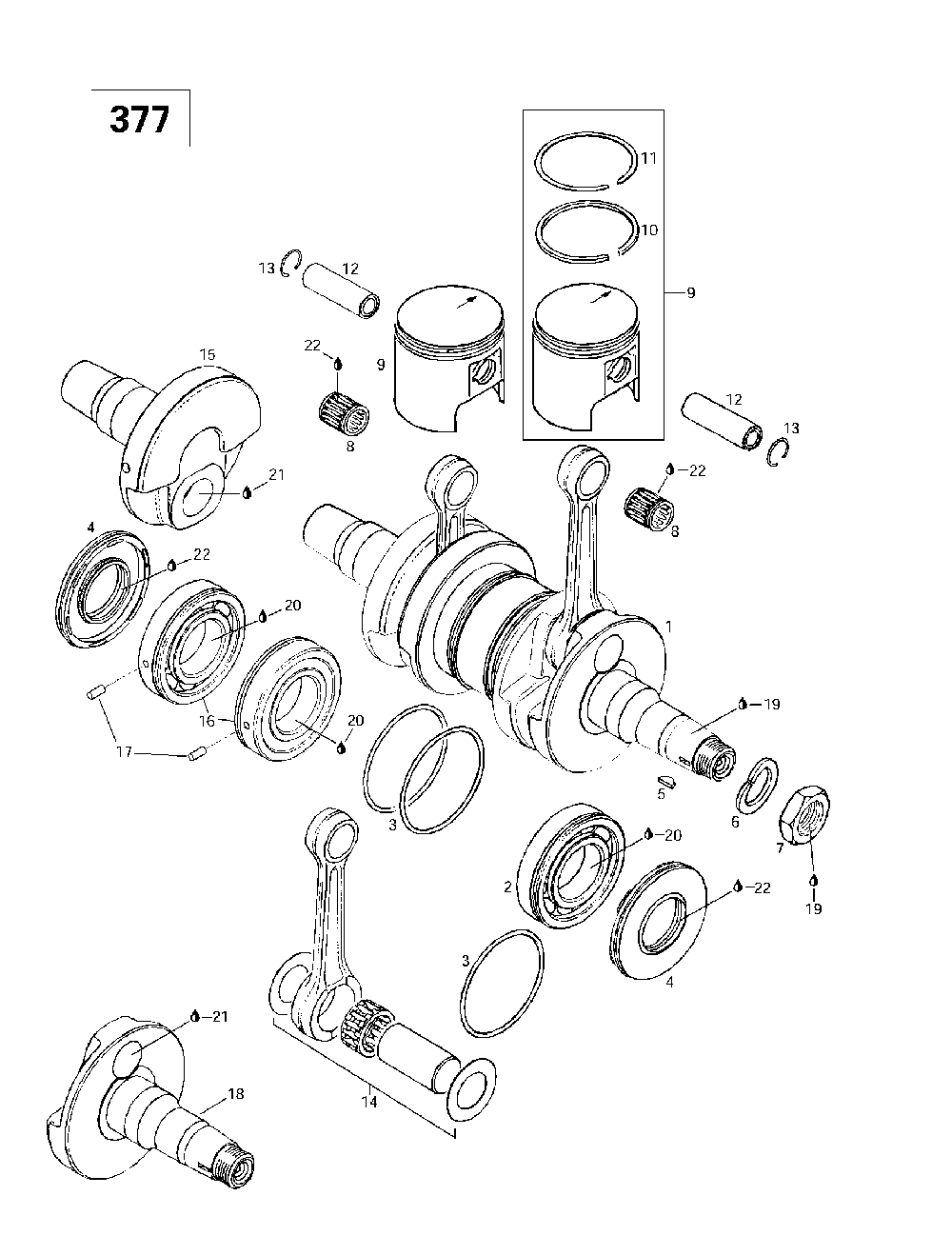

01- crankshaft and pistons (377)

Ski-Doo (Bombardier) Formula Sl
Ski-Doo (Bombardier)
#oem кодцена
1
420889630
Vilebrequin *crankshaft Includes 1 - 4. Formula S.
2
420832570
Roulement Bille*ball Bearing Formula S.
3
293300022
Joint Torique *o-ring Formula S.
4
420831952
Anneau Etanche *seal-oil Formula S.
5
420246055
Clavette *key-woodruff Formula S.
6
420945759
Rondelle-frein *washer-lock 22 Formula S.
7
420842234
Nut-hex.m22 X 1, 5 Formula S.
8
420932904
Roul.aiguille *needle Bearing Formula S.
9
420890060
Piston 61.93 *piston 61.93 Includes 9 - 11. Formula S.
420890061
Piston 62.18 *piston 62.18 Formula S.
420890062
Piston 62.43 *piston 62.43 Formula S.
10
420915895
Segment R 62.00*ring-r 62.00 Formula S.
420915896
Segment R 62.25*ring-r 62.25 Formula S.
420915897
Segment R 62.5 *ring-r 62.5 Formula S.
11
420215215
Segment Semi-tr*ring-semi Trap Formula S.
420215216
Segment Semi-tr*ring-semi Trap Formula S.
420215217
Segment Semi-tr*ring-semi Trap Formula S.
12
420916260
Axe De Piston *pin-gudgeon Formula S.
13
420945735
Circlip Piston *circlip-piston Formula S.
14
420889634
Ens.tige Rep. *kit-rod Repair Formula S.
15
420818204
Vilebrequin Pto*crankshaft-pto Formula S.
16
420832573
Roulement Bille*ball Bearing Includes 16 - 17. Formula S.
17
420929972
Goupille Ressor*pin-roll Formula S.
18
420819010
Demi-vileb.mag.*half-crank Mag Formula S.
19
293800060
Loctite 243 *loctite-243 Formula S.
21
413711400
Loctite 648 *loctite-648 Formula S.
22
413707000
Dow Corning 111*dow Corning 111 Formula S.
7
420842239
Ecrou*hex Nut M22x1, 5 Formula S.
