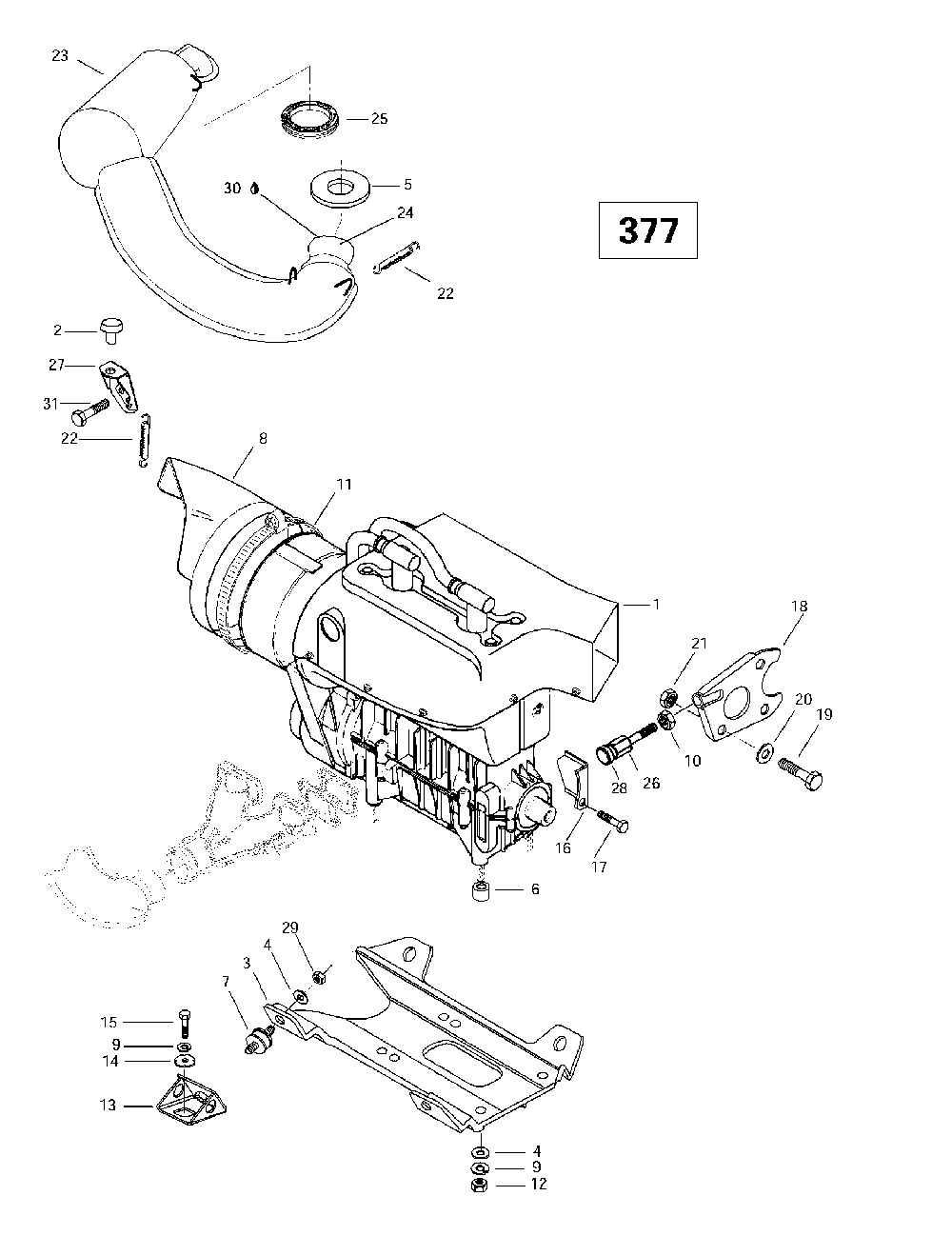

  6. 01- engine support and muffler (377)

01- engine support and muffler (377)

Ski-Doo (Bombardier) Formula Sl
Ski-Doo (Bombardier)
#oem кодцена
2
570044700
Butoir Caout. *bumper-rubber Formula S.
3
512054500
Socle *support-engine Formula S.
4
234001410
0asher-flat Din.125a Formula S.
5
570049400
Rondelle Echapp*grommet-exhaus Formula S.
6
512051900
Entretoise *spacer Formula S.
7
570128700
Tampon Ancrage *mount-rubber Formula S.
8
572058400
Deflecteur Air *deflector-air Formula S.
9
234100602
Washer-lock Spring Din.128a-a2 Formula S.
10
232120414
Nut-jam Hexagonal Din.439b Formula S.
11
408803600
Bride Serrage *clamp-gear Formula S.
12
232006414
Nut-hexagonal Din.934 Formula S.
13
512055400
Supp.moteur Sou*supp-engine Weld Formula S.
14
512056700
Rondelle-frein *washer-lock Formula S.
15
207102544
Screw-hex.cap Iso.4017 Formula S.
16
512059198
Plaque Butee So*plate-stop.weld Formula S.
17
207182044
Screw-hex.cap Din.933 Formula S.
18
517271800
Plaque App.soud*plate-weld Formula S.
19
207182544
Screw-hex.cap Din.933 Formula S.
20
234081410
Washer-flat Din.125a Formula S.
21
232581414
Nut-stop Elastic Din.985 Formula S.
22
517182100
Ressort *spring Formula S.
23
514046000
Silencieux Soud*muffler-weld Includes 23 - 24. Formula S.
24
420973530
Joint Rotule *ball Joint Formula S.
25
570039000
Grommet-exhaust D70 Formula S.
26
517244200
Vis *screw Formula S.
27
514038800
Support Silenc.*support-muffler Formula S.
28
570025100
Tige Retenue *rod-retainer Formula S.
29
233601416
Nut-locking Elastic Din.982 Formula S.
30
293800090
Enduit Etanche *sealant Formula S.
31
207006044
Screw-hex.cap Iso.4014 Formula S.
