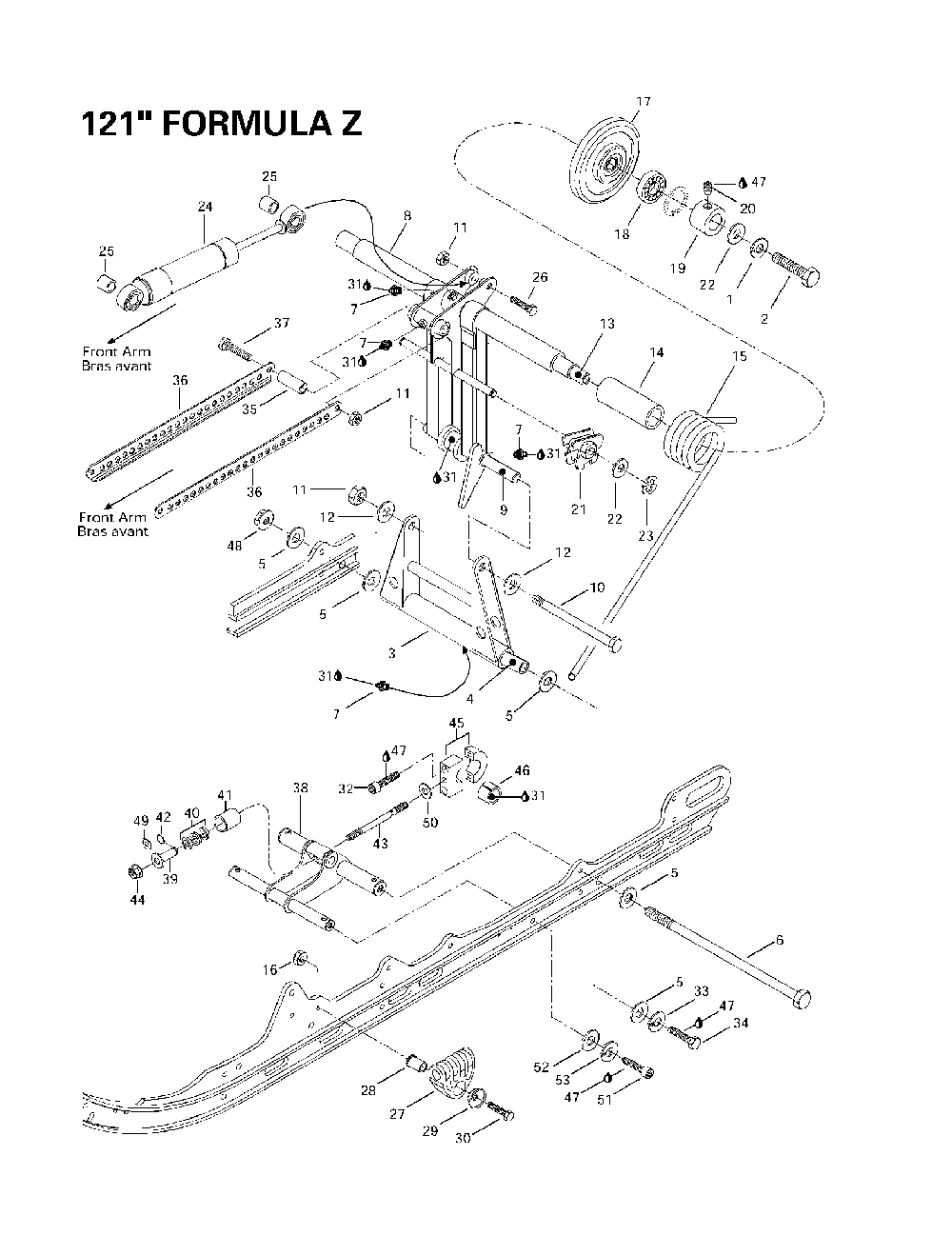

08- rear arm, rear suspension 121

Ski-Doo (Bombardier) Formula Z

08- rear arm, rear suspension 121

#

oem код

название

цена

1

Washer-lock Spring Din.128a-a2 Formula Z.

Washer-lock Spring Din.128a-a2 Formula Z.

2

Screw-hex.cap Iso.4017 Formula Z.

Screw-hex.cap Iso.4017 Formula Z.

3

Jumelle Peinte *arm-pivot P. Formula Z.

Jumelle Peinte *arm-pivot P. Formula Z.

4

Axe Inf. Jumel.*axle-piv.lower Formula Z.

Axe Inf. Jumel.*axle-piv.lower Formula Z.

5

Washer-flat Formula Z.

Washer-flat Formula Z.

6

Boulon 248mm *bolt 248mm Formula Z.

Boulon 248mm *bolt 248mm Formula Z.

7

Graisseur *grease Fitting Formula Z.

Graisseur *grease Fitting Formula Z.

8

Bras Arriere *arm-rear Formula Z.

Bras Arriere *arm-rear Formula Z.

9

Axe Sup. Jumel.*axle-piv.upper Formula Z.

Axe Sup. Jumel.*axle-piv.upper Formula Z.

10

Boulon Court *bolt-short Formula Z.

Boulon Court *bolt-short Formula Z.

11

Nut-stop Elastic Din.985 Formula Z.

Nut-stop Elastic Din.985 Formula Z.

12

Washer-flat Din.125a Formula Z.

Washer-flat Din.125a Formula Z.

13

Axe Transv.arr.*shaft-cross Rr Formula Z.

Axe Transv.arr.*shaft-cross Rr Formula Z.

14

Douille *bushing Formula Z.

Douille *bushing Formula Z.

15

Ressort Dr.pein*spring-rh.p. Formula Z.

Ressort Dr.pein*spring-rh.p. Formula Z.

Ressort Ga.pein*spring-lh.p. Formula Z.

Ressort Ga.pein*spring-lh.p. Formula Z.

16

Nut-stop Elastic Din.985 Formula Z.

Nut-stop Elastic Din.985 Formula Z.

17

Roue 155 *wheel-155 Includes 17 - 18. Formula Z.

Roue 155 *wheel-155 Includes 17 - 18. Formula Z.

18

Ball Bearing Formula Z.

Ball Bearing Formula Z.

19

Bague D Appui *ring-retaining Formula Z.

Bague D Appui *ring-retaining Formula Z.

21

Came Reglage Ga*cam-adjust.lh. Formula Z.

Came Reglage Ga*cam-adjust.lh. Formula Z.

Came Reglage Dr*cam-adjust.rh. Formula Z.

Came Reglage Dr*cam-adjust.rh. Formula Z.

22

0asher-flat Din.125a Formula Z.

0asher-flat Din.125a Formula Z.

23

Circlip "e" *circlip-"e" Formula Z.

Circlip "e" *circlip-"e" Formula Z.

24

Coussinet *cushion Formula Z.

Coussinet *cushion Formula Z.

24

Amort. Arr. *shock-rear Formula Z.

Amort. Arr. *shock-rear Formula Z.

25

Coussinet *cushion Formula Z.

Coussinet *cushion Formula Z.

26

Screw-hex.cap Din.931 Formula Z.

Screw-hex.cap Din.931 Formula Z.

27

Support Ressort*support-spring Formula Z.

Support Ressort*support-spring Formula Z.

28

Axe Guide Ress.*axle-guide Spring Formula Z.

Axe Guide Ress.*axle-guide Spring Formula Z.

29

Rondelle Retenu*washer-retaine Formula Z.

Rondelle Retenu*washer-retaine Formula Z.

30

Screw-hex.cap Din.931 Formula Z.

Screw-hex.cap Din.931 Formula Z.

31

Graisse Lith. *grease Lith. Formula Z.

Graisse Lith. *grease Lith. Formula Z.

32

Screw-socket Hd.din.912 Formula Z.

Screw-socket Hd.din.912 Formula Z.

33

Washer-lock Din.127b Formula Z.

Washer-lock Din.127b Formula Z.

34

Screw-hex.cap Din.933 Formula Z.

Screw-hex.cap Din.933 Formula Z.

35

Axe Barre Accou*shaft-tie Rod Formula Z.

Axe Barre Accou*shaft-tie Rod Formula Z.

36

Barre Accoup. *rod-tie Formula Z.

Barre Accoup. *rod-tie Formula Z.

37

Screw-hex.cap Din.931 Formula Z.

Screw-hex.cap Din.931 Formula Z.

38

Attache Soudee *bracket-weld Formula Z.

Attache Soudee *bracket-weld Formula Z.

39

Douille Soudee *bushing-weld. Formula Z.

Douille Soudee *bushing-weld. Formula Z.

40

Butee Caout. *stopper-rubber Formula Z.

Butee Caout. *stopper-rubber Formula Z.

41

Coupole *cup Formula Z.

Coupole *cup Formula Z.

42

Circlip *circlip Formula Z.

Circlip *circlip Formula Z.

44

Nut-flange Elastic Din.6926 Formula Z.

Nut-flange Elastic Din.6926 Formula Z.

46

Coussinet *cushion Formula Z.

Coussinet *cushion Formula Z.

47

Loctite 271 *loctite-271 Formula Z.

Loctite 271 *loctite-271 Formula Z.

48

Nut-flange Elastic Din.6926 Formula Z.

Nut-flange Elastic Din.6926 Formula Z.

49

Rondelle *washer Formula Z.

Rondelle *washer Formula Z.

51

Screw-socket Hd.din.912 Formula Z.

Screw-socket Hd.din.912 Formula Z.

52

Washer-flat Din.125a Formula Z.

Washer-flat Din.125a Formula Z.

53

Washer-lock Spring Din.128a-a2 Formula Z.

Washer-lock Spring Din.128a-a2 Formula Z.
