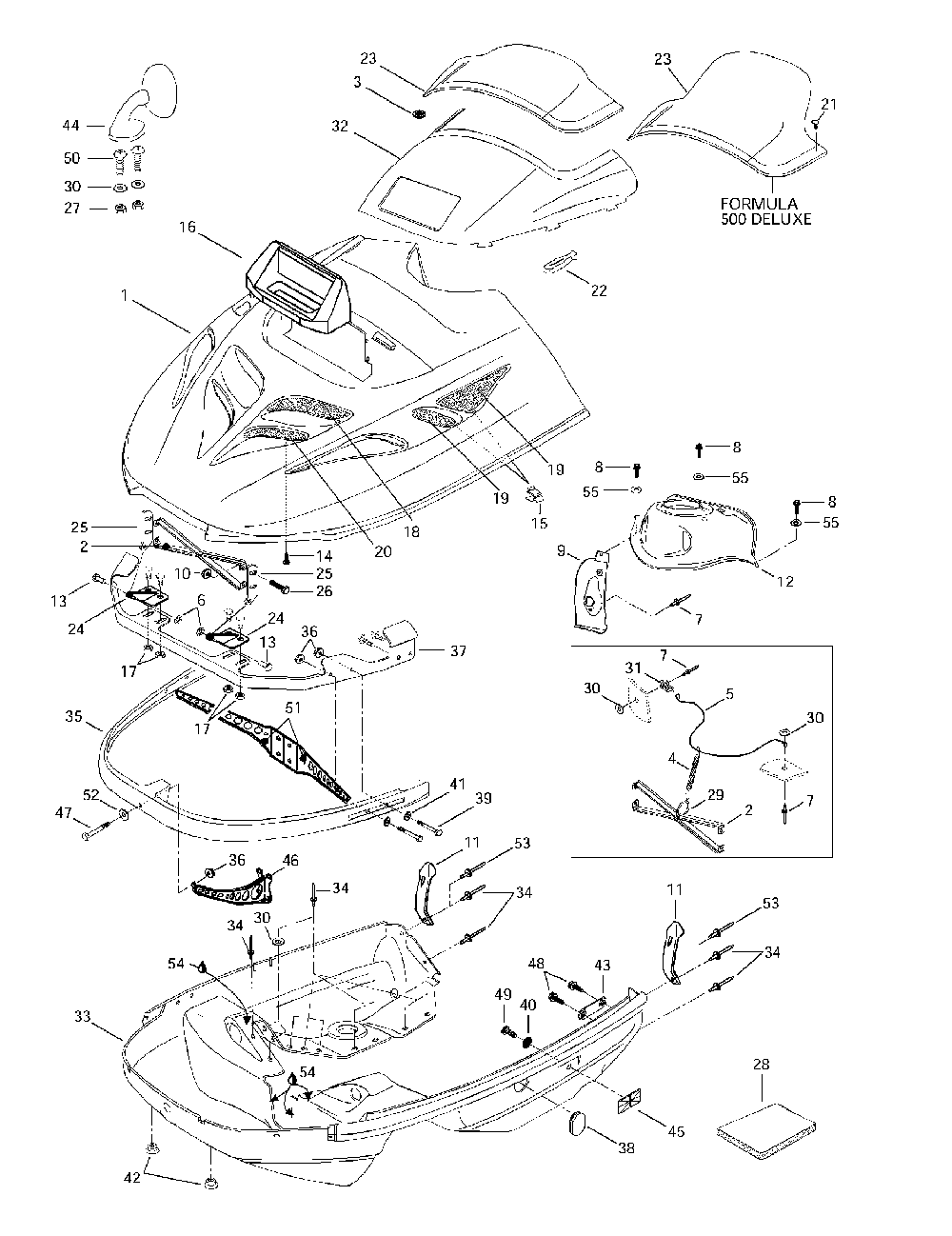

Капот и передняя консоль

Ski-Doo (Bombardier) Formula Z
Ski-Doo (Bombardier)
#oem кодцена
1
572077137
Capot *hood Formula 500. Formula 583.
572077142
Capot *hood Formula 500 Deluxe.
572077133
Capot *hood Formula Z.
2
517278100
Renf. Capot *reinf.-hood
3
732610072
Ecrou Pression *push Nut Formula 500. Formula Z. Formula 583.
4
415043300
Пружина
5
414212300
Cable Retenue *cable-retainer
6
389804300
Ecrou Pression *push-nut
7
390409600
Заклепка 3/16
8
732600030
Screw-forming
9
572052101
Console Manette*dash-handle
10
233251414
Гайка
11
570027100
Loquet De Capot*latch-hood
12
517302542
Console Inter. *dash-switch
13
390906200
Rivet-steel Flat Head
14
732601210
Винт
15
414227300
Пружина
16
415044800
Mousse Etanch. *foam-sealing
17
233261414
Гайка
18
517277000
Grille Sup.dr. *grill-upper Rh
517277100
Grille Sup.ga. *grill-upper Lh
19
517280200
Grille Lat.noir*grill-side Black
20
517265800
Grille Avant Dr*grill-fr.rh
517265900
Grille Avant Ga*grill-fr.lh
21
414939500
Dard Pare-brise*dart-windshiel 1=1 Pac Formula 500 Deluxe.
22
570023800
Loquet Pare-bri*latch-windshield
23
414795900
Pare-brise Bas *windshield-low Formula 500. Formula Z. Formula 583.
414939100
Pare-brise Haut*windshield-hi. Formula 500 Deluxe.
24
517289900
Charniere Inf.s*hinge-low.weld
25
517261100
Charniere Sup. *hinge-upper
26
207151644
Винт
27
232541414
Nut-stop Elastic Din.985 Formula 500 Deluxe.
28
414632400
Шумоизоляция
414631900
Шумоизоляция
29
415058300
Кольцо
30
517124300
Шайба
31
517262800
Кронштейн
32
572101800
Supp.pare-brise*support-windsh
33
502006578
Coque *pan-botton Formula 500. Formula 500 Deluxe.
502006580
Coque *pan-botton Formula Z.
502006572
Coque *pan-botton Formula 583.
34
390906800
Rivet-pop 3/16 *rivet-pop 3/16 Formula 500. Formula 500 Deluxe.
35
517265400
Бампер передний
37
517296600
Attache Charn.s*brkt-hinge Weld
38
570053701
Capuchon Coque *cap-pan Bottom Formula 500. Formula 500 Deluxe.
570053703
Capuchon Coque *cap-pan Bottom Formula Z.
570053702
Capuchon Coque *cap-pan Bottom Formula 583.
39
207063044
Винт
40
234451418
Washer-lock Serrated Din.6798a
41
224061121
Шайба
42
572072100
Крышка
43
517267100
Attache Lateral*bracket-side
44
414971910
Retroviseur Dr.*mirror-rh Formula 500 Deluxe.
414972010
Retroviseur Ga.*mirror-lh. Formula 500 Deluxe.
45
414510200
Reflecteur Amb.*reflector-ambe
46
517294500
Supp. Avant *support-front
47
207064044
Винт
48
210261680
Винт
49
208651041
Screw-pan Hd.ph.din.7985a
50
208041641
Screw-chse.hd.sltd.din.84a Formula 500 Deluxe.
51
517295000
Суппорт левый
517295100
Суппорт правый
52
224061201
Шайба
53
293150100
Rivet-pop 3/16 *pop Rivet 3/16 Formula 500. Formula 500 Deluxe.
55
391301600
Шайба
572076205
Coque *pan-botton Formula Z.
390906800
Rivet-pop 3/16 *rivet-pop 3/16 Formula Z. Formula 583.
36
233261414
Гайка
