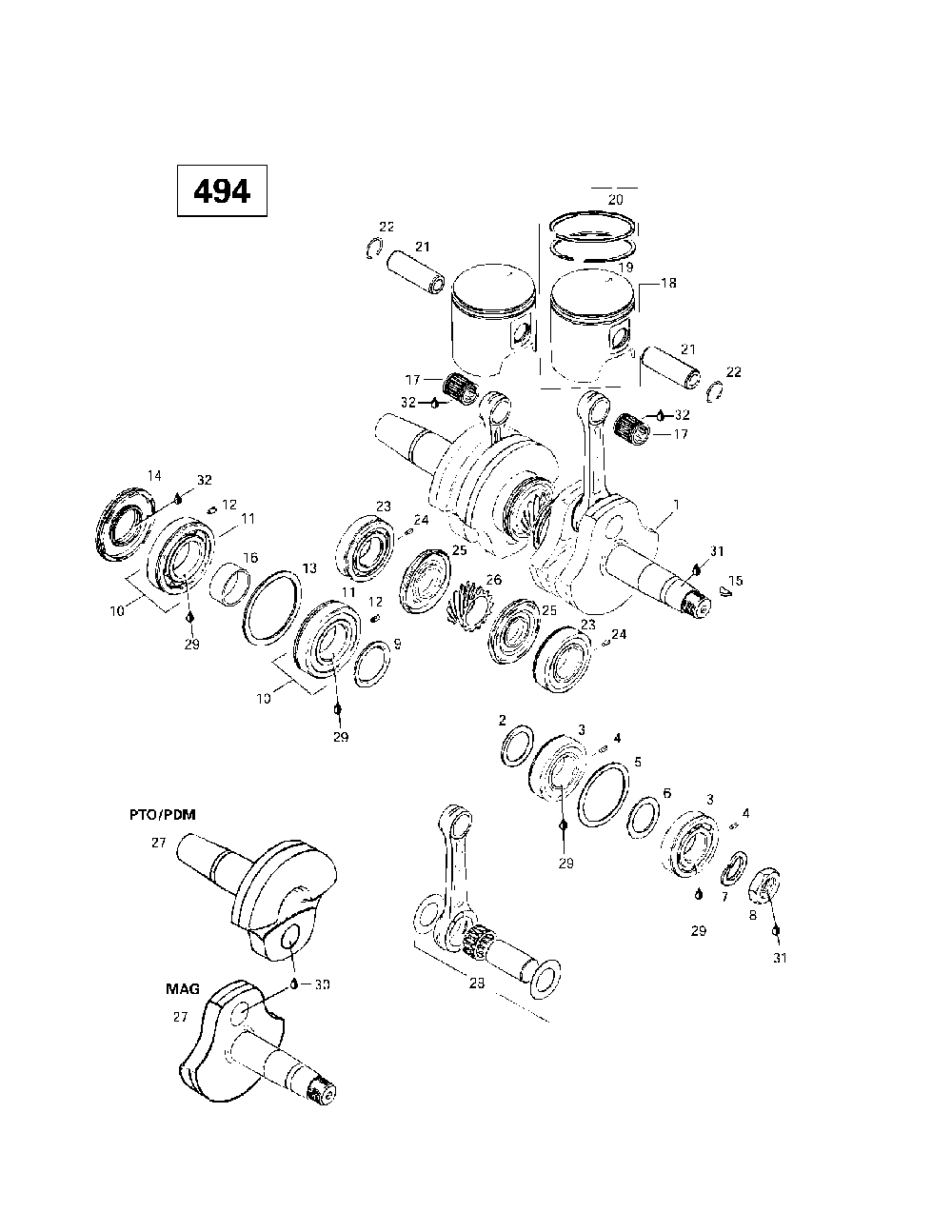

Коленчатый вал и поршень (494)

Ski-Doo (Bombardier) Grand Touring 500/583
Ski-Doo (Bombardier)
#oem кодцена
1
421000151
Vilebreq.refait*crank-rebuild 494 96 Includes 1 - 16. Grand Touring 500.
2
420827445
Bague Ecart. *ring-distance Grand Touring 500.
3
420832538
Roulement Bille*ball Bearing Includes 3 - 4. Grand Touring 500.
4
420929972
Goupille Ressor*pin-roll Grand Touring 500.
5
420427684
Rondelle Ajus *washer-adj. Grand Touring 500.
6
420827050
Disque Retenue *disk-retaining Grand Touring 500.
7
420945759
Rondelle-frein *washer-lock 22 Grand Touring 500.
8
420842234
Nut-hex.m22 X 1, 5 Grand Touring 500.
9
420827760
Bague Ecart. *ring-distance Grand Touring 500.
10
420832573
Roulement Bille*ball Bearing Includes 10 - 12. Grand Touring 500.
13
420927710
Disque Retenue *disk-retaining Grand Touring 500.
14
420831952
Anneau Etanche *seal-oil Grand Touring 500.
15
420246015
Clavette *key-woodruff Grand Touring 500.
16
420847684
Douille *sleeve-dista. Grand Touring 500.
17
420832438
Игольчатый подшипник - Grand Touring 500.
18
420887555
Piston *piston Includes 18 - 20. Grand Touring 500.
420887556
Piston *piston Grand Touring 500.
19
420915985
Segment R 69.5 *ring-r 69.5 Grand Touring 500.
420915986
Segment R 69.75*ring-r 69.75 Grand Touring 500.
20
420815043
Segment Semi-tr*ring-semi Trap Grand Touring 500.
420815044
Segment Semi-tr*ring-semi Trap Grand Touring 500.
21
420916186
Axe De Piston *pin-gudgeon Grand Touring 500.
22
420945735
Circlip Piston *circlip-piston Grand Touring 500.
25
420831990
Anneau Etanche *seal-oil Grand Touring 500.
26
420935748
Engrenage Cent.*gear-central Grand Touring 500.
27
420818660
Vilebrequin Pto*crankshaft-pto Grand Touring 500.
420818690
Vilebrequin Mag*crankshaft-mag Grand Touring 500.
28
420886955
Ens.tige Rep. *kit-rod Repair Pto Grand Touring 500.
420886956
Ens.tige Rep. *kit-rod Repair Mag Grand Touring 500.
30
413711400
Loctite 648 *loctite-648 Grand Touring 500.
31
293800060
Loctite 243 *loctite-243 Grand Touring 500.
32
413707000
Dow Corning 111*dow Corning 111 Grand Touring 500.
8
420842239
Ecrou*hex Nut M22x1, 5 Grand Touring 500.
11
420832573
Roulement Bille*ball Bearing Grand Touring 500.
12
420929972
Goupille Ressor*pin-roll Grand Touring 500.
23
420832538
Roulement Bille*ball Bearing Includes 23 - 24. Grand Touring 500.
24
420929972
Goupille Ressor*pin-roll Grand Touring 500.
