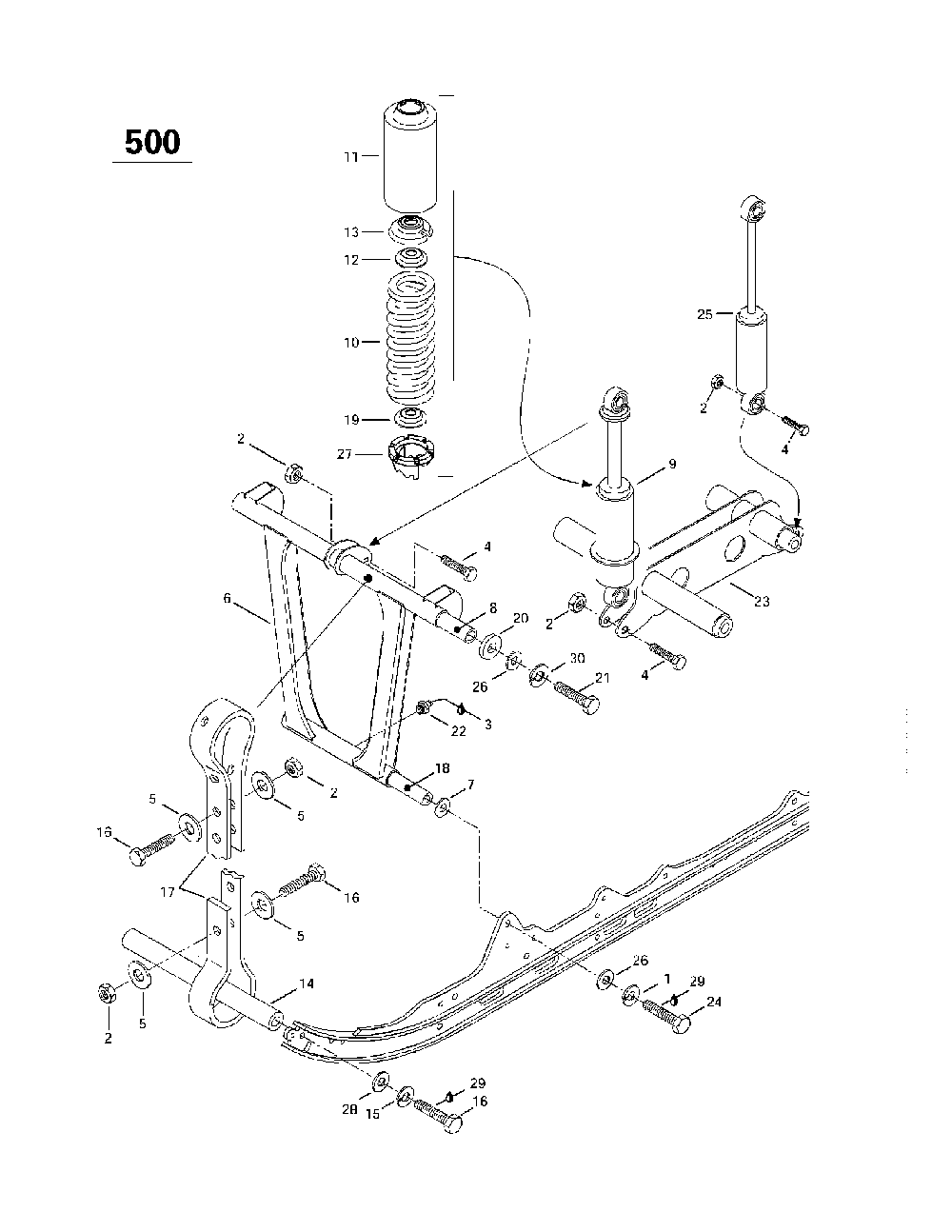

  6. 08- front arm, rear suspension 136

08- front arm, rear suspension 136

Ski-Doo (Bombardier) Grand Touring 500/583
Ski-Doo (Bombardier)
#oem кодцена
1
234100602
Washer-lock Spring Din.128a-a2 Grand Touring 500.
2
232581414
Nut-stop Elastic Din.985 Grand Touring 500.
3
413706100
Graisse Lith. *grease Lith. Grand Touring 500.
4
207084044
Screw-hex.cap Din.931 Grand Touring 500.
5
517078700
Шайба Grand Touring 500
6
503167400
Bras Avant *arm-front Grand Touring 500.
7
503007900
Rondelle Trempe*washer-hard Grand Touring 500.
8
503190387
Arbre *shaft Grand Touring 500.
9
414975700
Amortisseur *shock Grand Touring 500.
503189649
Втулка
503189363
Гильза
10
415070500
Ressort Peint *spring-paint Grand Touring 500.
11
503188930
Protecteur *protector Grand Touring 500.
12
503191610
Capuchon *cap Grand Touring 500.
13
706200881
Butee Ressort *spring Stopper Grand Touring 500.
14
503151600
Axe *axle Grand Touring 500.
15
234181401
Washer-lock Din.127b Grand Touring 500.
16
207183044
Screw-hex.cap Din.933 Grand Touring 500.
17
503190986
Courroie Arret *stopper Strap Grand Touring 500.
18
503152800
Essieu De Roues*wheel-axle Grand Touring 500.
19
503165100
Guide Ressort *guide-spring Grand Touring 500.
20
414894900
Coussinet *cushion Grand Touring 500.
21
207006044
Screw-hex.cap Iso.4014 Grand Touring 500.
22
408200700
Graisseur *grease Fitting Grand Touring 500.
23
503189466
Support Amort. *support-shock Grand Touring 500.
24
207103544
Screw-hex.cap Iso.4017 Grand Touring 500.
25
415040600
Amortisseur *shock Grand Touring 500.
26
234001410
0asher-flat Din.125a Grand Touring 500.
27
291001088
Bague Reglage *adjuster Ring Grand Touring 500.
28
234081410
Washer-flat Din.125a Grand Touring 500.
29
293800005
Loctite 271 *loctite-271 Grand Touring 500.
30
234101601
Washer-lock Helical Din.127b-a2 Grand Touring 500.
