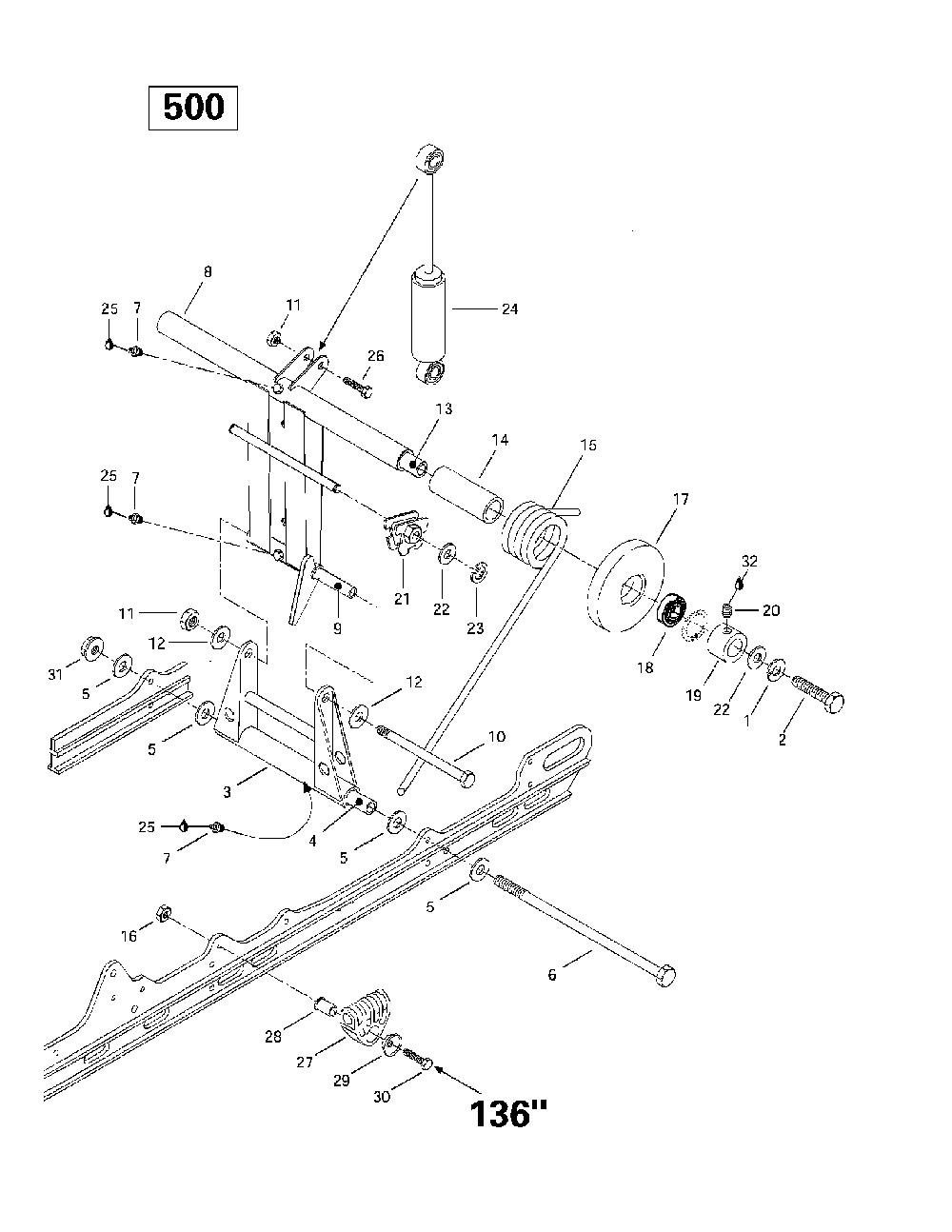

  6. 08- rear arm, rear suspension 136

08- rear arm, rear suspension 136

Ski-Doo (Bombardier) Grand Touring 500/583
Ski-Doo (Bombardier)
#oem кодцена
1
234101601
Washer-lock Helical Din.127b-a2 Grand Touring 500.
2
207103544
Screw-hex.cap Iso.4017 Grand Touring 500.
3
503191372
Jumelle Peinte *arm-pivot P. Grand Touring 500.
4
503154703
Axe Inf. Jumel.*axle-piv.lower Grand Touring 500.
5
224081201
Washer-flat Grand Touring 500.
6
732601198
Boulon 248mm *bolt 248mm Grand Touring 500.
7
408200700
Graisseur *grease Fitting Grand Touring 500.
8
503170700
Bras Arriere *arm-rear Grand Touring 500.
9
503144300
Axe Sup. Jumel.*axle-piv.upper Grand Touring 500.
10
732601197
Boulon Court *bolt-short Grand Touring 500.
11
232581414
Nut-stop Elastic Din.985 Grand Touring 500.
12
234081410
Washer-flat Din.125a Grand Touring 500.
13
503168700
Axe Transv.arr.*shaft-cross Rr Grand Touring 500.
14
572086000
Douille *bushing Grand Touring 500.
15
414944200
Ressort Dr.pein*spring-rh. P. Grand Touring 500.
414944300
Ressort Ga.pein*spring-lh.p. Grand Touring 500.
16
232561414
Nut-stop Elastic Din.985 Grand Touring 500.
17
503189658
Roue 155 *wheel-155 Includes 17 - 18. Grand Touring 500.
18
293350055
Ball Bearing Grand Touring 500.
19
503168800
Bague D Appui *ring-retaining Grand Touring 500.
21
572030800
Came Reglage Ga*cam-adjust.lh. Grand Touring 500.
572030900
Came Reglage Dr*cam-adjust.rh. Grand Touring 500.
22
234001410
0asher-flat Din.125a Grand Touring 500.
23
371907100
Circlip "e" *circlip-"e" Grand Touring 500.
24
415040600
Amortisseur *shock Grand Touring 500.
25
413706100
Graisse Lith. *grease Lith. Grand Touring 500.
26
207084044
Screw-hex.cap Din.931 Grand Touring 500.
27
503189657
Support Ressort*support-spring Grand Touring 500.
28
503152700
Axe Guide Ress.*axle-guide Spring Grand Touring 500.
29
517041700
Rondelle Retenu*washer-retaine Grand Touring 500.
30
207064544
Screw-hex.cap Din.931 Grand Touring 500.
31
233281414
Nut-flange Elastic Din.6926 Grand Touring 500.
32
293800005
Loctite 271 *loctite-271 Grand Touring 500.
