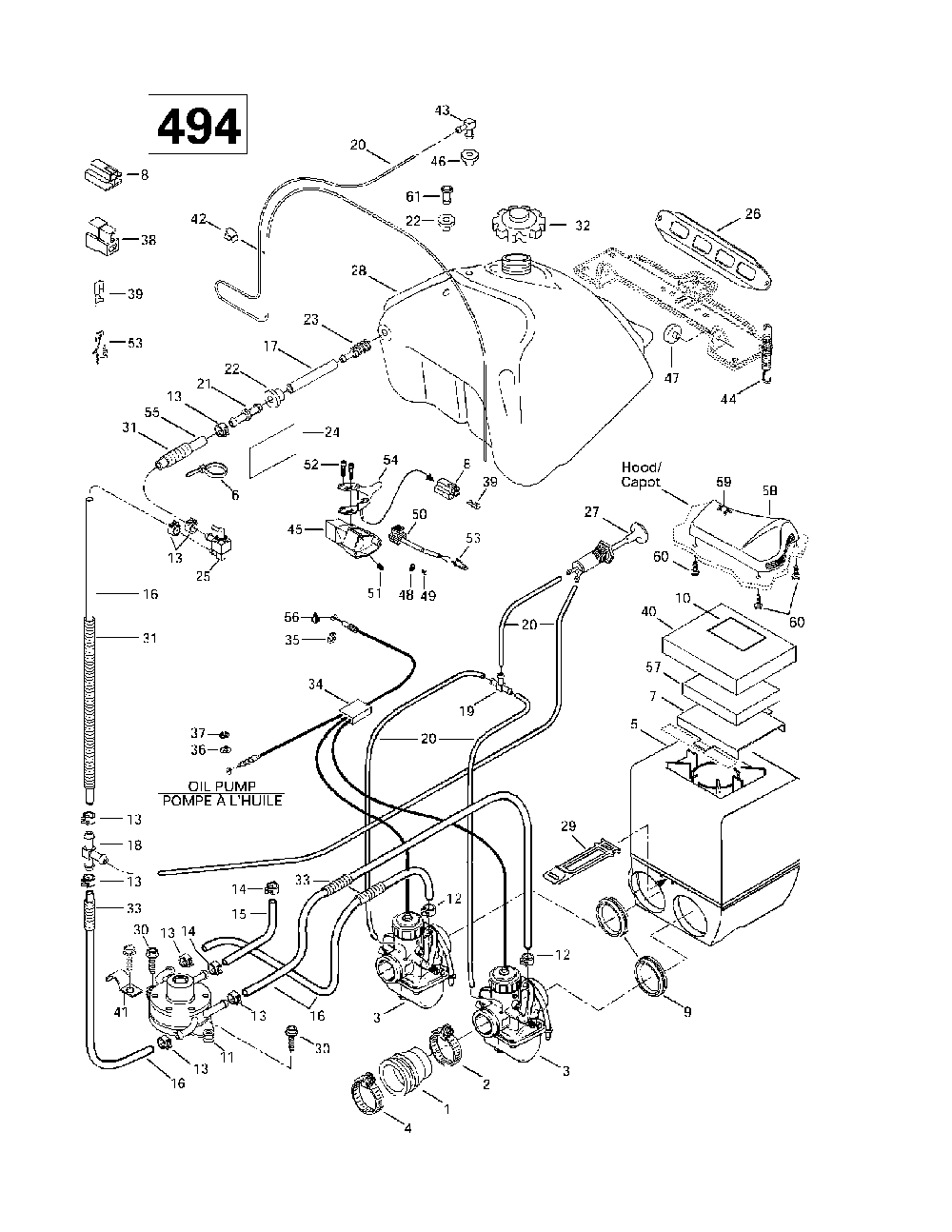

02- fuel system (494)

Ski-Doo (Bombardier) Grand Touring 500/583
Ski-Doo (Bombardier)
#oem кодцена
1
570048100
Adapteur Carb. *adaptor-carb. Grand Touring 500.
2
293650156
Bride Serrage *clamp-gemi Grand Touring 500.
3
403128200
Carb.vm-38 *carb-vm-38 Grand Touring 500.
403128300
Carb.vm-38 *carb-vm-38 Grand Touring 500.
4
414532800
Collet *collar Grand Touring 500.
5
580638605
Silenc.adm.ass.*intake-air Ass Grand Touring 500. (incl. 7, 9, 10, 29, 40, 57)
6
414115200
Tie-rap 180 Mm Grand Touring 500.
7
517283900
Grille Adm. *grill-intake Grand Touring 500.
8
409008500
Logement Femel.*housing-female Grand Touring 500.
9
570048900
Adap.admis.vm38*adap-air Vm-38 Grand Touring 500.
10
414161500
Etiquette Avert*label-warning Grand Touring 500.
11
403900900
Pompe A Essence*pump-fuel Grand Touring 500.
12
414420700
Bride A Ressort*clamp-spring Grand Touring 500.
13
414554800
Bride A Ressort*clamp-spring Grand Touring 500.
14
414415200
Bride A Ressort*clamp-spring Grand Touring 500.
15
415079800
Boyau 1/4 I.d. *hose-1/4 I.d. Grand Touring 500.
16
415080200
Boyau Polyure *polyurethane Hose Grand Touring 500.
18
414222500
Raccord En T *t-fitting Grand Touring 500.
19
414222400
Raccord En T *fitting-t Grand Touring 500.
20
415080100
Boyau Amorce *line-primer Grand Touring 500.
21
414518500
Raccord Male *connector-male Grand Touring 500.
22
570045500
Passe-fils *grommet Grand Touring 500.
23
414865700
Crepine *filter-fuel Grand Touring 500.
24
414931500
Etiquette Secur*label-security Grand Touring 500.
25
414935900
Valve Essence *valve-shutoff Grand Touring 500.
26
517249200
Support Res.ess*support-tank Fuel Grand Touring 500.
27
415060500
Amorceur *primer Grand Touring 500.
28
571009400
Reservoir Essen*tank-fuel Grand Touring 500.
29
570069700
Loquet *latch Grand Touring 500.
30
210262080
Screw-forming Hex.hd.fl.gm6174m Grand Touring 500.
31
415079900
Gaine *protector Tube Grand Touring 500.
32
572039600
Bouchon *cap Grand Touring 500.
33
409901800
Tubing - Insulating 13 Mm Grand Touring 500.
34
414968801
Cable Acc.vm-38*cable-throttle Grand Touring 500.
35
414274500
Circlip-black Chromate Grand Touring 500.
36
414753300
Шайба Grand Touring 500
37
414753500
Circlip-type Bs N Grand Touring 500.
38
409204500
Logement Male *housing-male Grand Touring 500.
39
515175253
Cosse Femelle *terminal-femal Grand Touring 500.
40
415105900
Mousse Ext. *foam-lower Grand Touring 500.
41
414176000
Attache Collier*open Clamp Grand Touring 500.
42
414227300
Clip - Spring Grand Touring 500.
43
414814100
Raccord Male *connector-male Grand Touring 500.
44
517182100
Ressort *spring Grand Touring 500.
45
572028600
Logement Acc. *housing-throttle Grand Touring 500.
46
570135100
Passe-fils *grommet Grand Touring 500.
47
570273900
Passe-fils *grommet Grand Touring 500.
48
391300700
Washer-flat Grand Touring 500.
49
211000098
Screw-thread Cut.ph.pan Type25 Grand Touring 500.
50
515176725
Interrupteur *kill Switch Grand Touring 500.
51
414440800
Screw-set Din 916-a2 Grand Touring 500.
52
732601143
Screw-shoulder Grand Touring 500.
53
409210000
Cosse Male *terminal-male Grand Touring 500.
54
512059348
Manette Ass. *handle-assy Grand Touring 500.
55
415058400
Boyau Forme *hose-formed Grand Touring 500.
57
415014800
Filtre A Air *filter-air Grand Touring 500.
58
572077900
Couvercle Adm. *cover-intake Grand Touring 500.
59
414972600
Filtre A Air *filter-air Grand Touring 500.
60
365901100
Screw-hex.taping 12 Grand Touring 500.
61
572092900
Bouchon *cap Grand Touring 500.
