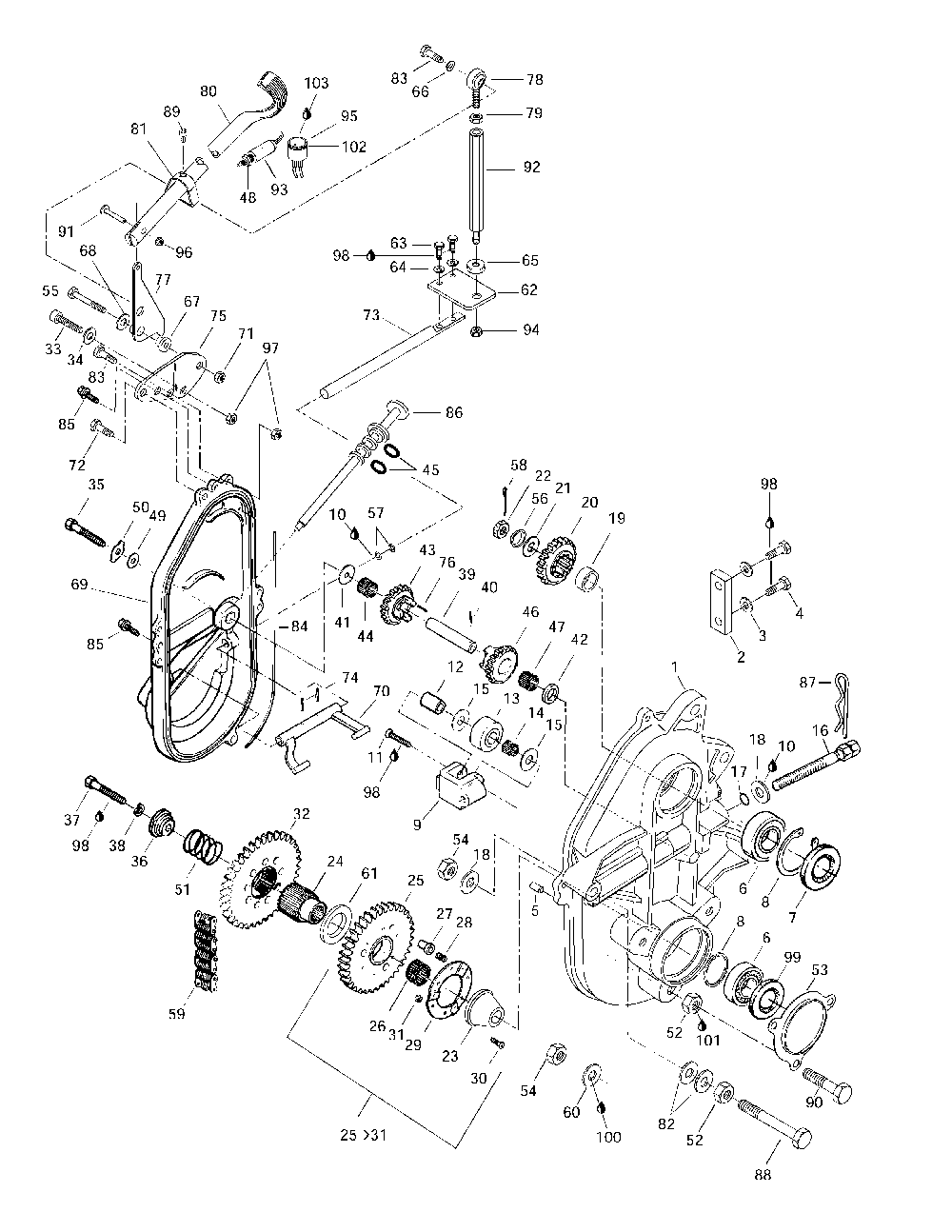

Трансмиссия

Ski-Doo (Bombardier) Touring E LT
Ski-Doo (Bombardier)
#oem кодцена
1
504144701
Carter Chaine U*case-chain Mach. Touring Sle.
2
504082400
Glissiere Chain*chain-slider Touring Sle.
3
732900040
Rondelle Plate *flat Washer Touring Sle.
4
207161644
Screw-hex.cap Din.933 Touring Sle.
5
732620001
Goupille Cyl. *pin-cylinder Touring Sle.
6
504152006
Roulement Bille*ball Bearing Touring Sle.
7
414882800
Joint Etanche *oil Seal Touring Sle.
8
371901700
Circlip Int. *circlip-int. Touring Sle.
9
504081000
Tendeur Usine *tensioner-mach Touring Sle.
10
413706100
Graisse Lith. *grease Lith. Touring Sle.
11
732601144
Screw Touring Sle.
12
504080200
Entretoise *spacer Touring Sle.
13
414531300
Rouleau *roller Touring Sle.
14
405403000
Roul.aiguille *needle Bearing Touring Sle.
15
504080300
Rondelle *washer Touring Sle.
16
414484400
Joint Torique *o-ring Touring Sle.
16
732601275
Screw-forging Touring Sle.
18
234001410
0asher-flat Din.125a Touring Sle.
19
504093400
Cale Epaisseur *shim Touring Sle.
20
504091200
Roue Dentee 21d*sprocket 21th Touring Sle.
21
504087100
Rondelle *washer Touring Sle.
22
232210414
Nut-hex.castle Thin Din.937 Touring Sle.
23
504094100
Bague D Appui *ring-retaining Touring Sle.
24
504094200
Arbre De Couple*coupling Touring Sle.
25
581095900
Pignon 44d Ass.*sprock-44th Assy Includes 25 - 31. .
25
504088200
Roue Dentee 44d*sprocket 44th Touring Sle.
26
414772600
Roulement Aig. *needle Bearing Touring Sle.
27
504076800
Tige D Engagem.*pin-drive Touring Sle.
28
414772700
Ressort *spring Touring Sle.
29
504076100
Anneau Retenue *ring-retainer Touring Sle.
30
207152044
Screw-hex.cap Din.933 Touring Sle.
31
233551416
Nut-lock Spring Din.980v Touring Sle.
32
504096800
Engr.coulis.56d*gear-sliding56 Touring Sle.
33
205061644
Screw-socket Hd.din.912 Touring Sle.
34
234061410
Washer-flat M6 Din.125a Touring Sle.
35
207089044
Screw-hex.cap Din.931 Touring Sle.
36
504151964
Capuchon *cap Touring Sle.
37
207005044
Screw-hex.cap Iso.4014 Touring Sle.
38
234100602
Washer-lock Spring Din.128a-a2 Touring Sle.
39
504083100
Axe De Renverse*shaft-reverse Touring Sle.
40
732804003
Ppin-rolled Din.1481 M3 X 12 Touring Sle.
41
504077300
Entretoise *spacer Touring Sle.
42
504078700
Bague *ring Touring Sle.
43
581122200
Engren. 19d Ass*sprock-19 Teeth Assy. Includes 43 - 44. Touring Sle.
44
414805000
Roul. Aiguille *needle Bearing Touring Sle.
45
414969400
Joint Torique *o-ring Touring Sle.
46
581098200
Pignon 19d Ass.*sprock-19th As Includes 46 - 47. Touring Sle.
47
414773100
Roul. Aiguille *needle Bearing Touring Sle.
48
250100012
Ecrou Laiton *nut-brass Touring Sle.
49
504082900
Washer Din 7603 Touring Sle.
50
504087700
Patte Verrouil.*lock-tab Touring Sle.
51
504099200
Ressort Rappel *spring-release Touring Sle.
52
504083800
Entretoise *spacer Touring Sle.
53
501022100
Protecteur *protector Touring Sle.
54
233601416
Nut-locking Elastic Din.982 Touring Sle.
55
207084544
Screw-hex.cap Din.931 Touring Sle.
56
417000900
Rondelle Res. *spring Washer Touring Sle.
57
414773200
Joint Torique *o-ring Touring Sle.
58
371801300
Goupille Fendue*pin-cotter Touring Sle.
59
504151883
Chaine 72 M. *chain-driving Touring Sle.
60
234001460
Washer-flat Din.125a Touring Sle.
61
504094300
Rondelle *washer Touring Sle.
62
504094602
Plaque *plate Touring Sle.
63
207151444
Screw-hex.cap Din.933 Touring Sle.
64
234151401
Washer-lock Helical Din.127b Touring Sle.
65
570045700
Rondelle Caout.*washer-rubber Touring Sle.
66
234161471
Washer-lock Black Din.127b Touring Sle.
67
414927600
Douille Epaul. *flange-bushing Touring Sle.
68
224081201
Washer-flat Touring Sle.
69
504098500
Couvercle Usine*cover-mach. Touring Sle.
70
504075800
Fourch. Usine *fork-machining Touring Sle.
71
232581414
Nut-stop Elastic Din.985 Touring Sle.
72
210261680
Screw-forming Hex.hd.fl.gm6174m Touring Sle.
73
504142900
Axe *axle Touring Sle.
74
414772500
Goup.ressort *pin-spring Touring Sle.
75
504095000
Support Pivot *supp-pivot Touring Sle.
76
570048600
Tige Alignement*rod-alignement Touring Sle.
77
504094900
Plaque Piv.sou.*plate-piv.weld Touring Sle.
78
414773400
Joint Rotule *ball Joint Touring Sle.
79
232061414
Nut-hexagonal Din.934 Touring Sle.
80
570044600
Poignee *handle Touring Sle.
81
572071100
Butee Contact *stopper-switch Touring Sle.
82
504073700
Rondelle *washer Touring Sle.
83
207162044
Screw-hex.cap Din.933 Touring Sle.
84
414362300
Joint Torique *o-ring Touring Sle.
85
210263080
Screw-forming Hex.hd.fl.gm6174m Touring Sle.
86
572092700
Bouchon Remp.as*cap-filler Assy. Touring Sle.
87
414575600
Goup.surete *pin-hair Touring Sle.
88
732601111
Screw-hex.cap Iso.4017 Touring Sle.
89
364901600
Screw-sheet Met.bind Head T-ab Touring Sle.
90
207104044
Screw-hex.cap Iso.4017 Touring Sle.
91
390008900
Rivet-steel Solid Touring Sle.
92
504094700
Barre *bar Touring Sle.
93
515175318
Interrupteur *switch Touring Sle.
94
232551414
Nut-stop Elastic Din.985 Touring Sle.
95
414805102
Avertiss. Dc-bt*horn-dc-bt Touring Sle.
96
389804300
Ecrou Pression *push-nut Touring Sle.
97
232561414
Nut-stop Elastic Din.985 Touring Sle.
98
293800005
Loctite 271 *loctite-271 Touring Sle.
99
504152076
Anneau Etance *oil Seal Ass Y Touring Sle.
100
413702700
Loctite 515 *loctite-515 Touring Sle.
101
293800060
Loctite 243 *loctite-243 Touring Sle.
102
414805101
Ecrou Plastique*nut-plastic. Touring Sle.
17
414484400
Joint Torique *o-ring Touring Sle.
103
296000309
Scell.silicone *seal-silicone Touring Sle.
