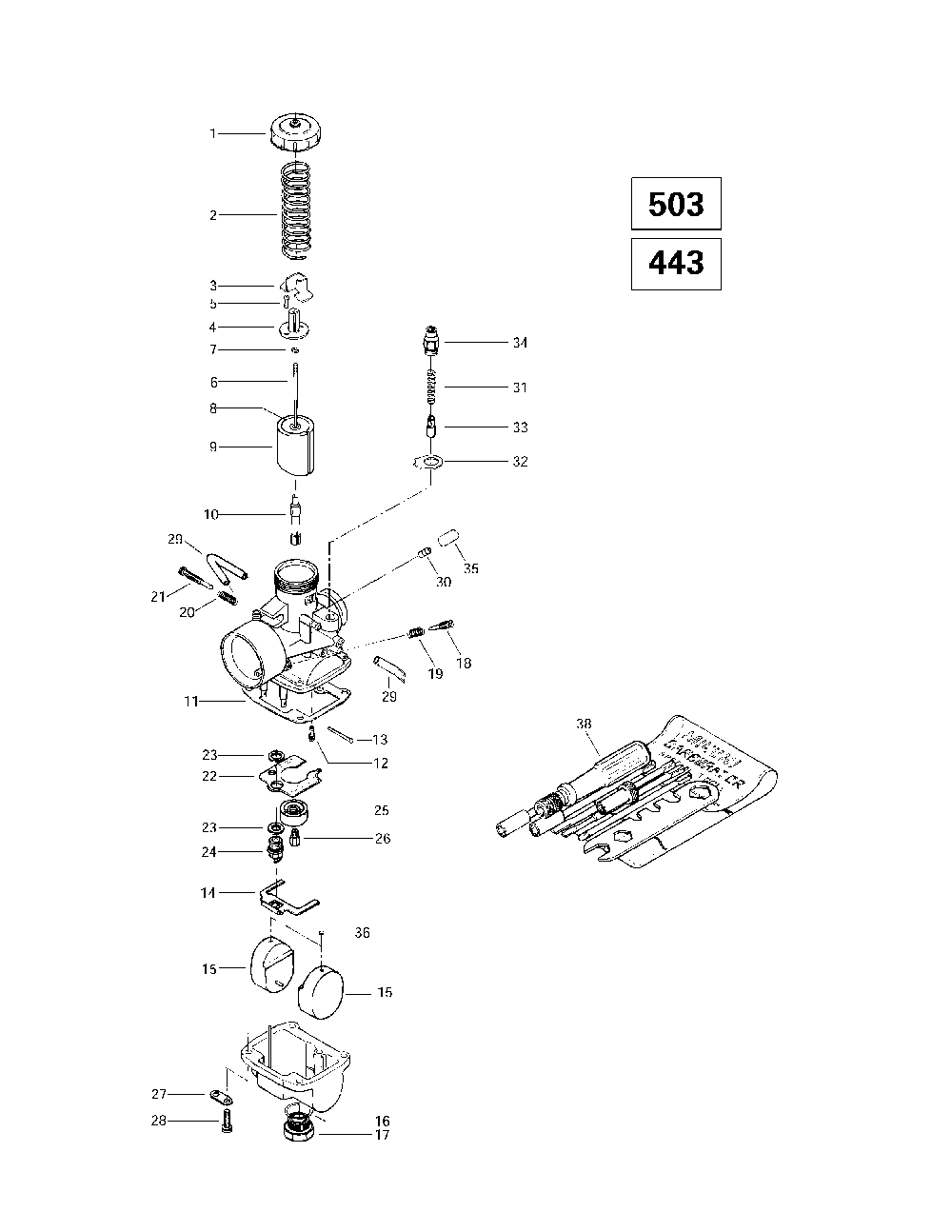

02- carburetors (503, 443)

Ski-Doo (Bombardier) Touring E LT
Ski-Doo (Bombardier)
#oem кодцена
403127500
Carb.vm-34 Mag *carb-vm-34 Mag Touring Sle.
1
404103700
Couvercle Carb.*top-mix.chamb. Touring Le. Touring Sle.
2
404154800
Ressort *spring Touring Le. Touring Sle.
3
404122100
Couvercle *cover Touring Le. Touring Sle.
4
404160800
Connecteur *connector Touring Le. Touring Sle.
5
404121300
Vis W.rondelle*screw-with Washer Touring Le. Touring Sle.
6
404110400
Aiguille 6dh02 *needle Touring Le. Touring Sle.
7
404152400
Rondelle E *ring-e Touring Le. Touring Sle.
8
404117000
Joint Tampon *packing Touring Le. Touring Sle.
9
404128400
Tiroir Acc.2.5 *piston-val.2.5 Touring Le. Touring Sle.
10
404157100
Gicleur Aiguil.*jet Needle Touring Le.
404107000
Gicleur Aiguil.*jet Needle Touring Sle.
11
404104200
Joint *gasket Touring Le. Touring Sle.
12
404109100
Gicleur Ralenti*jet-pilot 40 Touring Le. Touring Sle.
13
404103300
Goupille Levier*pin-lever Touring Le. Touring Sle.
14
404107600
Levier Flotteur*lever-float Touring Le. Touring Sle.
15
404107100
Flotte *float Touring Le. Touring Sle.
16
404107300
Joint Torique *o-ring Touring Le. Touring Sle.
17
404107400
Vis Bouchon *screw-drain Plug Touring Le. Touring Sle.
18
404149000
Vis Air *screw-air Touring Le. Touring Sle.
19
404139800
Ressort *spring Touring Le. Touring Sle.
20
404101700
Ressort *spring Touring Le. Touring Sle.
21
404125200
Vis Etrangleur*screw-throttle Touring Le. Touring Sle.
22
404109600
Chicane *baffle Touring Le. Touring Sle.
23
404101600
Rondelle Siege *washer-seat Touring Le. Touring Sle.
24
404103200
Pointeau Vs 1.5*valve-needle Touring Le. Touring Sle.
25
404110900
Bague Chicane *ring-baffle Touring Le. Touring Sle.
26
404112200
Gicleur Mj 180 *jet-main 180 Touring Le.
404123800
Gicleur Mj 170 *jet-main 170 Touring Sle.
27
404103000
Plaque *plate Touring Le. Touring Sle.
28
404102000
Screw-w/lock *screw-w/lockwasher Touring Le. Touring Sle.
29
404109800
Tuyau Aeration *tube-air Vent Touring Le. Touring Sle.
30
404153400
Raccord *nipple Touring Le.
404127600
Raccord *nipple Touring Sle.
31
404127400
Ressort *spring Touring Le. Touring Sle.
32
404156400
Plaque *plate Touring Le. Touring Sle.
33
404127500
Plongeur Ass *plunger-assy Touring Le. Touring Sle.
34
404127200
Support Guide *support-guide Touring Le. Touring Sle.
35
404156600
Capuchon *cap Touring Le. Touring Sle.
36
404105800
Capuchon *cap Touring Le. Touring Sle.
38
404112000
Trousse Outils *tool Kit Touring Le. Touring Sle.
404112200
Gicleur Mj 180 *jet-main 180 Touring Sle.
