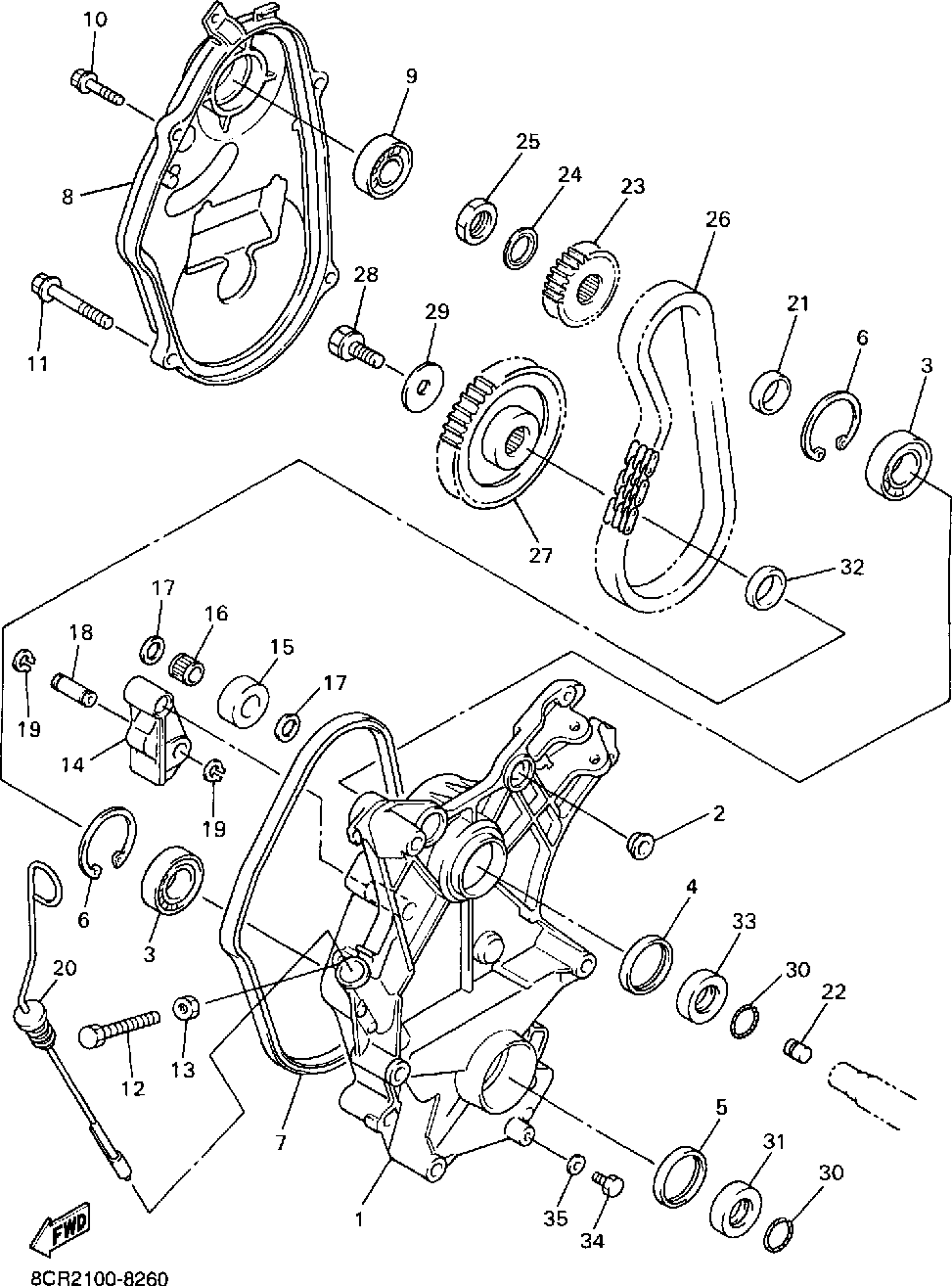

Track drive 2 xtcb and xtcpb only

Yamaha VMAX 700 XTCP (PLASTIC SKI, 1.5"TRACK) -VX700XTCB/VX700XTCDB/VX700XTCPB
Yamaha
#oem кодцена
1
8CR-47541-01-00
Housing, Chain Xtcb/xtcpb
2
90179-10679-00
Nut, Spec'l Shape Xtcb/xtcpb
3
93306-20592-00
Bearing Xtcb/xtcpb
4
93102-35473-00
Oil Seal Xtcb/xtcpb
5
93102-35318-00
Oil Seal, Sd-type Xtcb/xtcpb
6
99009-52500-00
Circlip Xtcb/xtcpb
7
8CR-47558-01-00
Ring, Housing/gasket Xtcb/xtcpb
8
8CR-47543-01-00
Cap, Housing Xtcb/xtcpb
9
93306-20468-00
Bearing Xtcb/xtcpb
10
95817-08030-00
Bolt, Flange Xtcb/xtcpb
11
95817-10060-00
Bolt, Flange Xtcb/xtcpb
12
90101-10357-00
Bolt Xtcb/xtcpb
13
95337-10600-00
Nut (6td) Xtcb/xtcpb
14
8CR-47613-00-00
Holder Xtcb/xtcpb
15
8CR-47612-00-00
Wheel Xtcb/xtcpb
16
93315-21227-00
Bearing, Cyl.#15 Xtcb/xtcpb
17
90201-127E1-00
Washer, Plate Xtcb/xtcpb
18
90249-12227-00
Pin, Spec'l Shape Xtcb/xtcpb
19
99009-12400-00
Circlip Xtcb/xtcpb
20
8CR-47546-00-00
Level, Oil Xtcb/xtcpb
21
90387-2508D-00
Collar, Sprocket Xtcb/xtcpb
22
82M-17699-00-00
Plug, Oil Xtcb/xtcpb
23
89J-17682-00-00
Sprkt, Chain Dr 20t Xtcb/xtcpb
23
89J-17682-10-00
Sprkt, Chain Dr 21t Xtcb/xtcpb
23
89J-17682-30-00
Sprocket, 23t Xtcb/xtcpb
23
89J-17682-20-00
Sprocket, 22t Xtc/bxtcpb
23
89J-17682-91-00
Sprocket, 19t Xtcb/xtcpb
24
90208-22001-00
Washer, Conical Spr Xtcb/xtcpb
25
90170-22094-00
Nut, Hexagon Xtcb/xtcpb
26
94860-02068-00
68l Chain, Rexnord Xtcb/xtcpb
26
94860-02070-00
70l Chain, Rexnord Xtcb/xtcpb
27
89J-47587-90-00
Sprkt, Chain Dr 39t Xtcb/xtcpb
27
89J-47587-00-00
Sprocket, 40t Xtcb/xtcpb
28
95817-10025-00
Bolt, Flange (3gd) Xtcb/xtcpb
29
90201-10321-00
Washer, Plate Xtcb/xtcpb
30
93210-25071-00
O-ring Xtcb/xtcpb
31
90387-2508C-00
Collar Xtcb/xtcpb
32
90387-2508B-00
Collar Xtcb/xtcpb
33
90387-2511J-00
Collar Xtcb/xtcpb
34
97007-08014-00
Bolt (8bc) Xtcb/xtcpb
35
90210-08017-00
Washer, Seal Xtcb/xtcpb
