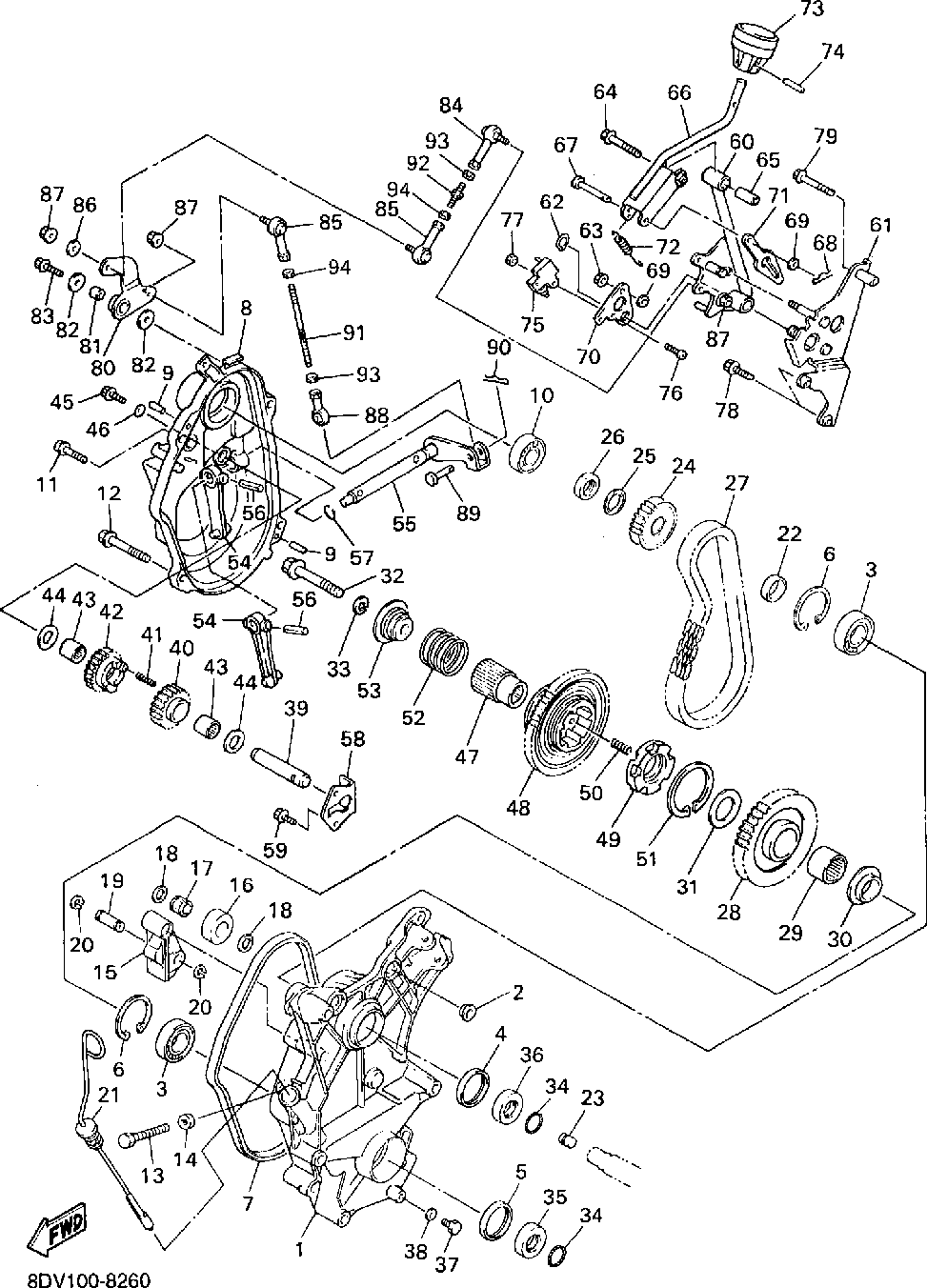

Track drive 3 for vx700xtcd only

Yamaha VMAX 700 XTC-VX700XTCPB/VX700XTCB/VX700XTCDB
Yamaha
#oem кодцена
1
8CR-47541-01-00
Housing, Chain Xtcdb
2
90179-10679-00
Nut, Spec'l Shape Xtcdb
3
93306-20592-00
Bearing Xtcdb
4
93102-35473-00
Oil Seal Xtcdb
5
93102-35318-00
Oil Seal, Sd-type Xtcdb
6
99009-52500-00
Circlip Xtcdb
7
8CR-47558-01-00
Ring, Housing/gasket Xtcdb
8
8CW-47543-02-00
Cap, Housing Xtcdb
9
93606-20044-00
Pin, Dowel Xtcdb
10
93306-20468-00
Bearing Xtcdb Xtcdb
11
95817-08030-00
Bolt, Flange Xtcdb Xtcdb
12
95817-10060-00
Bolt, Flange Xtcdb Xtcdb
13
90101-10357-00
Bolt Xtcdb
14
95337-10600-00
Nut (6td) Xtcdb Xtcdb
15
8CR-47613-00-00
Holder Xtcdb
16
8CR-47612-00-00
Wheel Xtcdb
17
93315-21227-00
Bearing, Cyl.#15 Xtcdb
18
90201-127E1-00
Washer, Plate Xtcdb
19
90249-12227-00
Pin, Spec'l Shape Xtcdb
20
99009-12400-00
Circlip Xtcdb
21
8CR-47546-00-00
Level, Oil Xtcdb
22
90387-2508D-00
Collar, Sprocket Vx700xtcdb
23
82M-17699-00-00
Plug, Oil Vx700xtcdb
24
89J-17682-80-00
Sprkt, Chain Dr 18t Vx700xtcdb Ur Ap
24
89J-17682-00-00
Sprkt, Chain Dr 20t Vx700xtcdb Ur Ap
24
89J-17682-10-00
Sprkt, Chain Dr 21t Vx700xtcdb Ur Ap
24
89J-17682-30-00
Sprocket, 23t Vx700xtcdb Ur Ap
24
89J-17682-20-00
Sprocket, 22t Vx700xtcdb Ur Std
24
89J-17682-91-00
Sprocket, 19t Vx700xtcdb Ur Ap
26
90170-22094-00
Nut, Hexagon Vx700xtcdb
27
94860-02068-00
68l Chain, Rexnord Vx700xtcdb Ur Ap
27
94860-02070-00
70l Chain, Rexnord Vx700xtcdb Ur Std
28
8CW-47587-90-00
Sprocket, Chn Drvn Vx700xtcdb Ur Stdb
29
93317-33179-00
Bearing, Cylindrical Vx700xtcd
30
90387-2008G-00
Collar Vx700xtcdb
31
90201-320S3-00
Washer, Plate Vx700xtcdb
32
95817-10070-00
Bolt, Flange Vx700xtcdb
33
92907-10100-00
Washer(6ta) Vx700xtcdb
34
93210-25071-00
O-ring Vx700xtcdbb
35
90387-2508C-00
Collar Vx700xtcd
36
90387-2511J-00
Collar Vx700xtcdb
37
97007-08014-00
Bolt (8bc) Vx700xtcdb
38
90210-08017-00
Washer, Seal Vx700xtcdb
39
8CW-1761A-00-00
Shaft, 1 Vx700xtcdb
40
8DM-17692-00-00
Sprocket, Drive Vx700xtcdb
41
90501-06022-00
Spring, Compression Vx700xtcdb
42
8CW-W1714-00-00
Rev Gear Sub-assy1 Vx700xtcdb
43
93317-21578-00
Bearing, Cylindrical Vx700xtcdb
44
90201-16245-00
Washer, Plate Vx700xtcdb
45
95817-06016-00
Bolt, Flange Vx700xtcdb
46
90210-06006-00
Washer, Seal Vx700xtcdb
47
8CW-47571-00-00
Journal 1 Vx700xtcdb
48
8CW-17243-00-00
Gear, Rev. Wheel 1 Vx700xtcdb
49
8CW-17492-00-00
Dog, Trans Shift Vx700xtcdb
50
90501-066J5-00
Spring, Compression Vx700xtcdb
51
93440-39175-00
Circlip, Outer Vx700xtcdb
52
90501-326J6-00
Spring, Compression Vx700xtcdb
53
8CW-47564-00-00
Collar Vx700xtcdb
54
8ER-18511-00-00
Fork, Shift 1 Vx700xtcdb
55
8CW-18197-00-00
Shaft Vx700xtcdb
56
91609-50022-00
Pin, Spring Vx700xtcdb
58
8CW-47591-00-00
Plate Vx700xtcdb
60
8CW-18112-01-00
Arm, Shift Vx700xtcdb
61
8CW-18161-01-00
Guide, Plate Stppr Vx700xtcdb
63
95604-06200-00
Nut-u Vx700xtcdb
64
95817-06035-00
Bolt, Flange Vx700xtcdb
65
90387-06605-00
Collar Vx700xtcdb
66
8CW-18152-01-00
Lever, Shift 4 Vx700xtcdb
67
91701-06035-00
Pin, Clevis Vx700xtcdb
68
90468-10050-00
Clip Vx700xtcdb
69
92907-06200-00
Washer (6ta) Vx700xtcdb
70
8CW-1811A-00-00
Plate, Shift Arm Vx700xtcdb
71
8CW-18153-00-00
Gde, Shift Rtrn Spr Vx700xtcdb
72
90506-14343-00
Spring, Tension Vx700xtcdb
73
8CL-18174-00-00
Knob, Shift Lever Vx700xtcdb
74
91690-40022-00
Pin, Spring Vx700xtcdb
75
J51-82817-00-00
Switch, Neutral Vx700xtcdb
76
98907-04016-00
Bolt, Socket Vx700xtcdb
77
95617-04100-00
Nut, U(6e8) Vx700xtcdb
78
95817-06025-00
Bolt, Flange Vx700xtcdb
79
95817-06040-00
Bolt, Flange Vx700xtcdb
80
8CW-18198-00-00
Lever Vx700xtcdb
81
90387-06197-00
Collar Vx700xtcdb
82
90201-063J2-00
Washer, Plate Vx700xtcdb
84
J45-23845-00-00
Joint, Universal 2 Vx700xtcdb
85
88T-18157-00-00
Ball Ll - Joint 2 Vx700xtcdb
86
90201-06778-00
Washer, Plate Vx700xtcdb
88
8CW-18156-00-00
Ball, L R Vx700xtcdb
89
91701-06022-00
Pin, Clevis Vx700xtcdb
91
88T-18116-01-00
Joint, Rod 1 Vx700xtcdb
92
26H-18115-00-00
Rod, Shift Vx700xtcdb
93
95314-06600-00
Nut, Hexagon Vx700xtcdb
94
90170-06228-00
Nut, Hexagon Vx700xtcdb
