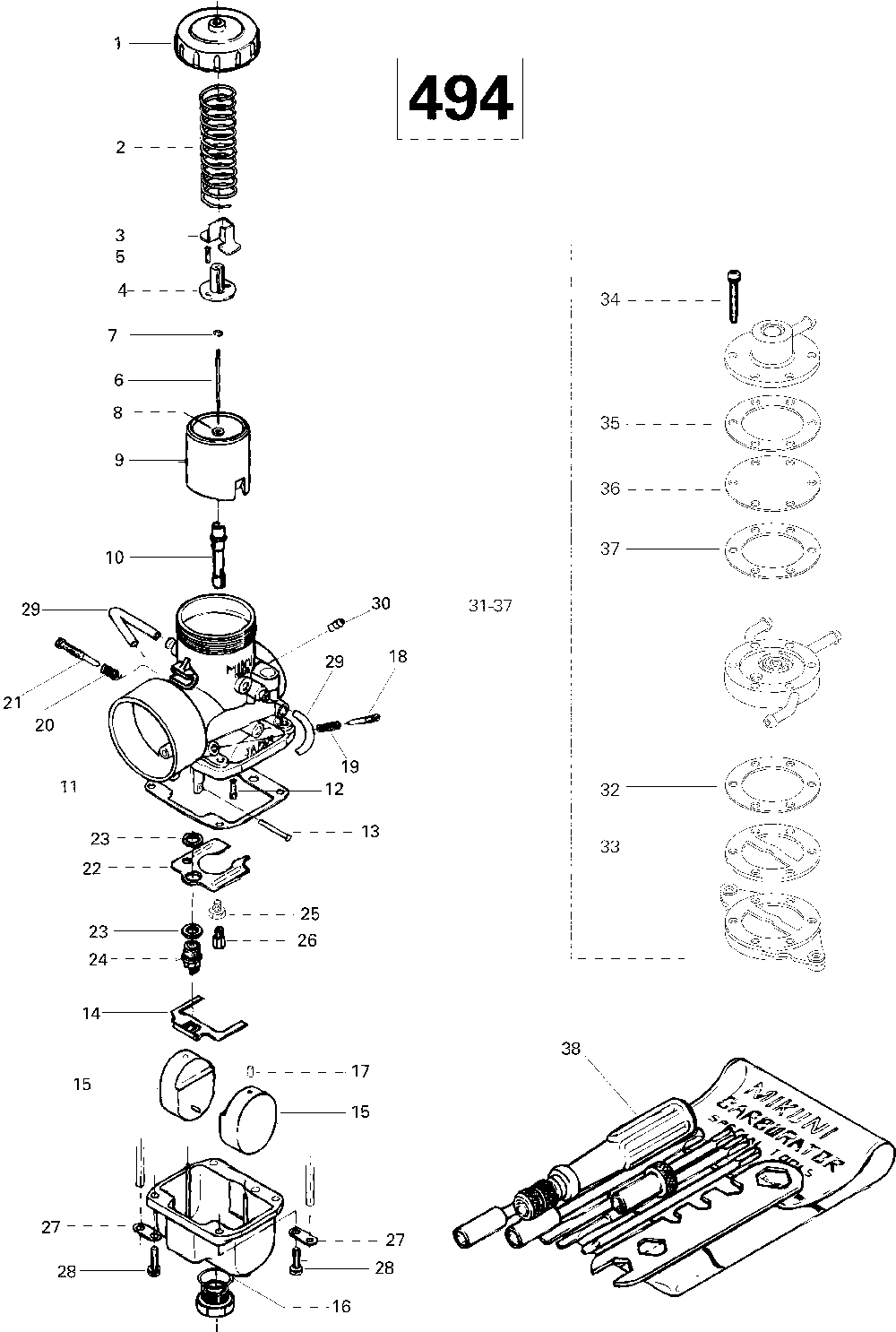

02- carburetor 500

Ski-Doo (Bombardier) Grand Touring 500
Ski-Doo (Bombardier)
#oem кодцена
1
403123900
Carb.vm-38 *carb-vm-38 Includes 1 To 31
1
404105100
Крышка
2
404154800
Пружина
3
404122100
Крышка
4
404160800
Connecteur *connector
5
404121300
Vis W.rondelle*screw-with Washer
6
404156800
Aiguille 6fey01*needle
7
404152400
Rondelle E *ring-e
8
404117000
Joint Tampon *packing
9
404131300
Tiroir Acc.2.5 *piston-val.2.5
10
404156900
Gicleur Aiguil.*jet Needle
11
404104700
Прокладка
12
404109400
Gicleur Ralenti*jet-pilot 45
13
404103300
Палец крепления рычага
14
404105000
Levier Flotteur*lever-float
15
404105400
Flotte *float
16
404101500
Шайба
17
404105800
Крышка
18
404149000
Vis Air *screw-air
19
404139800
Пружина
20
404101700
Пружина
21
404102800
Vis Ajustement*screw-idle Speed
23
404101600
Rondelle Siege *washer-seat
24
404147400
Pointeau Vs 1.5*valve Needle
25
404105500
Vis Guide *screw-guide
26
404101300
Gicleur Mj 320 *jet-main 320
27
404103000
Plaque *plate
28
404102000
Screw-w/lock *screw-w/lockwasher
29
404109800
Tuyau Aeration *tube-air Vent
30
404153400
Raccord *nipple
31
403900900
Pompe A Essence*pump-fuel Includes 31 To 37
32
404901900
Прокладка
33
404900000
Joint Tampon *packing
35
275500039
Joint Tampon *packing
36
404902000
Прокладка
37
404901500
Диафрагма
38
404112000
Комплект инструментов
35
404900400
Joint Tampon *packing
