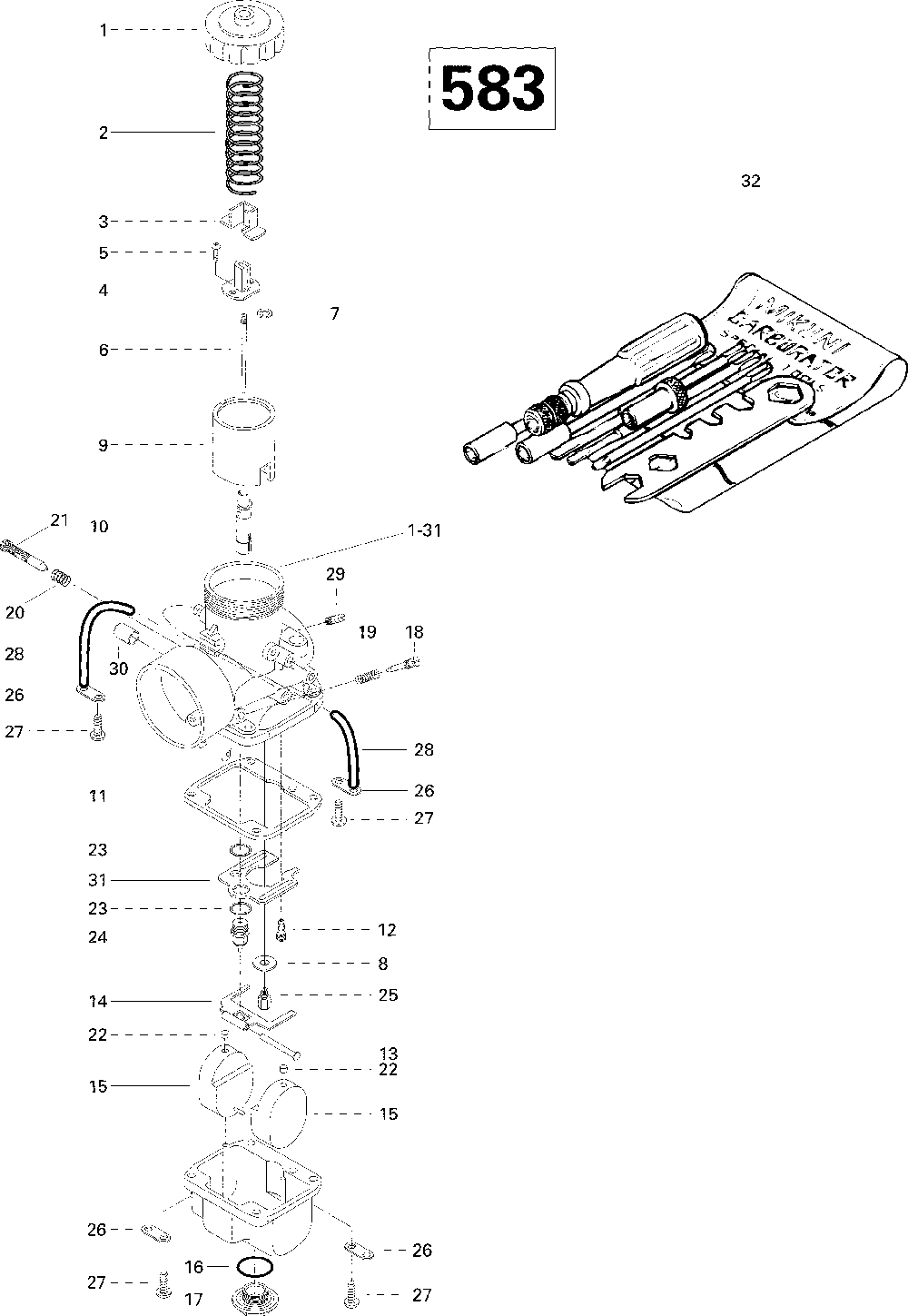

02- carburetor 583

Ski-Doo (Bombardier) MX Z 583
Ski-Doo (Bombardier)
#oem кодцена
1
403125400
Carb.vm-40 *carb-vm-40 Includes 1 To 31
1
403125500
Carb.vm-40 *carb-vm-40 Includes 1 To 31
1
404126800
Крышка
2
404156500
Пружина
3
404128100
Крышка
4
404160800
Connecteur *connector
5
404121300
Vis W.rondelle*screw-with Washer
6
404157400
Aiguille *needle
7
404152200
Rondelle E *ring-e
8
404116700
Шайба
9
404132300
Tiroir Acc.2.5 *piston-val.2.5
10
404148300
Gicleur Aiguil.*jet Needle
11
404104700
Прокладка
12
404109400
Gicleur Ralenti*jet-pilot 45
13
404103300
Палец крепления рычага
14
404105000
Levier Flotteur*lever-float
15
404105400
Flotte *float
16
404112800
Шайба
17
404112900
Vis Bouchon *screw-drain Plug
18
404149000
Vis Air *screw-air
19
404139800
Пружина
20
404101700
Пружина
21
404125200
Vis Etrangleur*screw-throttle
22
404105800
Крышка
23
404101600
Rondelle Siege *washer-seat
24
404147400
Pointeau Vs 1.5*valve Needle
25
404100400
Gicleur Mj 270 *jet-main 270
25
404100600
Gicleur Mj 260 *jet-main 260
26
404103000
Plaque *plate
27
404102000
Screw-w/lock *screw-w/lockwasher
28
404109800
Tuyau Aeration *tube-air Vent
29
404153400
Raccord *nipple
30
270500095
Capuchon Obtur.*cap-closure
31
404112700
Chicane *baffle Plate
32
404112000
Комплект инструментов
