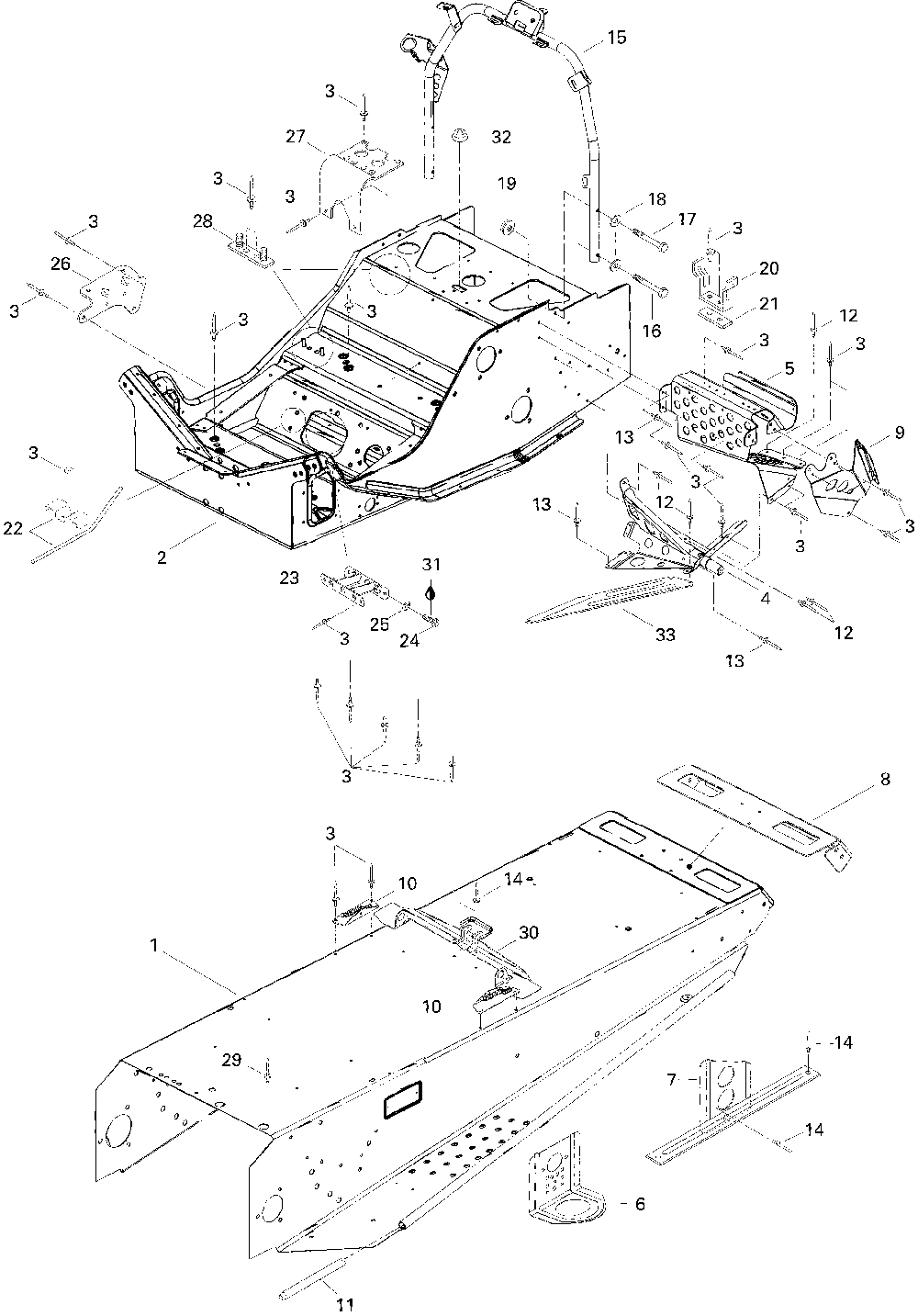

09- frame and components 583

Ski-Doo (Bombardier) MX Z 583
Ski-Doo (Bombardier)
#oem кодцена
1
518313252
Tunnel *frame-forming
2
518313049
Cadre Soude *member-front
3
390402200
Заклепка 3/16
4
518320507
Support Gauche *lh.support
4
518320506
Support Droit *rh.support
5
518313804
Repose-pied Dr.*footrest-rh
5
518313805
Repose-pied Ga.*footrest-lh
6
518321495
Attache Avant *bracket-front
8
518321301
Capuchon Arr. *cap-rear
9
518308727
Plaque Sup. Ga.*plate-upper Lh
9
518308728
Plaque Sup. Dr.*plate-upper Rh
10
518304747
Attache Droite *bracket-rh
10
518304748
Attache Gauche *bracket-lh
11
518304746
Renf.marche-pie*reinf.-foot.
12
390909200
Заклепка
13
390909100
Заклепка
14
390402400
Заклепка 3/16
15
518309200
Supp.guidon *supp-handle
16
207064044
Винт
17
207063544
Винт
18
234061410
Шайба
19
233261414
Гайка
20
518202100
Attache Gard.co*brkt-guard Belt
21
518207500
Renfort *reinforcement
22
518315100
Guide Corde Sou*guide-rope Weld.
23
518304741
Plaque Renf.sou*plate-reinf.weld
24
207182044
Винт
25
234181401
Шайба
26
518322635
Support Silenc.*support-muffler
27
518310400
Supp.silenc.adm*supp-air Intake
28
518315300
Plaque Supp.sou*plate-supp.weld
29
390402300
Заклепка 3/16
30
518310208
Attache Siege *bracket-seat
31
293800005
Смазка Loctite 271
32
414859400
Крышка
33
518316709
Plaque Renf.dr.*plate-reinf.rh
33
518321959
Plaque Renf.ga.*plate-reinf.lh
