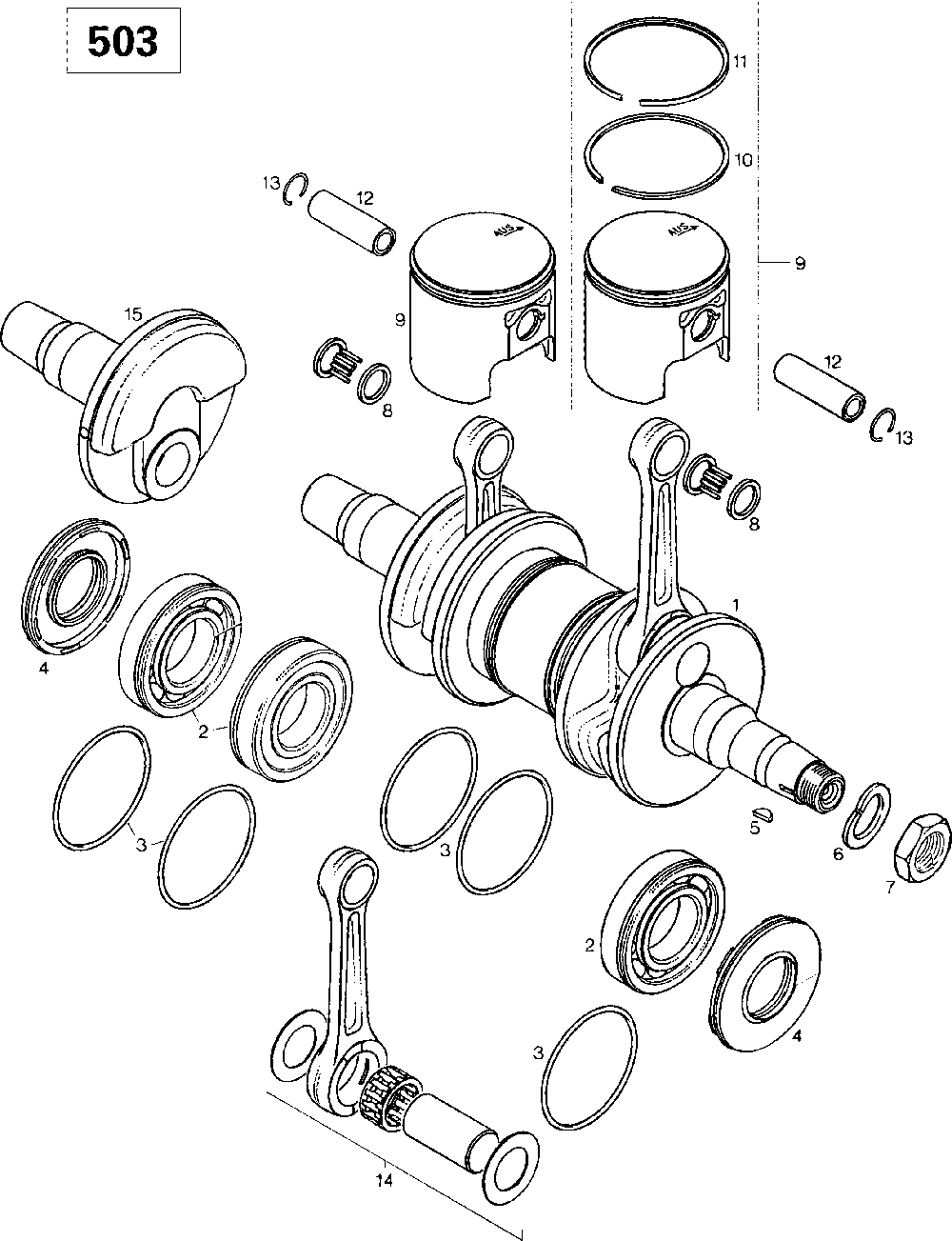

01- crankshaft and pistons 503

Ski-Doo (Bombardier) Touring SLE

01- crankshaft and pistons 503

#

oem код

название

цена

2

Подшипник

Подшипник

3

Кольцо

Кольцо

4

Сальник

Сальник

5

Шпонка

Шпонка

6

Шайба

Шайба

7

Гайка m22 X 1, 5

Гайка m22 X 1, 5

8

Сепаратор

Сепаратор

9

Piston 71.91 *piston 71.91 Includes 9 To 11

Piston 71.91 *piston 71.91 Includes 9 To 11

9

Piston 72.16 *piston 72.16 Includes 9 To 11

Piston 72.16 *piston 72.16 Includes 9 To 11

9

Piston 72.41 *piston 72.41 Includes 9 To 11

Piston 72.41 *piston 72.41 Includes 9 To 11

10

Segment R 72.0 *ring-r 72.0

Segment R 72.0 *ring-r 72.0

10

Segment R 72.25*ring-r 72.25

Segment R 72.25*ring-r 72.25

10

Segment R 72.5 *ring-r 72.5

Segment R 72.5 *ring-r 72.5

11

Segment L 72.25*ring-l 72.25

Segment L 72.25*ring-l 72.25

11

Segment L 72.5 *ring-l 72.5

Segment L 72.5 *ring-l 72.5

12

Axe De Piston *pin-gudgeon

Axe De Piston *pin-gudgeon

13

Стопор

Стопор

14

Шатун-комплект

Шатун-комплект

15

Demi-vileb.pto *half-crank Pto

Demi-vileb.pto *half-crank Pto

11

Segment L 72.0 *ring-l 72.0

Segment L 72.0 *ring-l 72.0

7

Гайка M22x1, 5

Гайка M22x1, 5
