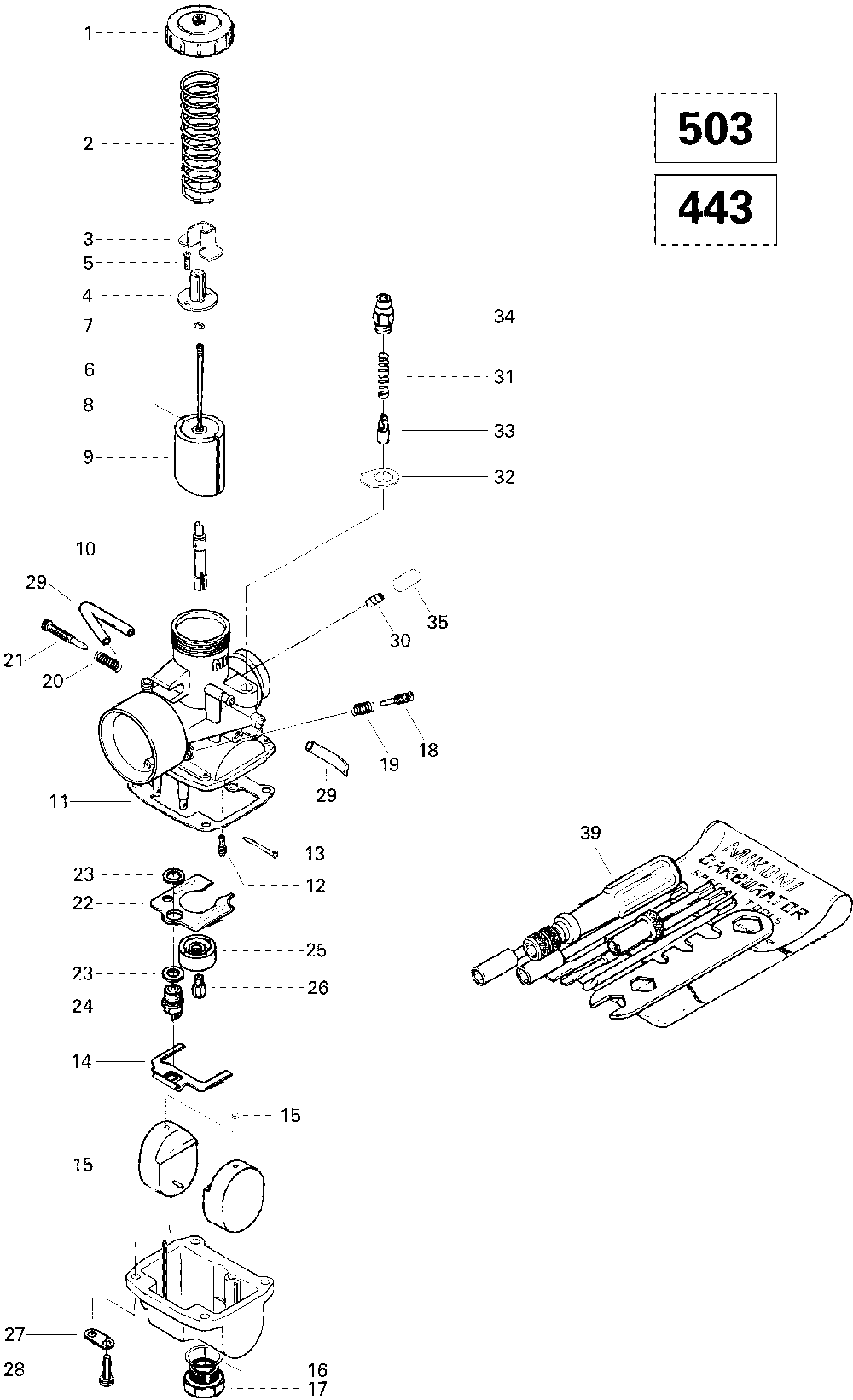

02- carburetor 503

Ski-Doo (Bombardier) Touring SLE
Ski-Doo (Bombardier)
#oem кодцена
1
403123600
Carb.vm-34 Pto *carb-vm-34 Pto Includes 1 To 35
1
403123700
Carb.vm-34 Mag *carb-vm-34 Mag Includes 1 To 35
1
404103700
Крышка
2
404154800
Пружина
3
404122100
Крышка
4
404160800
Connecteur *connector
5
404121300
Vis W.rondelle*screw-with Washer
6
404110400
Aiguille 6dh02 *needle
7
404152400
Rondelle E *ring-e
8
404117000
Joint Tampon *packing
9
404128400
Tiroir Acc.2.5 *piston-val.2.5
10
404107000
Gicleur Aiguil.*jet Needle
11
404104200
Прокладка
12
404109100
Gicleur Ralenti*jet-pilot 40
13
404103300
Палец крепления рычага
14
404107600
Levier Flotteur*lever-float
15
404107100
Flotte *float
15
404105800
Крышка
16
404107300
Кольцо
17
404107400
Vis Bouchon *screw-drain Plug
18
404102300
Screw-air
19
404101800
Пружина
20
404101700
Пружина
21
404125200
Vis Etrangleur*screw-throttle
22
404109600
Chicane *baffle
23
404101600
Rondelle Siege *washer-seat
24
404103200
Pointeau Vs 1.5*valve-needle
25
404110900
Bague Chicane *ring-baffle
26
404119000
Gicleur Mj 190 *jet-main 190
26
404112200
Gicleur Mj 180 *jet-main 180
27
404103000
Plaque *plate
28
404102000
Screw-w/lock *screw-w/lockwasher
29
404109800
Tuyau Aeration *tube-air Vent
30
404153400
Raccord *nipple
31
404127400
Пружина
32
404156400
Пластина
33
404127500
Plongeur Ass *plunger-assy
34
404127200
Support Guide *support-guide
35
404156600
Крышка
36
404112000
Комплект инструментов
