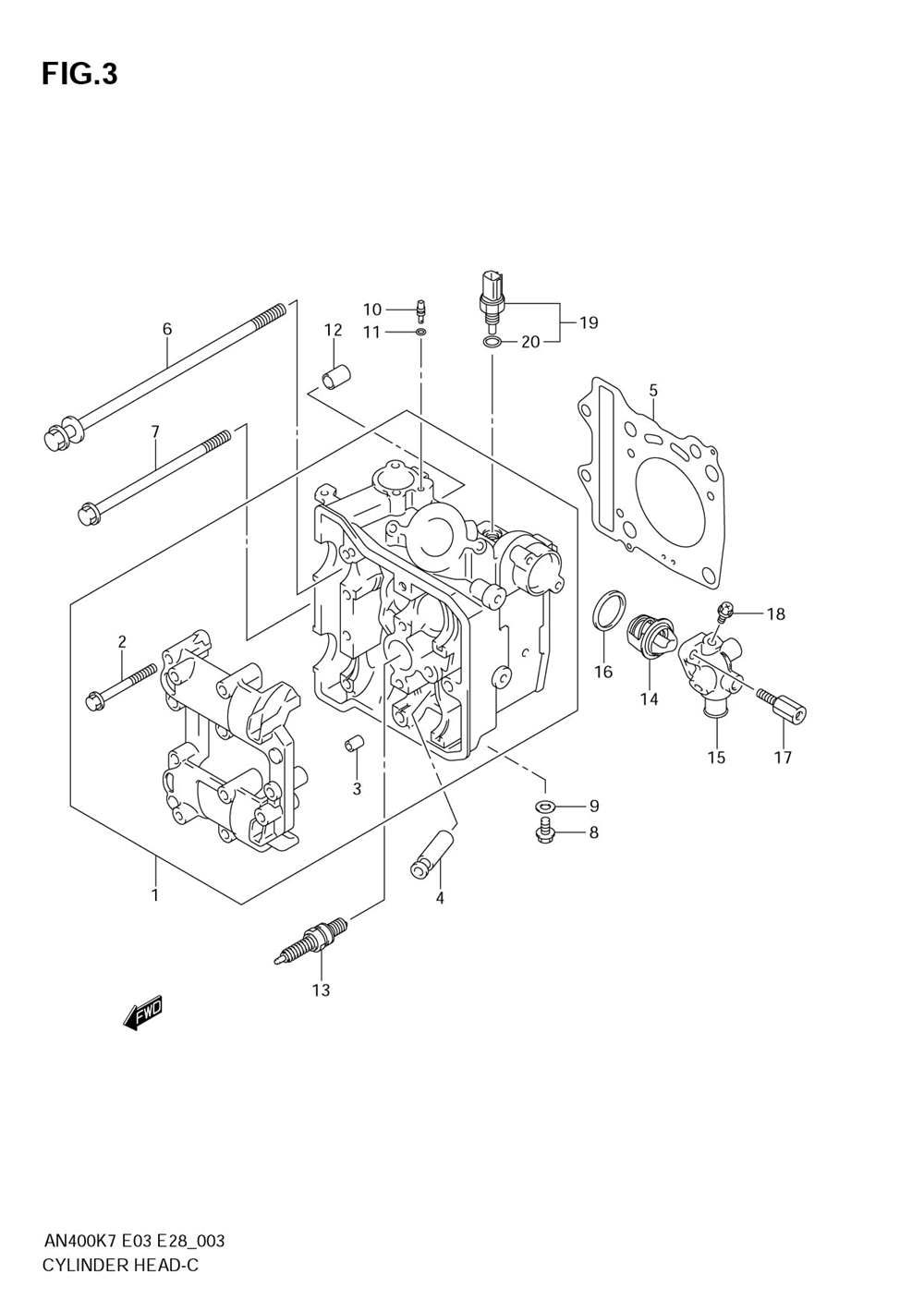

ГОЛОВКА ЦИЛИНДРА

Suzuki AN400 (Burgman)
Suzuki
#oem кодцена
1
11100-05H00
Head Assy, Cylinder ()
2
09103-06165
.bolt (6x45) ()
3
09206-08001
Pin ()
4
11115-32C71
Guide, Valve (os:0.3) (opt)
5
11141-05H00
Gasket, Cylinder Head ()
6
09103-08086
Bolt L:130 ()
7
11117-05H00
Bolt, Cylinder H ()
8
09103-06222
Bolt, Oil Gallery Exhaust ()
9
09168-06023
Washer, Oil Gallery Exhaust ()
10
09493-80005
Jet, Oil Gallery ()
11
09280-04004
O Ring, Oil Gallery Jet ()
12
04211-13189
Pin ()
13-1
09482-00516
Spark Plug (ngk, Cr7e) ()
13-2
09482-00515
Spark Plug (nd, U22esr-n) ()
13-3
09482-00456
Spark Plug (ngk, Cr8e) (opt)
13-4
09482-00457
Spark Plug (nd, U24esr-n) (opt)
13-5
09482-00458
Spark Plug (ngk, Cr9e) (opt)
13-6
09482-00459
Spark Plug (nd, U27esr-n) (opt)
14
17670-08D20
Thermostat, Water ()
16
09168-06026
Gasket, Drain Bolt ()
17
17667-21F00-A05
Болт
18
17568-50F00-A05
Bolt, Air Release ()
19
13650-14G00
Sensor, Water Temp ()
20
13655-14G00
.o Ring ()
