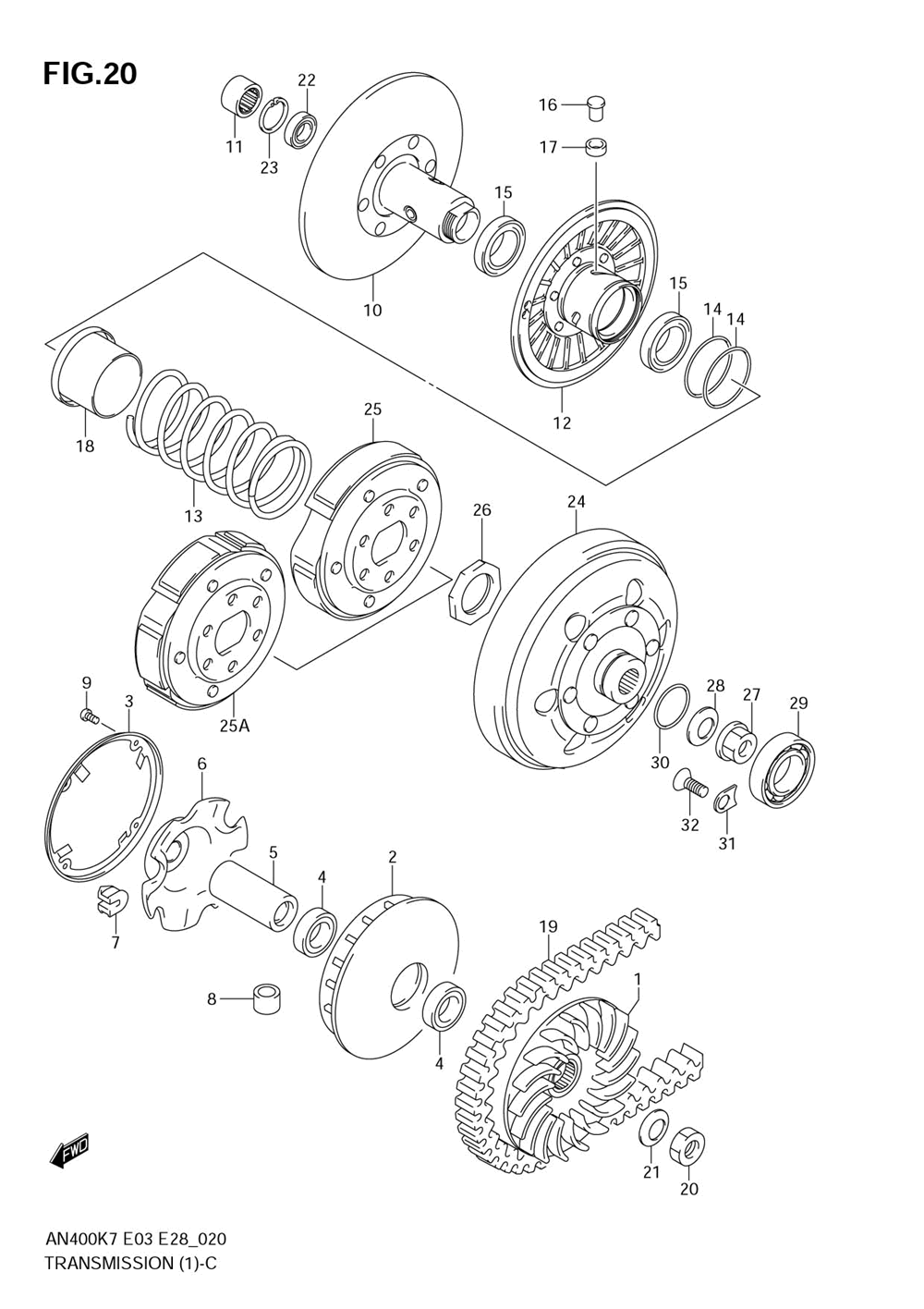

Трансмиссия 1

Suzuki AN400 (Burgman)

Трансмиссия 1

#

oem код

название

цена

1

Щека

Щека

2

Щека подвижная

Щека подвижная

3

Cover, Movable ()

Cover, Movable ()

4

Seal, Movable Drive ()

Seal, Movable Drive ()

5

Spacer, Movable Drive ()

Spacer, Movable Drive ()

6

Plate, Movable Drive ()

Plate, Movable Drive ()

7

Damper, Movable Drive Plate ()

Damper, Movable Drive Plate ()

8

Roller, Movable Drive ()

Roller, Movable Drive ()

9

Винт

Винт

10

Face, Fixed Driven ()

Face, Fixed Driven ()

11

Bearing, Fixed Driven, Rh ()

Bearing, Fixed Driven, Rh ()

12

Face, Movable Driven ()

Face, Movable Driven ()

13

Spring, Movable Driven ()

Spring, Movable Driven ()

14

O-ring, Movable Driven ()

O-ring, Movable Driven ()

15

Seal, Movable Driven Oil ()

Seal, Movable Driven Oil ()

16

Pin, Movable Driven ()

Pin, Movable Driven ()

17

Spacer, Movable Driven Pin ()

Spacer, Movable Driven Pin ()

18

Sheet, Movable Driven ()

Sheet, Movable Driven ()

19

V Belt, Drive ()

V Belt, Drive ()

20

Гайка

Гайка

21

Шайба

Шайба

22

Bearing ()

Bearing ()

23

Circlip ()

Circlip ()

24

Housing, Clutch ()

Housing, Clutch ()

25

Clutch Assy, Sho (model K7)

Clutch Assy, Sho (model K7)

25A

Clutch Assy, Sh (model K8)

Clutch Assy, Sh (model K8)

26

Nut, Shoe Clutch ()

Nut, Shoe Clutch ()

27

Nut, Clutch Housing ()

Nut, Clutch Housing ()

28

Washer, Clutch Housing ()

Washer, Clutch Housing ()

29

Bearing, Clutch Housing (35x62x14)

Bearing, Clutch Housing (35x62x14)

30

O Ring (dd:2.0, Id:31) ()

O Ring (dd:2.0, Id:31) ()

31

Retainer, Idle Shaft, Lh ()

Retainer, Idle Shaft, Lh ()

32

Винт

Винт
