Приборная панель Оригинальные запчасти для скутеров Suzuki AN650 (Burgman) (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

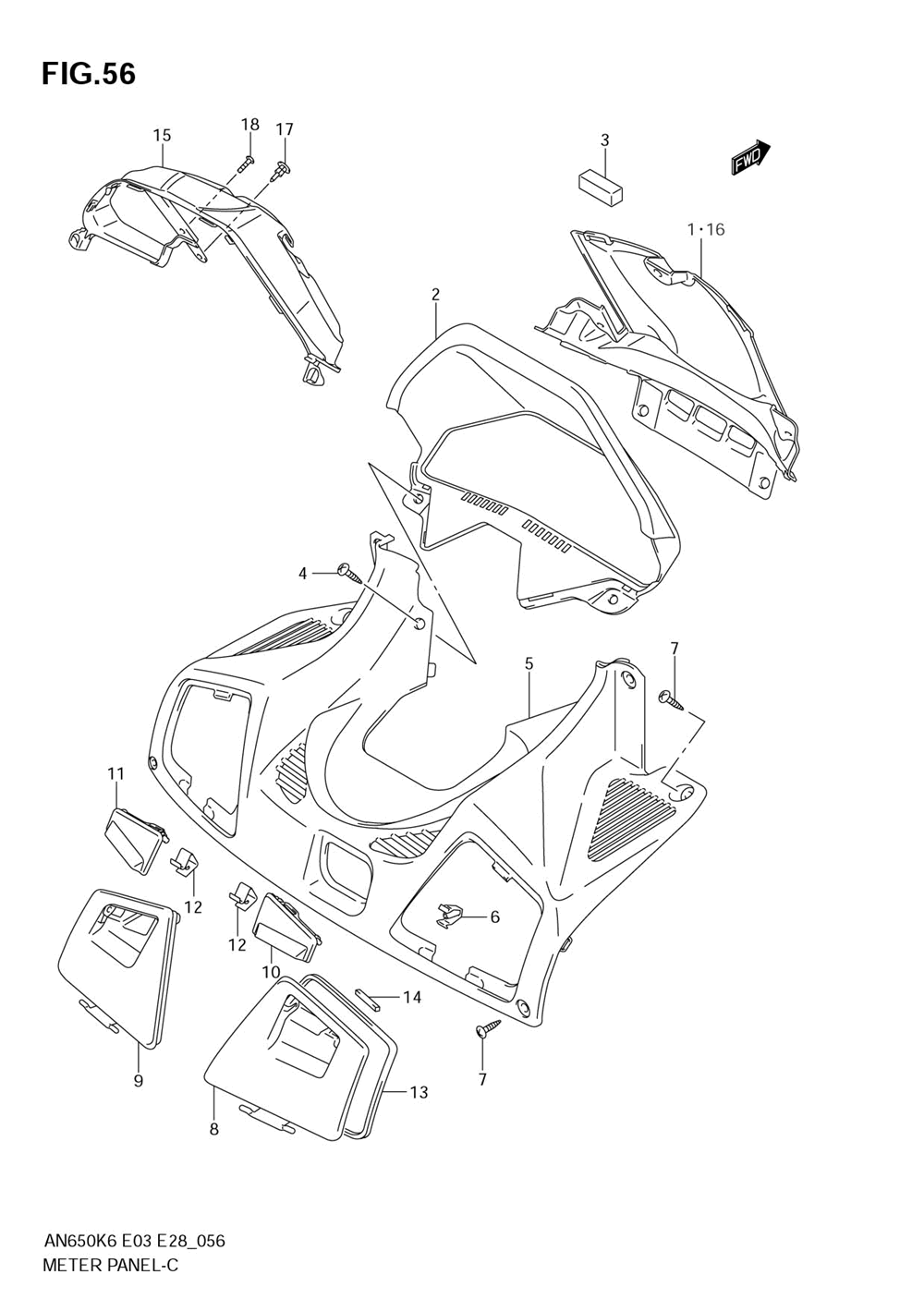

Приборная панель

Suzuki AN650 (Burgman)

Приборная панель

#

oem код

название

цена

1

94421-10G01-Y0J

Panel, Meter Front (gray) (an650)

Panel, Meter Front (gray) (an650)

2

94420-10G00-Y0J

Panel, Meter Rear (gray) ()

Panel, Meter Rear (gray) ()

3

.cushion ()

.cushion ()

4

Screw, Rear Panel ()

Screw, Rear Panel ()

5

94671-10G00-Y0J

Panel, Front Lower (gray) ()

Panel, Front Lower (gray) ()

6

Clip ()

Clip ()

7

Screw, Cover ()

Screw, Cover ()

8

92140-10G10-Y0J

Lid, Front Panel Rh (gray) ()

Lid, Front Panel Rh (gray) ()

9

92150-10G10-Y0J

Lid, Front Panel Lh (gray) ()

Lid, Front Panel Lh (gray) ()

10

92143-10G10-Y0J

.lock, Panel Rh (gray) ()

.lock, Panel Rh (gray) ()

11

92153-10G10-Y0J

.lock, Panel Lh (gray) ()

.lock, Panel Lh (gray) ()

12

.spring, Lid ()

.spring, Lid ()

13

.cushion ()

.cushion ()

15

94421-10GA0-Y0J

Panel, Meter Front Upper (an650a)

Panel, Meter Front Upper (an650a)

16

94424-10GA0-Y0J

Panel, Meter Front Lower (an650a)

Panel, Meter Front Lower (an650a)

17

09409-08308-5ES

Clip (black) (an650a)

Clip (black) (an650a)

18

Screw (an650a)

Screw (an650a)
